HAULER RACKS, INC.
7109 31

st

Avenue North

Minneapolis, MN 55427-2848
WWW.HAULERRACKS.COM

Toll Free: 1-800-843-5445

Phone: 763-546-5620

Fax: 763-546-0933

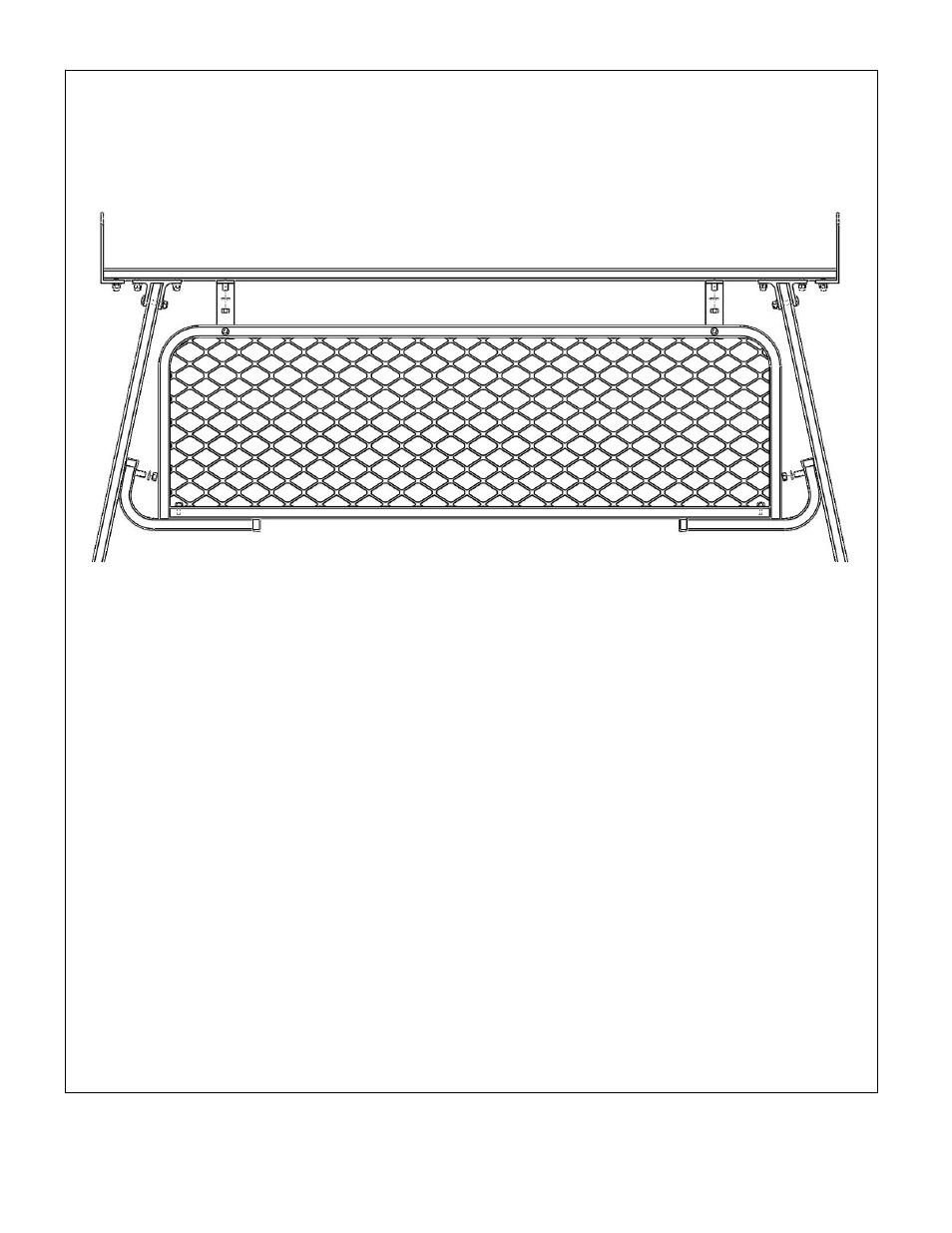

5. Headknocker Accessory Rack final installation


Slide the (2) 3/8”-16 x 1” hex bolts in the crossbar so they line up with the (2) screen ‘L’ bracket holes and loosely secure with 3/8” split lock
washers and 3/8”-16 hex nuts.

Position the 3/8”-16 x 2-1/2” bolt installed in the leg so that it lines up with the side mounting hole on the lower screen brace. Slide the lower
screen brace onto the 3/8”-16 x 2-1/2” and secure with a 3/8” split lock washer and 3/8”-16 nut. Leave the nut loose. Repeat for other leg.

Center the Headknocker Accessory rack between the legs. Use a tape measure for best results.



Continue around the rack and tighten all remaining nuts and bolts securely. Tighten until lock washers are flat but DO NOT
OVERTIGHTEN!
