HAULER RACKS, INC. Page 4 of 6 Toll Free: 1-800-843-5445
7109 31
st Avenue North Phone: 763-546-5620
Minneapolis, MN 55427-2848 Fax: 763-546-0933
WWW.HAULERRACKS.COM

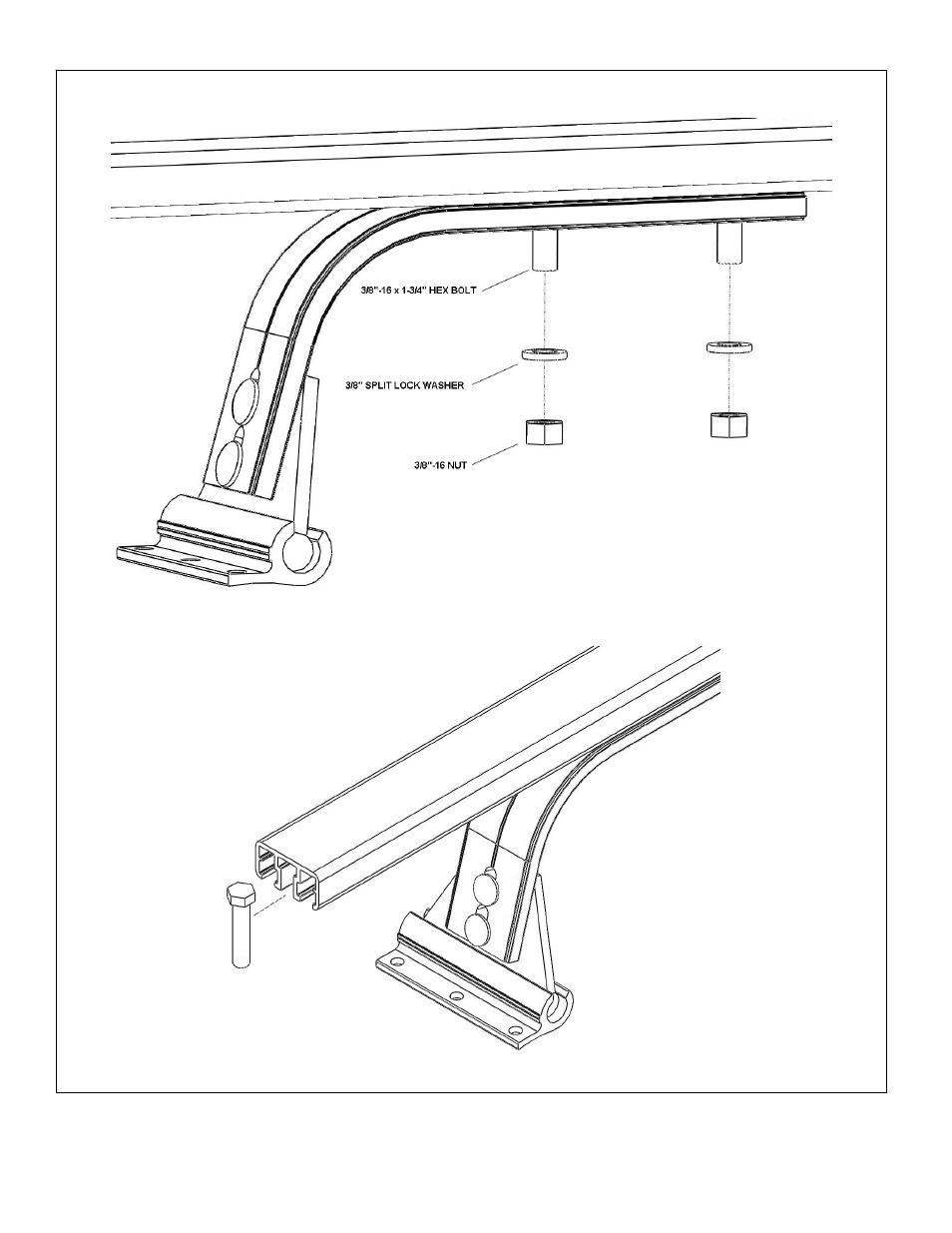

6. Loosely attach the “G” mount assembly to the crossbar using (2) 3/8” split lock washers and (2) 3/8”-16 nuts. Repeat for other end.
7. Attach the labeled end load secure posts to the cross bar end by sliding a 3/8”-16 x 1-3/4” bolts into the center channel of the cross bar on each
end.
