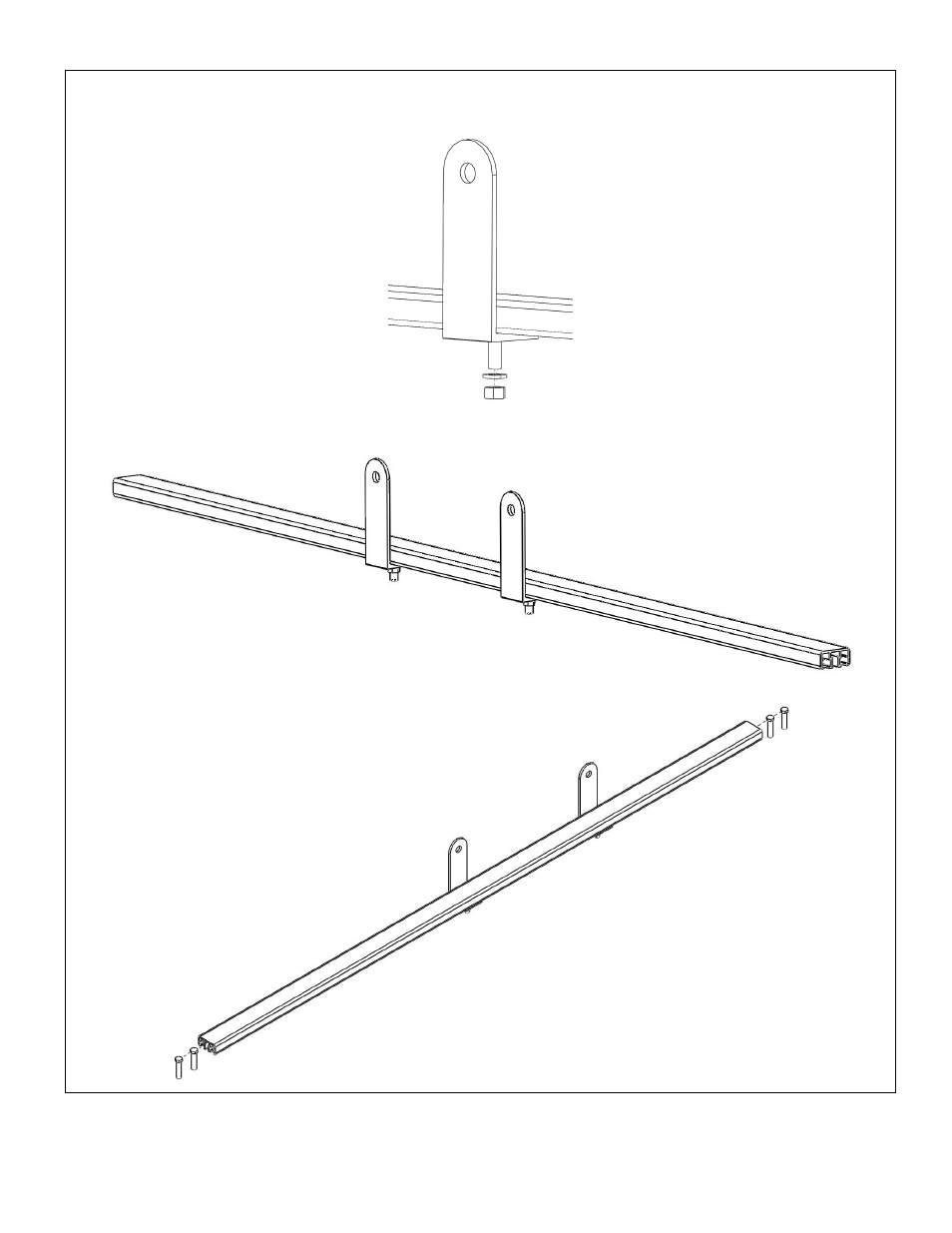

3. Mount the non-labeled load secure posts to the crossbar so that the flat of the load secure post is against the side of the cross bar.
Secure with 3/8” split lock washer and 3/8”-16 nut. Repeat for other non-labeled load secure post.
4. Slide the non-labeled load secure posts towards the center of crossbar.
5. Slide (2) 3/8”-16 x 1-3/4” bolts into the center channel of the cross bar on each end.
