5. Rack assembly

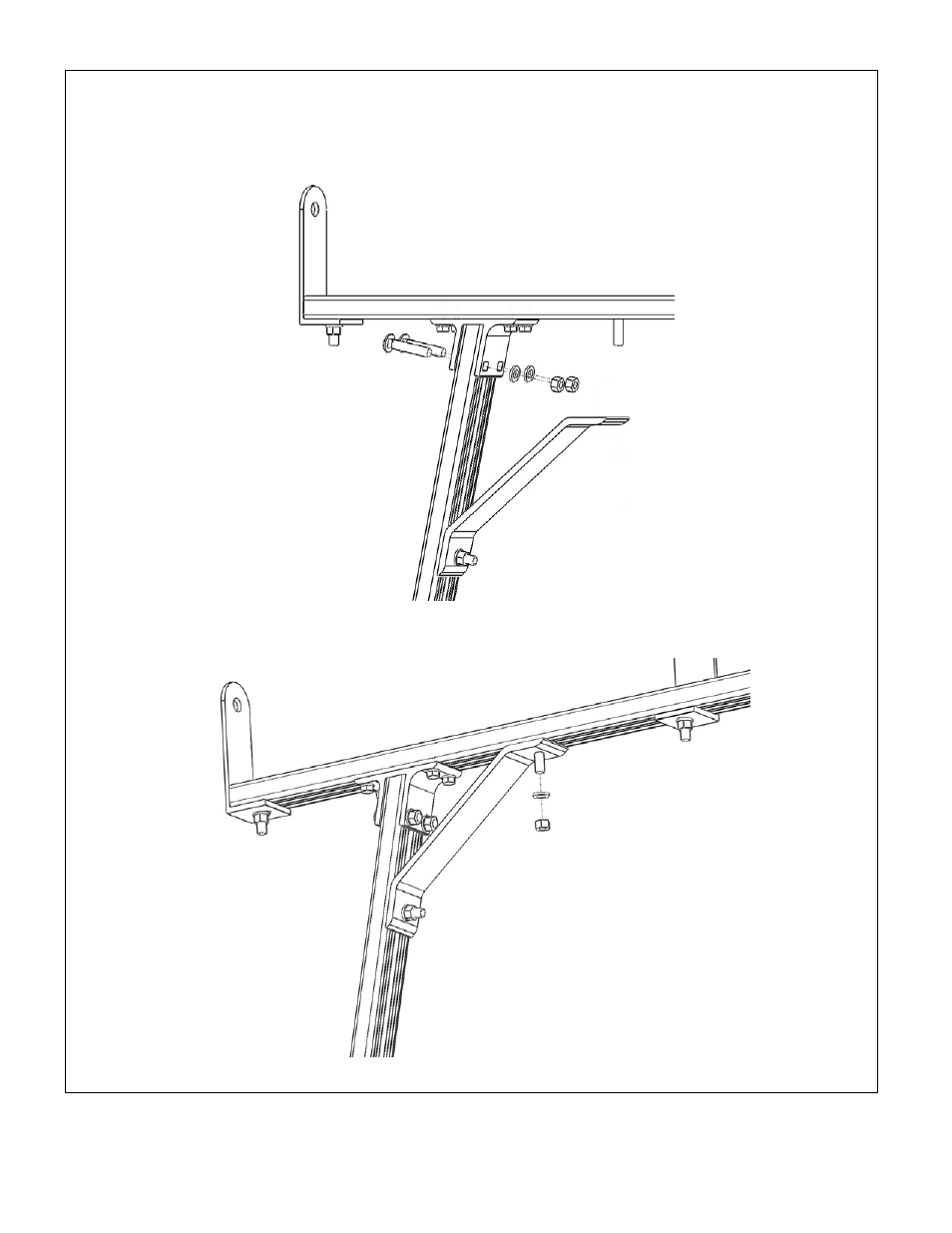

Slide the leg into the “T” bracket.
Join the leg to the “T” bracket by installing (2) 3/8”-16 x 2” carriage bolts, (2) 3/8” split lock washers and (2) 3/8”-16 nuts. Leave the bolts
loose. Repeat for other legs.
Slide the HD brace along the leg towards the load bar. Align the 3/8”-16 x 1-3/4” bolt in the load bar with the top bolt hole on the HD brace.
Loosely secure the HD brace with a 3/8”-16 nut and a 3/8” split lock washer. Repeat for other legs.
