Fairbanks Aegis Industrial Stainless - Manual (Page 13)

• Use the drawing in Appendix
III for measurements, concrete specifications and
amounts.
• Make sure the conduit for the scale cable is in place and secured into the frame
opening.
• Pour the concrete around and under the frame ensuring a smooth and level finish.
• If a drain is required, form the pit to provide a slope in the pit floor to the drain.
Refer to the drawings in the Appendix.
• Cure to a minimum of 2000 psi before cutting wire.
• Pull the cable through the conduit before placing the scale platform in the frame.
• Level the platform before installing the instrumentation.
51103 13 01/07 -- Rev. 1

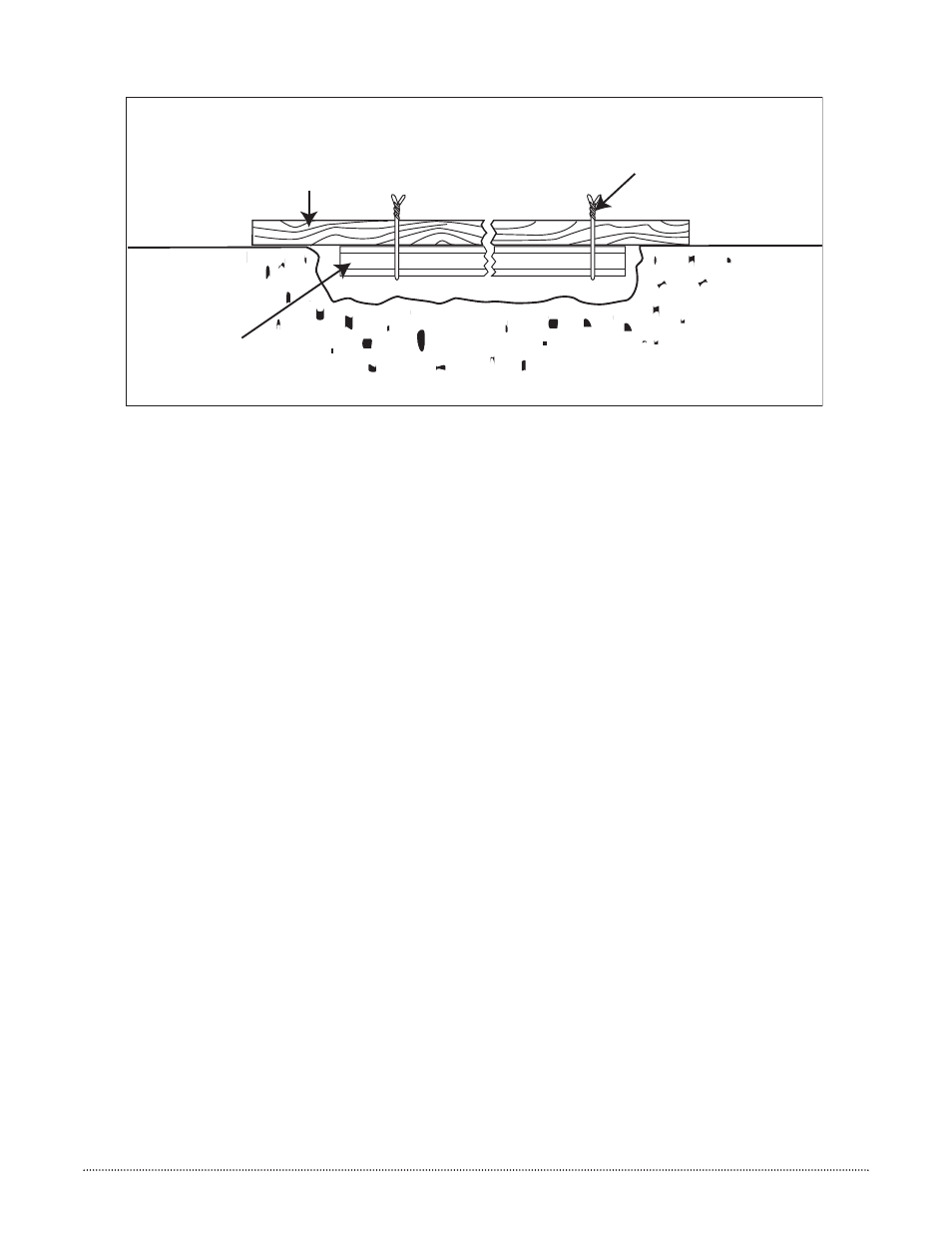

Pit
Frame
Assy
2 x 4
Wire
50604-2
