Chapter 4 Power Software Configuration tool Setting up Communications
38 Multi-Mon Multiple Circuit Energy Monitor

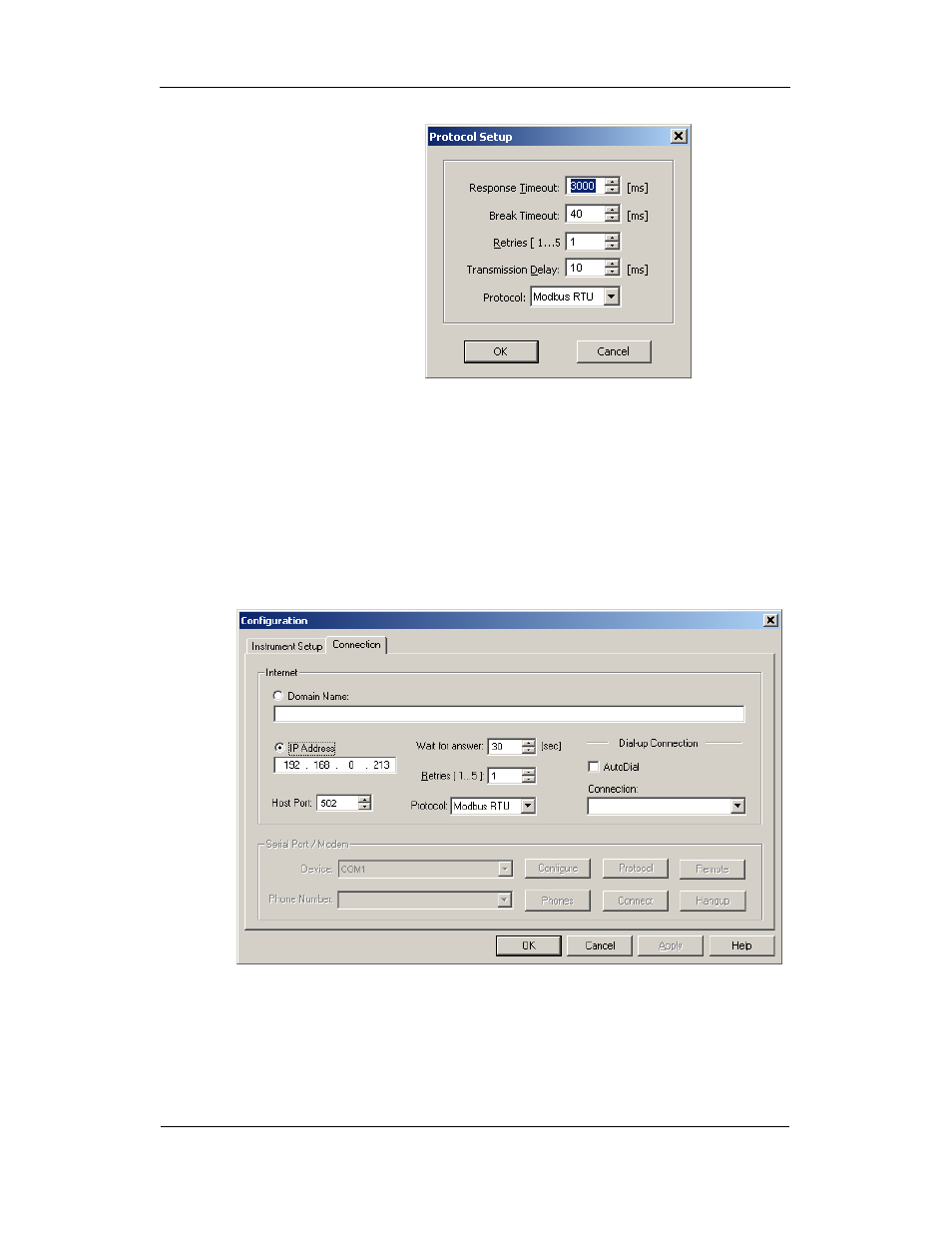

2. In the Protocol box, select the same communications protocol as you
have in your Multi-Mon . The default protocol setting in the Multi-Mon for
all ports is Modbus RTU.
For more information on configuring the protocol parameters, refer to the
Power Software Getting Started guide.
Communicating through the Internet Communicating through the Internet Communicating through the Internet Communicating through the Internet
If you are communicating via the Ethernet, define the IP address of your
Multi-Mon on the network.
1. On the Instrument Setup tab, select Internet Site.
2. Click on the Connection tab.
3. Click IP address and type in the IP address of your Multi-Mon . The
factory-set IP address is 192.168.0.203.
4. In the Protocol box, select Modbus RTU. The default host port 502 is set
automatically as you select the protocol.
5. In the Wait for answer box, adjust the time that Power Software will wait
for a connection before announcing an error and the number of retries
Power Software will use to receive a response from the device if
communications fail.
