5-9 Programming, Optional Features
Press number keys
8 1 followed by
ENT
Phase Mark Registration: Option “-P” (continued)
CHN 80 - Auto-Center Registration
The gap between the output 14 and 15 pulses (registration
OK area) can be automatically centered around the current
machine position by accessing CHN 80. This allows the
correct registration phase to be set up in a single operation.
1. Move the machine (jog or move by hand) to the exact
position where the registration mark should be detected
by the sensor.
2 Access CHN 80 to center the current registration windows
around the current machine position (machine should be
stopped).
3. Display will show "SEt" after CHN 80 is entered to
confirm that the centering operation has been
accomplished.
Energizing the hardware Center Input causes the control to
perform the same operation as CHN 80.
CHN 80 or the hardware Center Input will not function
if outputs 14 and 15 do not each have a pulse
programmed.

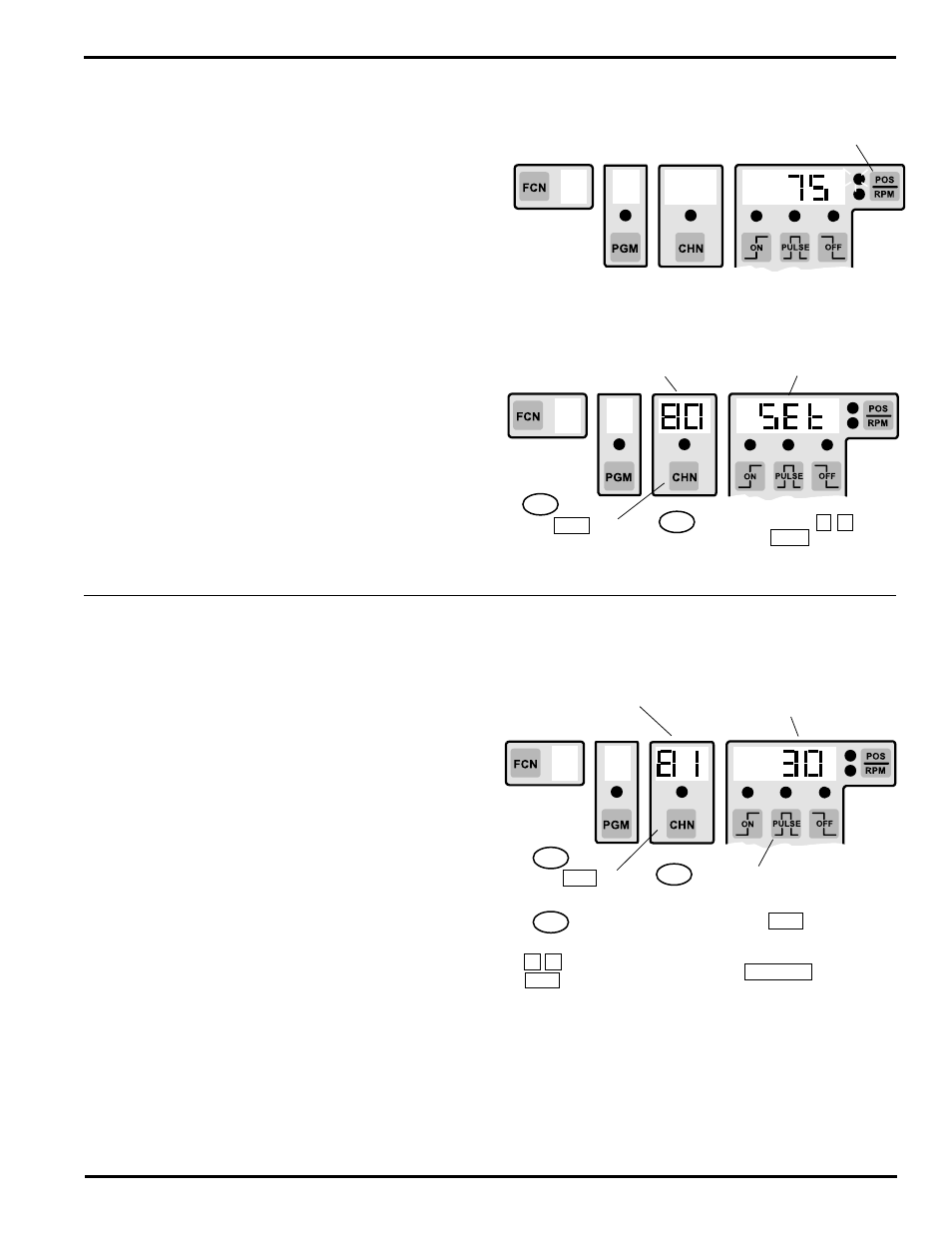

Jog machine to position where
Registration mark should be sensed.
Press POS/RPM key until POS LED
is lit to view machine position
Access CHN 80 to center registration
around current machine position.
CHN 80 Displayed
"SEt" displayed to confirm
registration change made
Press CHN key
1st
2nd Press number keys 8 0
followed by ENT to set
registration center position
CHN 81 - Display Adjust Registration Center
The center of the gap between the output 14 and 15 pulses
(registration OK area) can be monitored and/or changed
through CHN 81. Each time CHN 81 is accessed, its value
is calculated from the current output 14 and 15 pulses.
Therefore, CHN 81 can be a unique value within each
program and is not a global value. For this reason, CHN 81
is not part of the PLuSNET ASCII file used to store, edit and
load the control’s programmed contents through serial
communication.
Changes can be made by entering the new center position
through the keyboard, eliminating the need to move the
machine to a specific position.
1 Access CHN 81 to view the current registration center
position value.
2. Key in the new desired center position and press “Enter”
to change it; or Press “INC/DEC” keys to make one step
changes to the center position. Each time the Increase
or Decrease inputs are energized, the display will show
the new registration center position (CHN 81) for 2
seconds. If no change is desired, press “POS/RPM” to
return to the Position or RPM display, or access other
programming operations in the normal manner.
CHN 81 will not function if outputs 14 and 15 do not each
have a pulse programmed.
Access CHN 81 to view / change
current registration center position
Current registration center
position shown CHN 81 Displayed
Press CHN key
1st
2nd
To change registration center
position PRESS number keys
of desired center position
followed by ENT
OR
PRESS INC / DEC keys to make
1 step changes to center value
3rd
(Option “-P” continued next page)
Note: Substitute channels 7 & 8
for 14 & 15 on 9 output units.
