Extra Program Storage: Option “-F” (continued)

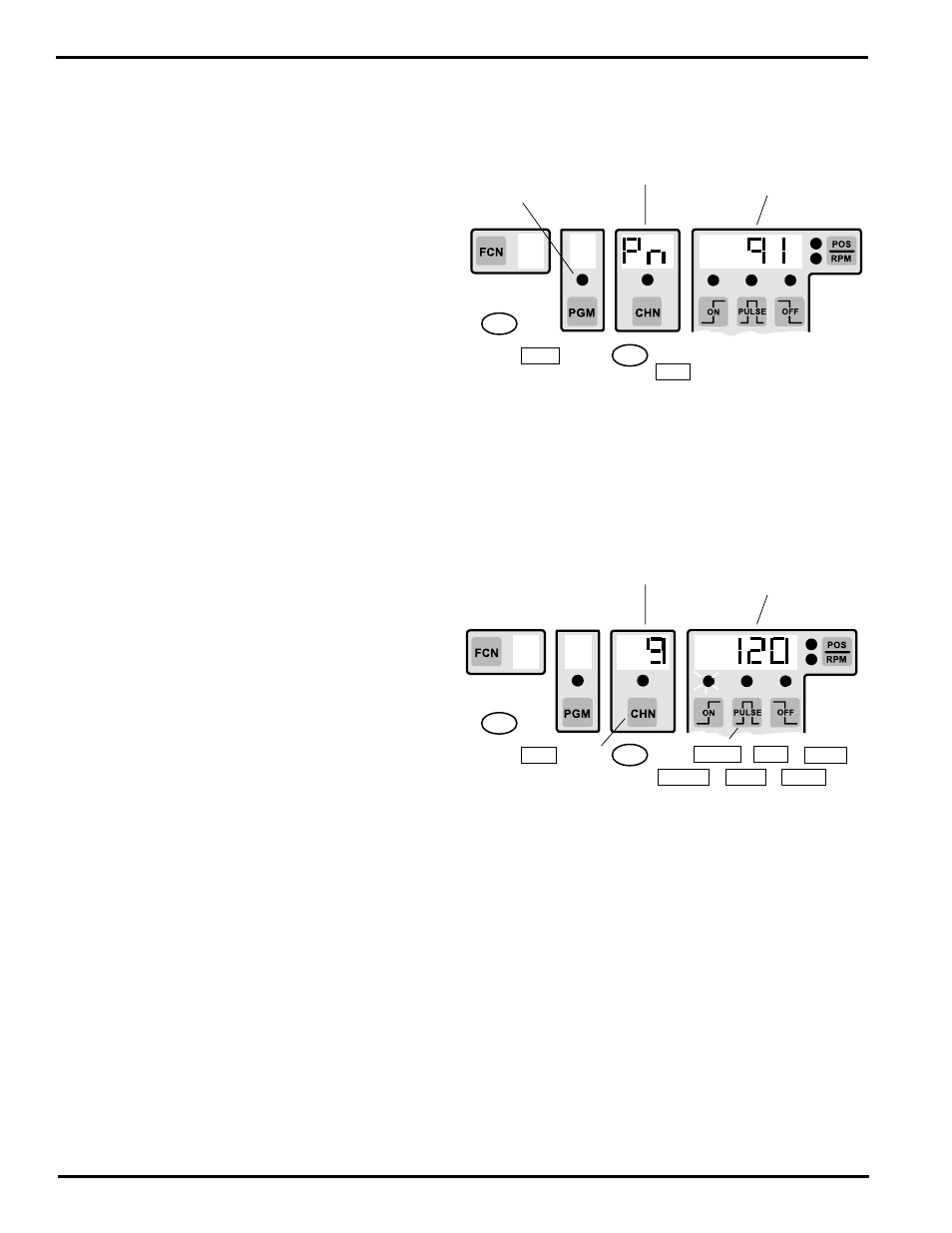

Select Inactive Program Number to be
Viewed/Edited
Press PGM key Press number keys followed by
ENT to select desired inactive
program # (1-992 are valid
program numbers) 2nd
1st
PGM LED off when
inactive program
selected
Pn shown Selected program #
shown
Select Channel to be Viewed/Edited
Press CHN key
and number keys of
desired channel Use VIEW , ON , OFF ,
PULSE , INC , DEC
and number keys to View/Edit
output setpoint data
2nd
1st
Selected
channel #
shown
Output setpoint data
shown for selected
program and channel
number
Viewing/Editing Inactive Program
Any inactive program can be viewed or edited from the
PLuS keyboard while the current active program controls
the machine.
Pressing the PGM key will select any inactive program for
viewing or editing. Press the number keys of the desired
program number followed by ENT to select the desired
inactive program. This program number will be shown in the
setpoint display area to the right of “Pn” in the channel
display (the PGM LED will be off while inactive programs
are selected).
Specify which channel, within the selected program, will be
viewed/edited by pressing the CHN key followed by the
desired channel number and ENT (the Pn display will be
replaced by the selected channel number and corresponding
output setpoint information).
To exit the selected inactive program and return to normal
active program displays press the POS/RPM key.
