3-15 Wiring
STAINLESS STEEL RESOLVER

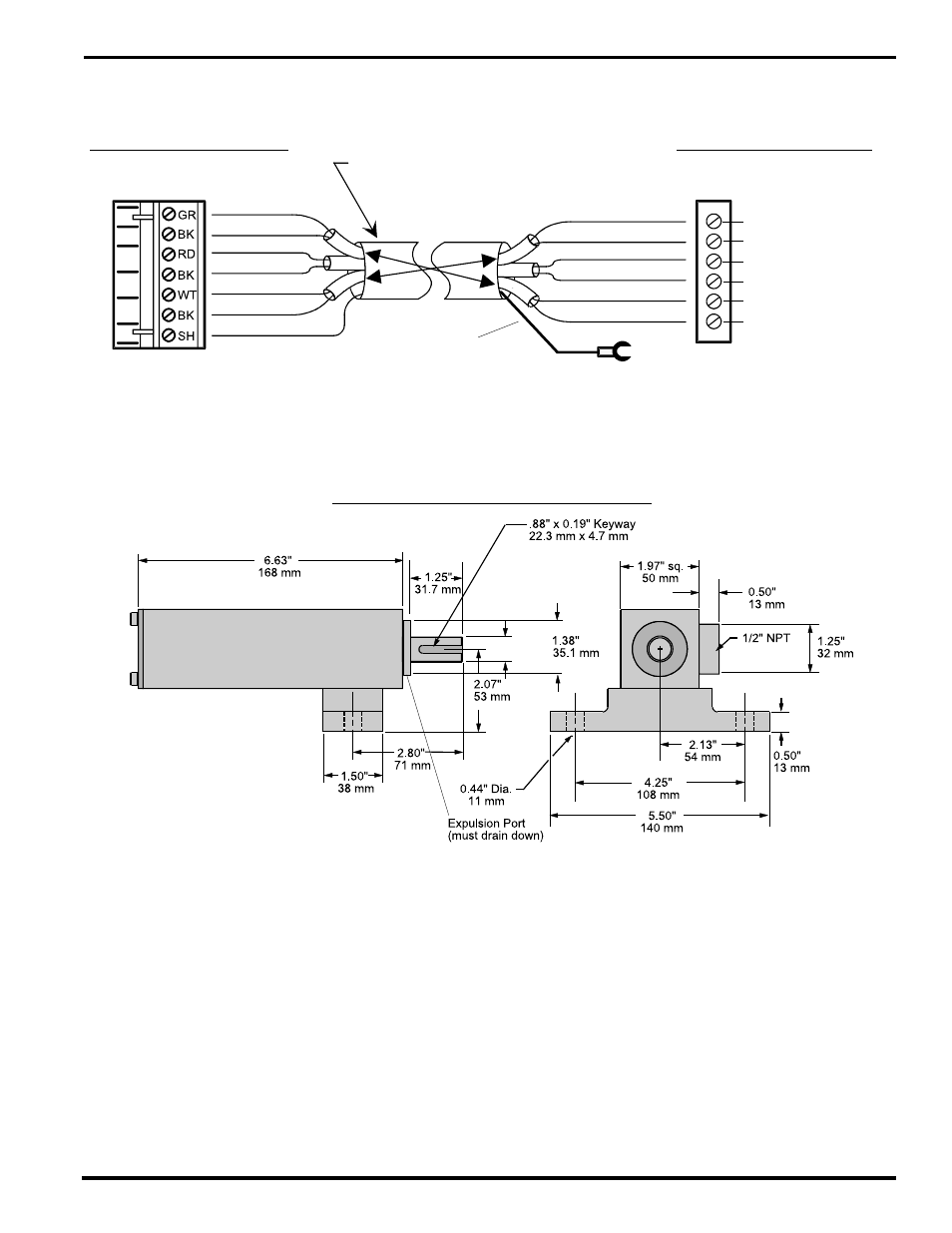

Cable for Stainless Steel Resolver with Terminal Strip Connections
PT# PS-5300-02-XXX (XXX = Length in Feet)
Connector - Controller End
PT# PS-5300-01-TER
(Weidmuller # BLA7 12822.6) Connector Inside Resolver
(cable is stripped and tinned at
both ends)
Cable Type:
3 individually shielded pairs, 22 guage
Shield
(see note below)
Shield
BLK (P/W) WHITE
WHITE
BLK (P/W) RED
RED
BLK (P/W) GREEN
GREEN
Red
Green
Black
Black
White
Black
Shield
White
Black
Black
Red
Black
Green
Shielding Note: This type of resolver cable will have a spade lug connected to the shield at the resolver end. The lug should
be attached to the grounding stud on the cover plate of the resolver. In some installations, it may be advisable to disconnect
the lug to prevent ground loops through the cable shield. Consult Electro Cam if electrical noise problems are suspected.
Resolver Wiring and Dimensions
Stainless Steel Foot Mount Resolver - 5/8" Shaft
.625/
.624" dia.
15.88/
15.85 mm
For horizontal applications
Horizontal Mount
(shown) PS-5262-11-CTG (with right connector)
PS-5262-11-CTL (with left connector)
Vertical Mount (Shaft Up)
PS-5262-11-CTG-V (with right connector)
PS-5262-11-CTL-V (with left connector)
Cable: PS-5300-02-XXX where “XXX” is length in feet.
