4-6 Programming, Standard Features
2nd
Press CHN key to
select rU 3rd Press PULSE key to select
desired update frequency.
1st If FCN 0
not shown press:
FCN 0 ENT
rU
rPM Update
selected

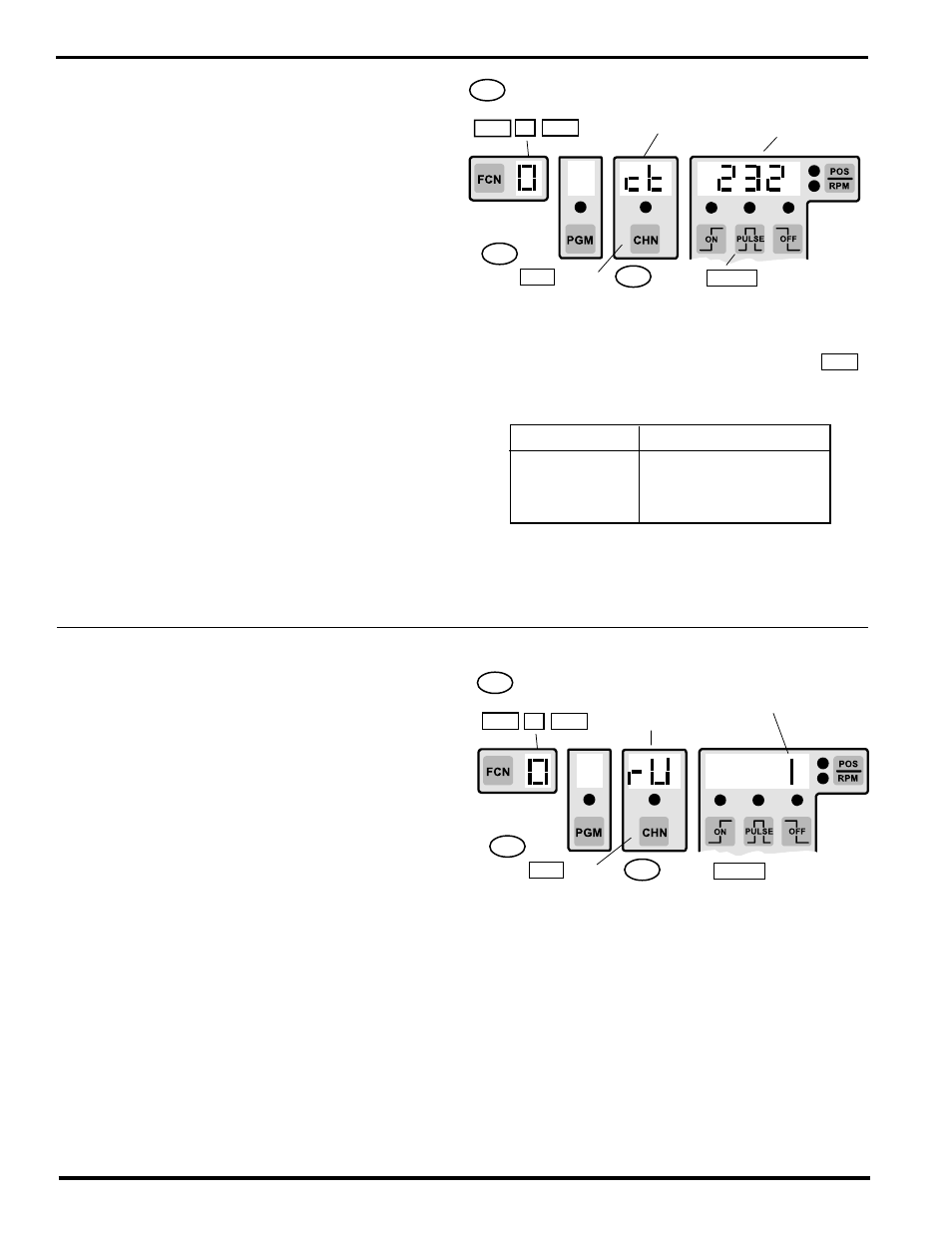

Viewing / Changing Program Banks
Present rPM Update
frequency shown
Comm Item Choices
ct (port type) RS-232, RS-485
cS (baud) 4800, 9600, 19200, 38400
cA (comm add) 0-255; 1 is default
2nd
Press CHN key
to choose ct, cS, or
cA 3rd Press PULSE key to select
desired option when ct or cS are
selected
When cA is selected press
number keys followed by ENT
to change comm address
1st If FCN 0
not shown press:
FCN 0 ENT
ct - comm type
cS - comm speed
cA - comm Address
Present value for
selected comm
item selected
Default settings are shown in bold face.
ct, cS, cA - Communication Parameters
ct - communication type: Specifies the type of
communication port being used by the PL
µ
S control. It
contains both an RS-232 and an RS-485 port. RS-485 is
the default setting. Both of these ports share the DB-9
connector located at the top of the power supply section.
The type of port being used on the PL
µ
S must match the
type of port being used by the device communicating with
the PL
µ
S.
cS - communication Speed: Specifies the baud rate (bits
per second) that the PL
µ
S communication port will operate
at. It must be set for the same baud rate as the device
communicating with the PL
µ
S control. The choices are:
4800, 9600, 19200, and 38400 baud. 9600 is the default
setting.
cA - communication Address: Each control can have
a unique communication address (0-255) because multiple
controls can be wired to the same host device in a RS-485
network. This allows the host to send information to a
specific control while the other controls will ignore the
information. A PL
µ
S control will ignore incoming information
if the address that information specifies does not match the
communication address of the control.
rU - rPM Display Update Frequency
This function determines the frequency with which the
display of RPM is updated.
1 Display updates RPM once per second
2 Display updates RPM twice per second
10 Display updates RPM ten times per second
NOTE: On units manufactured prior to date code 9740,
the Expanded Operator Access (-E) option was required
for rPM Display Update Frequency (rU).
NOTE: On units manufactured prior to date code 9740,
the Communications Parameters (-C) option was
required for communications features.
