3. OPERATION
3.1 UNIT LOCATION
The unit can be mounted in any orientation or position, however vertical mounting (unit above
process connection) should be made in process streams containing liquids or potentially
condensing gases
.
3.1.1 WARNING LABEL
Remove sensor tube warning label prior to using the unit.
3.2 MOUNTING
Mounting is achieved by securing the sensor tube into the supplied fitting directly in the
process piping as shown below. Optional mounting brackets that attach to the instrument
housing are also available.

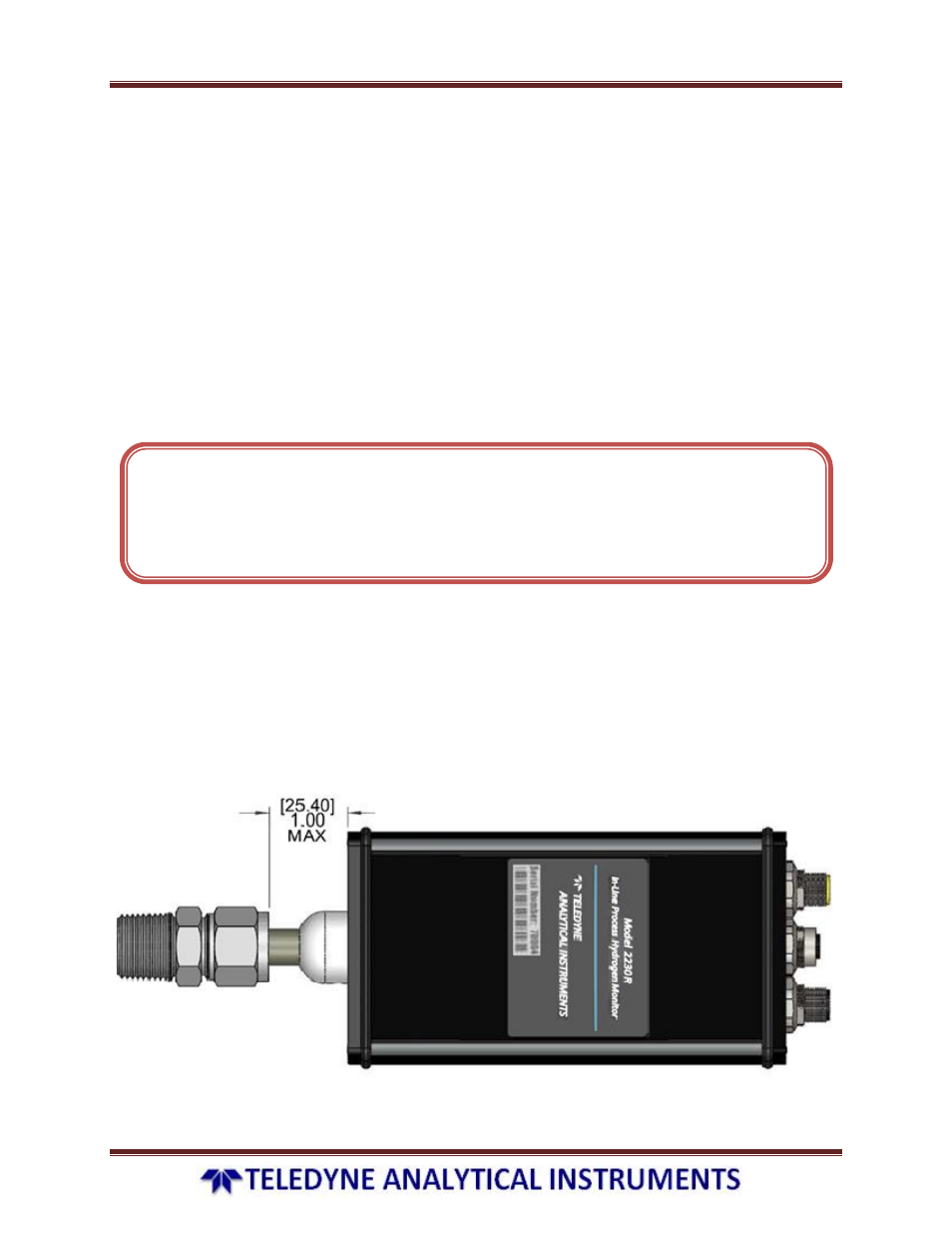

1.0 inches is the maximum distance that the fitting mount can be from the end plate of the
Model 2230R unit. This is referred to as the Ferrule Region of the long tube which has a wall
thickness of 0.065 in. Any distance exceeding 1.0 in. will be in the Sensor Assembly Region
where the tube wall thickness is only 0.038 in. Cinching down a fitting outside the Ferrule
Region and in the Sensor Assembly Region may result in permanent damage to the long tube
and the sensor assembly within.
WARNING: DO NOT CINCH DOWN OR TIGHTEN FERRULES OUTSIDE OF
THE FERRULE REGION OF THE LONG TUBE OR YOU WILL RISK
PERMANENTLY DAMAGING THE LONG TUBE AND SENSOR ASSEMBLY
WITHIN.
