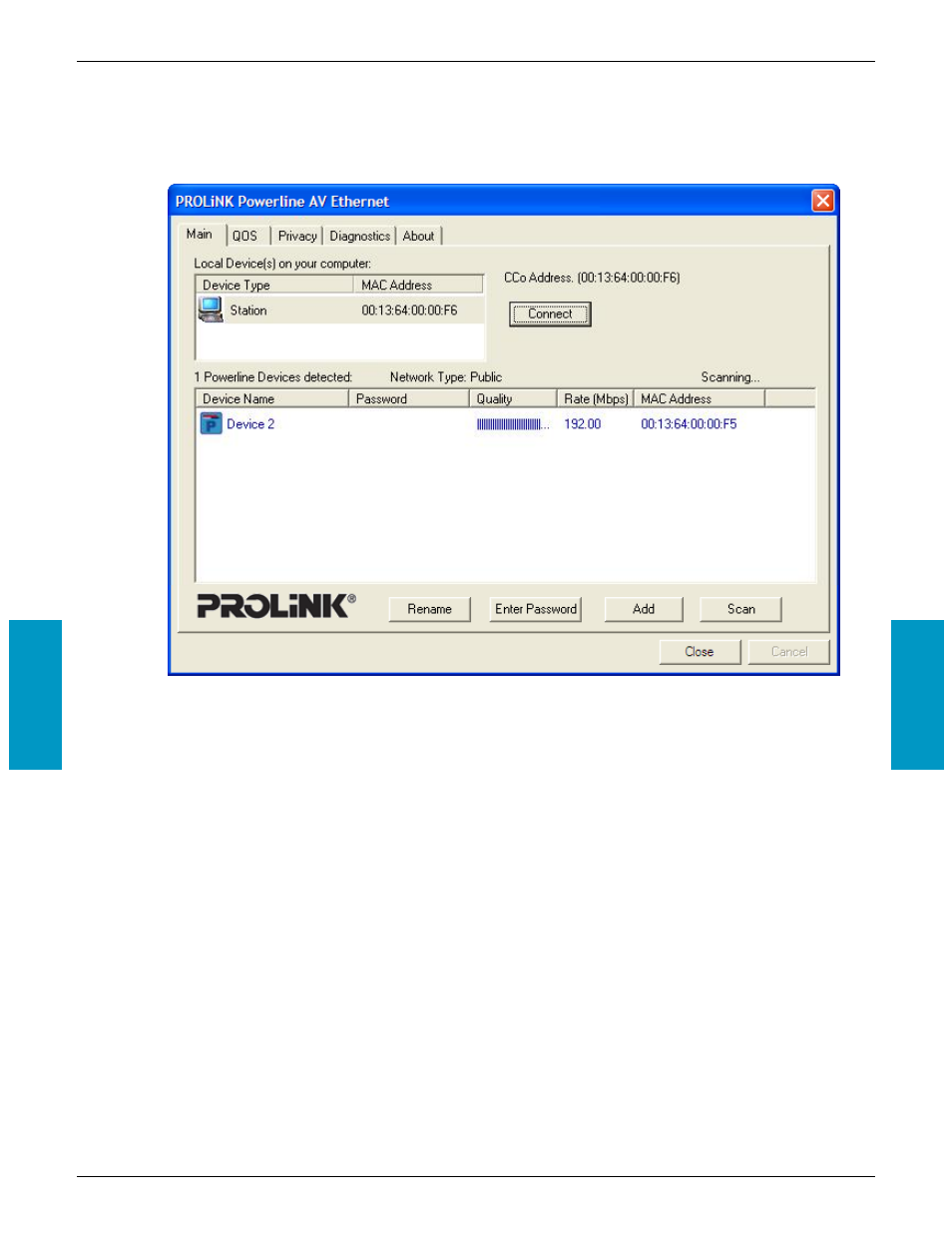

4.1 Main
The Main tab shows all the PROLiNK® PPL1201 Powerline AV Ethernet Adapter that is logically connected to
the current computer where the Management Utility is running.
•
Local Device(s) on your computer
This shows all local PROLiNK® PPL1201 Powerline AV Ethernet Adapter found connected to the
computer’s LAN card. In most cases, only one device will display in this panel. Click and select the local
device shown on the screen then click “Connect” tab to manage the PROLiNK® PPL1201 Powerline AV
Ethernet Adapter. The status message will be shown above the “Connect” button indicates that your PC
is connected to the same device. Once the chosen PROLiNK® PPL1201 Powerline AV Ethernet Adapter
is properly connected, this Management Utility will automatically scan the power line periodically for
any other existing powerline devices.
• Network Type
Displayed the type of logical network: “Public” or “Private”.
