2.4 Hardware Connection – Internet
This section describes how to connect the PROLiNK® PPL1201 Powerline AV Ethernet Adapter into your
existing ADSL broadband connection via ADSL Ethernet port. Follow the procedures describe below to
connect the PROLiNK® PPL1201 Powerline AV Ethernet Adapter to your ADSL broadband connection:
a. Power off your PC or Notebook.
b. Connect the provided Ethernet (RJ-45) cable to the PROLiNK® PPL1201 Powerline AV Ethernet
Adapter’s Ethernet port.
c. Connect the other end of the Ethernet (RJ-45) cable to an available Ethernet port of your ADSL
broadband Router.
d. Plug the PROLiNK® PPL1201 Powerline AV Ethernet Adapter into a wall socket next to the computer.
e. Turn on your computer.
f. Check and confirm that the Power, Powerline and Ethernet LEDs on the PROLiNK® PPL1201
Powerline AV Ethernet Adapter are ON.

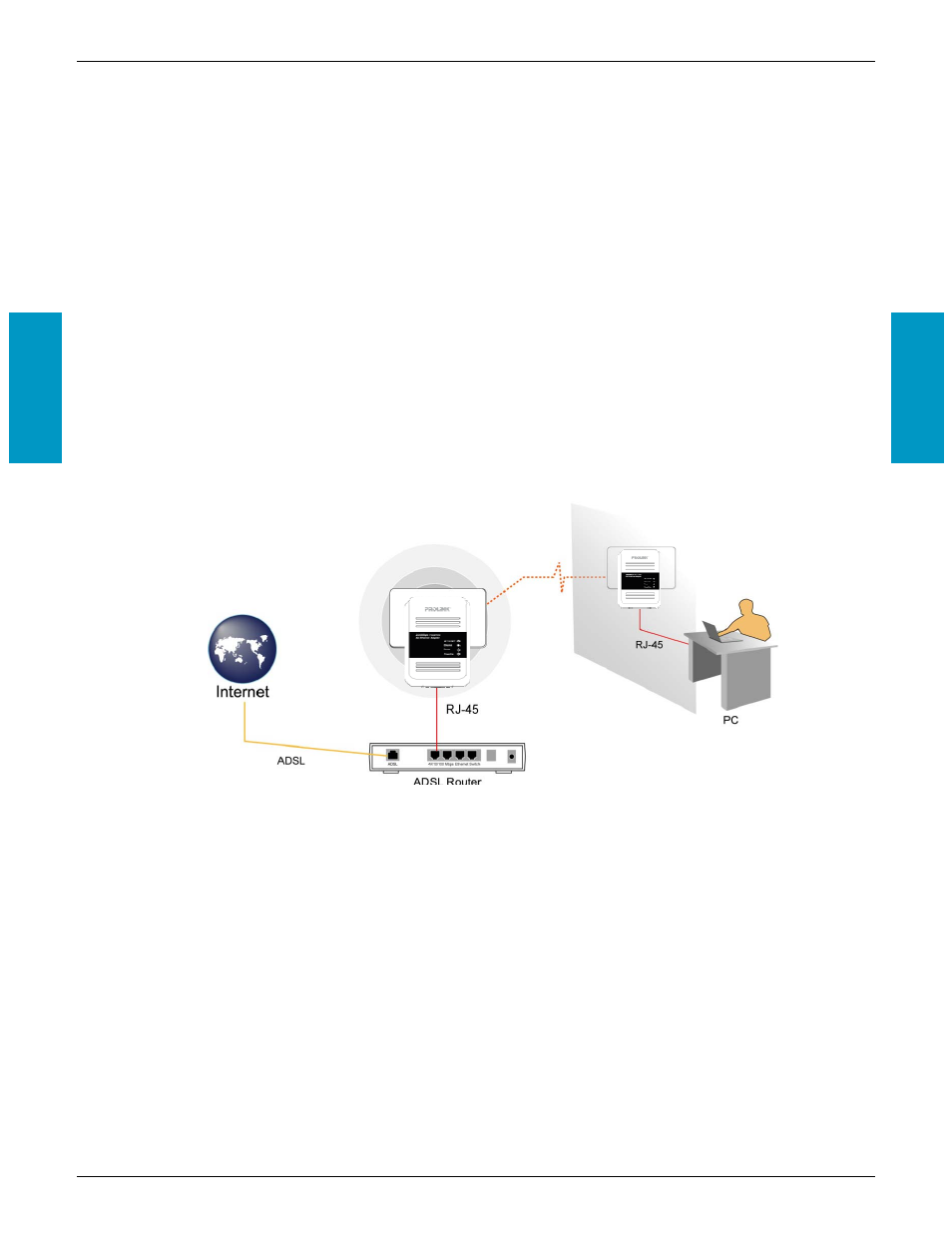

The hardware connection mechanism is shown below:
Remark:
Do not connect the Powerline adaptor to an extension lead, power strip, extension cord, surge protector as
this may degrade the network performance.
