4.1.3 Add Device

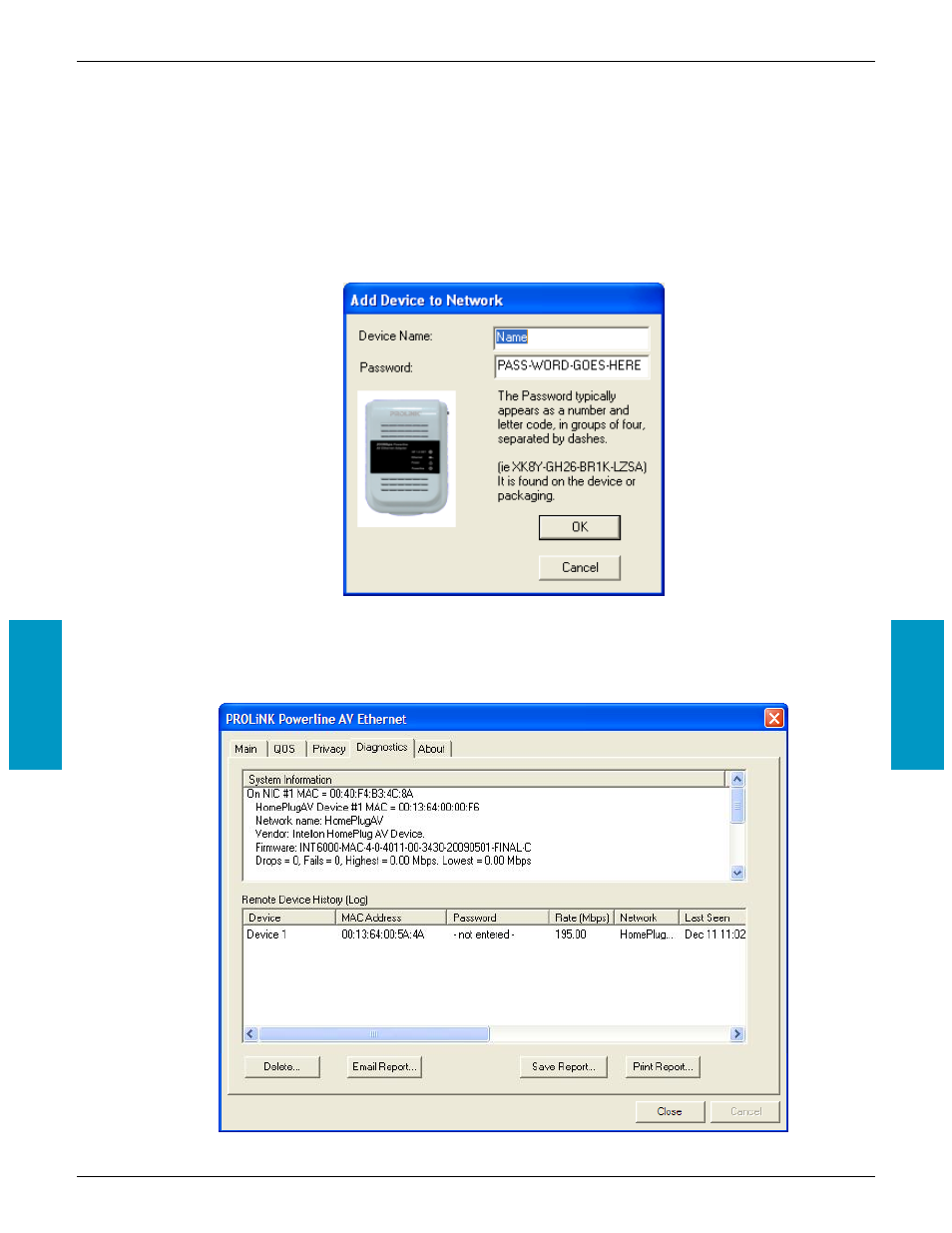

The following dialog box pop-up when clicking the “Add” button under Main configuration homepage. The
dialog box allows you to enter both the selected device’s name and password. Noted that the PROLiNK®
PPL1201 Powerline AV Ethernet Adapter must be present on the power grid in order to activate the set
password and added to the local network.
Enter your Device Name and Password (Take note to the password format) and click “OK” after setup.
The following screen display after the naming and password setting process, which is also the Diagnostics
configuration homepage.
