PROLiNK PHA-1068 User Manual
Pha-1068, Outdoor ap, repeater, point to multi-points

PHA-1068
Key Features
•
Industrial grade IP67 rugged cast aluminium casing
•
Up to 25 km range with External Antenna ++
•
Up to 108 Mbps (Turbo Mode)
•
500mW output power transmission
•
Bandwidth control with QoS VOIP and video
•
Web and SNMP management
•
Professional vehicle transceiver
Wireless Features
•
IEEE 802.11g compliant radio, up to 54Mbps
• Up to 108Mbps wireless data rate at turbo mode
•
RF Power Control. The transmit power can be adjusted
by software control between 100% to 12.5% of
maximum radio power
• Support seamless roaming within the same subnet
between Access Point (In repeater and client mode)
• Up to 250 association and 50 con-current users
• Support with or without wireless distribution system (WDS)
• Dual antenna diversity
Network (Internet and Intranet)
•
Protocol Filtering
Security and Access Control for Access Point Mode
•
Support static WLAN WEP up to 152 bits encryption
• MAC Address Control
• WPA with Radius Server for (EAP-TLS, EAP-TTLS) PEAP
(EAP-GTC)(In Access Point mode)
• WPA-PSK (AES and TKIP)
• Wireless to wireless user isolation
Management
•
Web-based management
• IP address discovery software (Viper Quick Start)
• Firmware upgradeable through web-server and telnet
Hardware
•
Antenna connectors: Two 50-Ohm N-type (Female)
• Chassis Type: IP67 Rating with Bracket for mounting
• Ethernet Port: 10/100 Base-T (RJ-45 connector) with auto
MDIX
Power Specification
•
Power adapter: 18~48V DC through RJ45
• Power Consumption: Typical 8.5 Watts, 9.0 Watts Max
Environment
•
Operating Ambient Temperature: -35ºC to 75ºC
• Relative Humidity when operational : 20~90% (non-
condensing)
• Storage Ambient Temperature: -35ºC to +90ºC
• Relative Humidity during storage: 95% Max (non-
condensing)

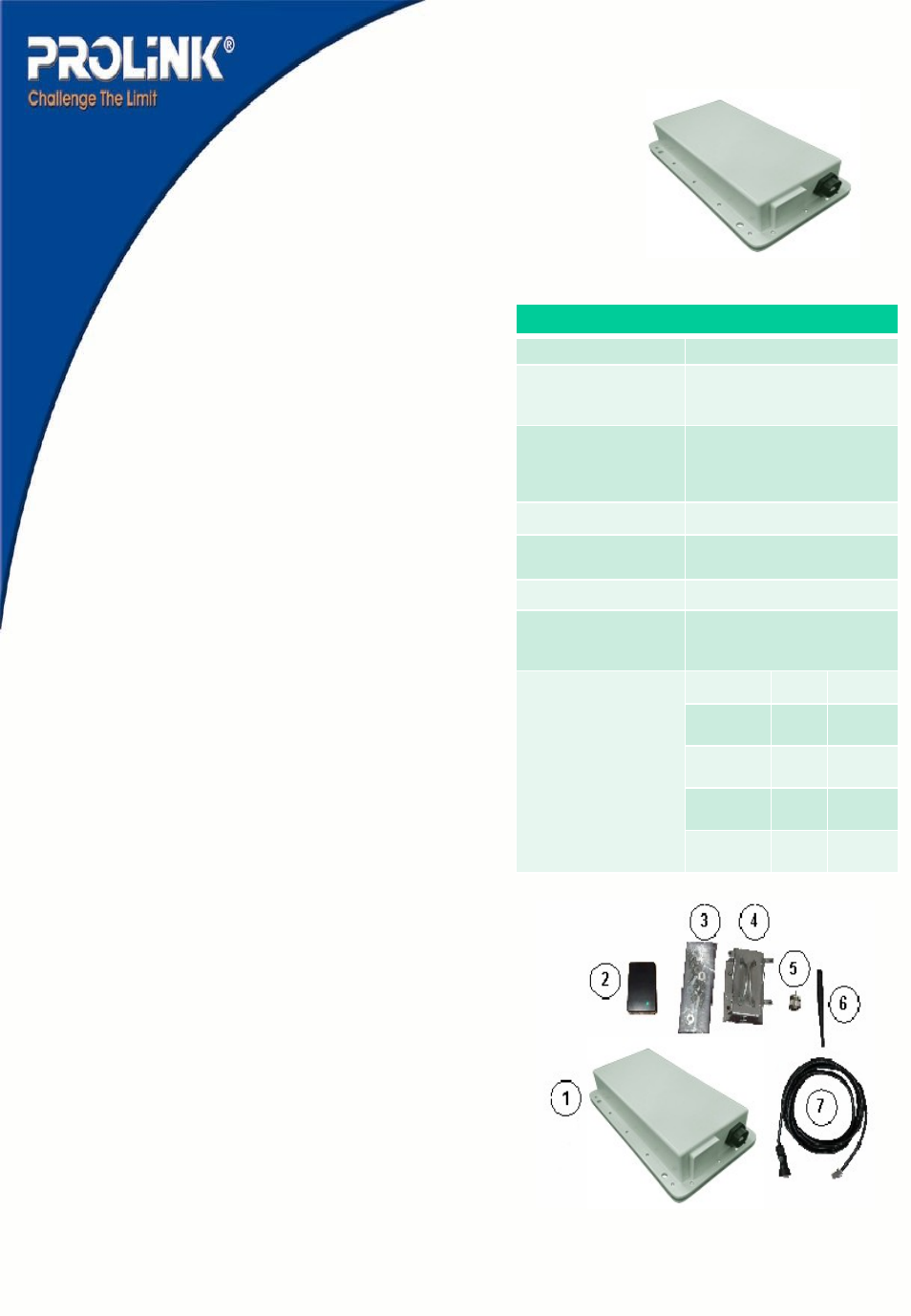

Standard Package
The standard package for AP-1068 comes with :-
1)
PHA-1068
2)
48VDC combiner Adaptor (PoE)
3)
Screws and washers
4)
Mounting bracket (For walls or pole mounting)
5)
N type to SMA type adaptor x2
6)
2 dBi Antenna x2
7)
3m cable with IP67 RJ45 connector
Outdoor AP, Repeater, Point to Multi-Points
Outdoor AP, Repeater, Point to Multi-Points
Wireless Bridge & Professional Vehicle
Wireless Bridge & Professional Vehicle
Transceiver
Transceiver
Specification are subject to changes without prior notice due to engineering improvement. Wireless range
and performance may vary with environment. All brands and product names are trademarks or registered
trademarks of their respective holders.
++With 23dBi Grid Parabolic Antenna on each station. Distance may vary with environment.
RF Specification
Frequency Range
2.4 ~ 2.4835 GHz
Wireless Data Rate
54, 48, 36, 24, 18, 12, 11, 9, 6,
5.5, 2, 1 Mbps
Up to 108Mbps for Turbo mode
Channels
11 channels (USA/Canada),
13 Channels (Singapore, Europe
except France),
14 Channels (Japan)
Transmit Output Power
27dBm ± 2dBm
Nominal Antenna Port
Impedance
50 Ω x 2 (for external antenna
connector, if applicable)
Media Access Protocol
CSMA/CA with ACK
Modulation Technique
DSS DBPSK, DQPSK, CCK
OFDM BPSK, QPSK, 16QAM,
64QAM
Receiver Sensitivity
Bit Rate
PER
Signal
54Mbps
10%
-73bBm
11Mbps
8%
-86dBm
6Mbps
10%
-88dBm
1Mbps
8%
-91dBm
