PERKO 0927 User Manual

PERKO Hardware

Text mode
Original mode

Cat. No. 0927000CHR Mortise Lock Set

MOUNTING INSTRUCTIONS

This mortise lock set is designed to be mounted on doors 1 inch to 1-3/8 inches thick. Beveled bolt is reversible.

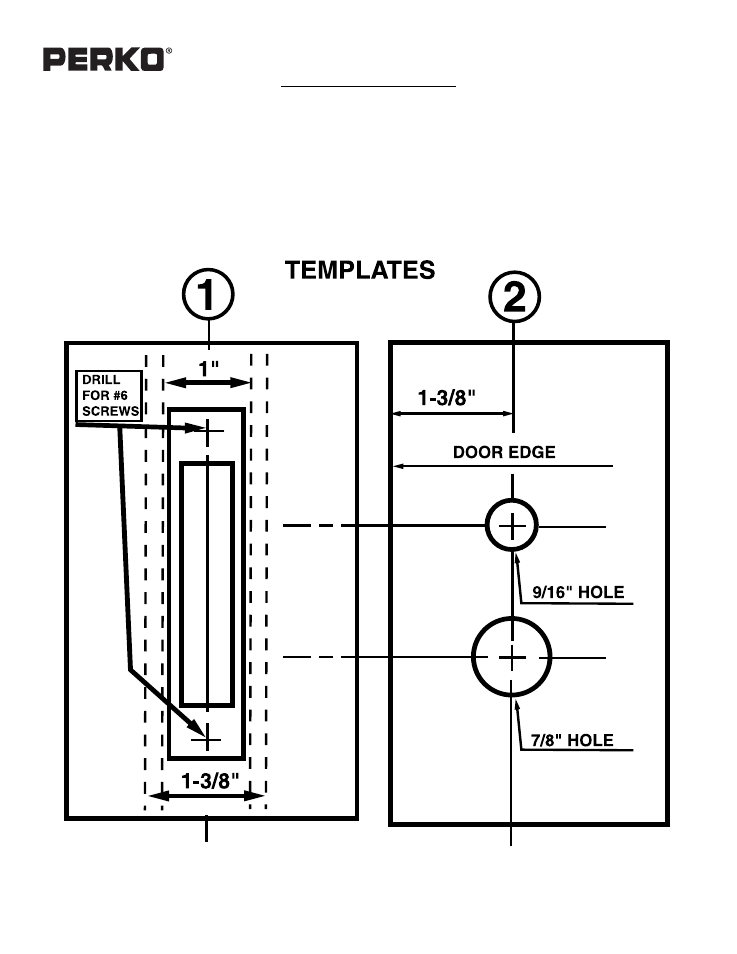

1). Cut out templates below.
2). Tape template 1 on edge of door at desired height. Fold over edge.
3). Tape template 2 on side of door. Line up center lines. Mark cut-outs for mortised lock, faceplate and holes.
4). Cut out door and drill holes as indicated.
5). Insert lock and fasten.
6). Fasten escutcheons as shown. Insert lever handle with stem. Screw knob on stem and tighten set screw.
7). Mount strike on door frame.
NOTE: FOR CONTINUED EASE OF OPERATION, PERIODICALLY APPLY A LOCK CYLINDER LUBRICANT

PERKO, Inc.

3/04

16490 N.W. 13th Avenue

0927INS1

Miami, FL 33169-5707
www.perko.com

(SEE OVER)
