PERKO 1091 User Manual
PERKO Hardware
Figs. 1091/1092 Series
FOLD O
VER EDGE OF DOOR
2”
Drill 2-1/2 Inch hole
Cat No. 1091 Series Locks.
Cat No. 1092 Series Latches.
MOUNTING INSTRUCTIONS
These locks or latches are designed to be mounted through surfaces from 1/8 inch to 3/4 inches thick. The
cam bars are adjustable to a maximum of 3 inches from the mounting surface.
1).
Cut out the template below. Fold on dotted line. Place on mounting surface at desired location with
folded tab overlapping edge.
2).
Mark center of hole for drilling.
3).
Drill a 2-1/2 inch hole through the mounting surface.
4).
Use mounting gasket for smooth surfaces or discard for carpeted surfaces.
5).
Insert lock or latch through the hole in the surface and attach spacer and back-up nut.
6).
Re-assemble cam bar with proper adjustment. Tighten set screw and locking nut with lock washer.
Note: For continued ease of operation, periodically apply a lock cylinder lubricant.

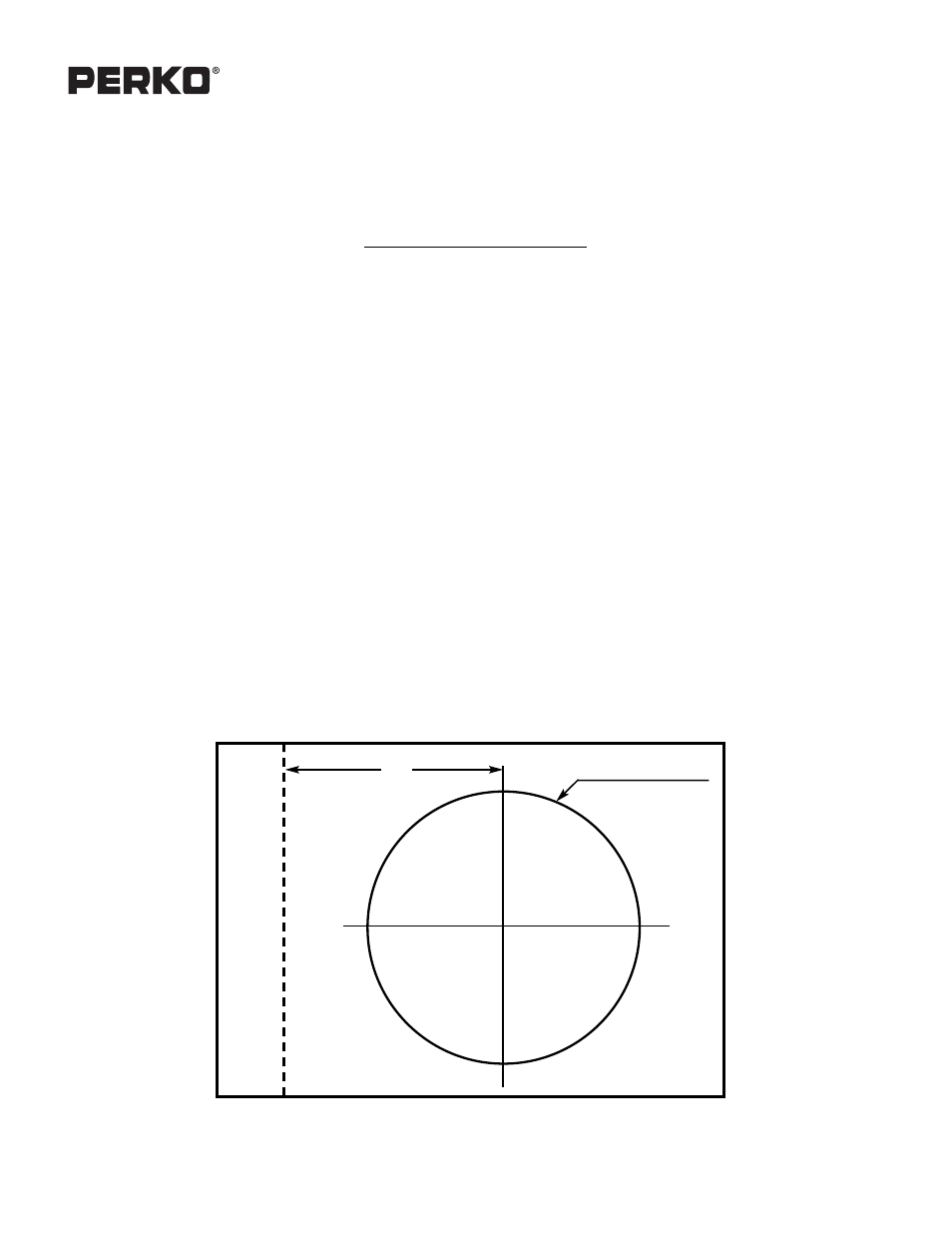

MOUNTING TEMPLATE
PERKO, Inc.
16490 N.W. 13th Avenue
Miami, FL 33169-5707
www.perko.com
(SEE OVER)
6/02
1091INS1
