M E - 6 8 2 8 E x p e r i m e n t 1 : D a m p e d O s c i l l a t i o n
3
Experiment 1: Damped Oscillation
Set-up
1. Set up the equipment as illustrated. Use two or three weak springs combined
end-to-end.

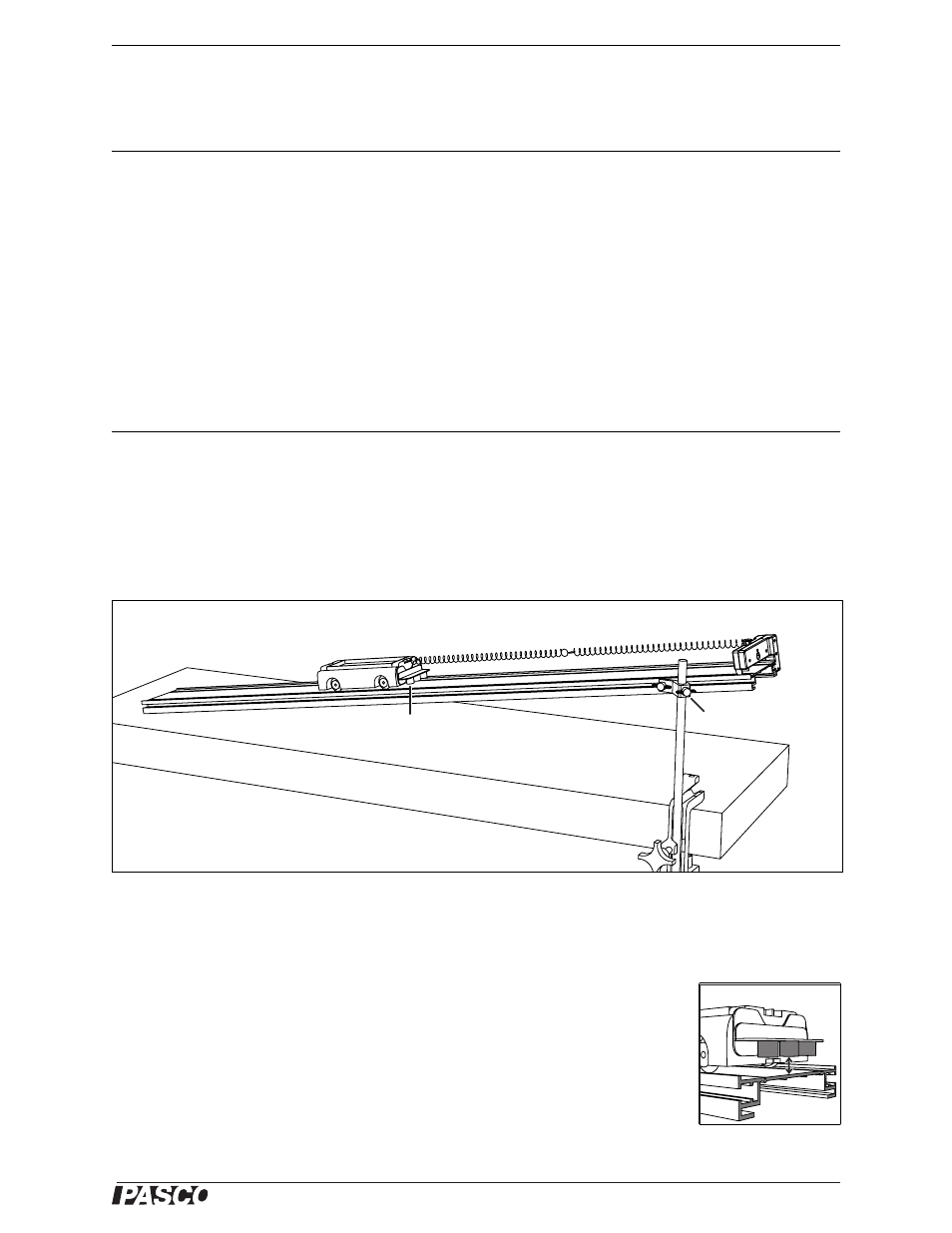

Experiment set-up for Damped Oscillation
2. Adjust the angle of the track (or the position of the end stop) so that the cart’s
equilibrium position is about 40 cm from the lower end of the track.
Method I (without sensors)
Skip to Method II if you will be using a motion sensor.
1. Place the Magnetic Damping Accessory on the end of the cart with a gap of
10 mm between the magnets and the track.
2. Tap the cart a few times so that it moves to its equilibrium position.
3. Pull the cart up the track and hold it 20.0 cm from equilibrium.
Equipment Part Number
Dynamics Cart Magnetic Damping ME-6828
Motion Sensor (optional for Method II) PS-2103A or similar
Cart
1
ME-6950, ME-9430, or ME-9454
Aluminum Track
1
ME-6953 or similar
Harmonic Springs
1, 2
ME-9803A or similar
Adjustable End Stop
1
ME-8971 or similar
IDS Pivot Clamp
1
ME-9810
Large Table Clamp ME-9472
90 cm Rod ME-8738 or similar
1 These items are components of many PASCO dynamics systems.
2
This experiment works best with a spring, or combination of springs, with a constant between 1.0 N/m and 1.5 N/m.
Magnetic
Damping
Accessory
cart
two or three springs end-to-end
table clamp
end stop
pivot clamp
rod
Gap between magnets
and track
