Force Sensor Balance Stand Model No. CI-6460
6 ®
Hold the bracket against the side hole in the Force Sensor Stand. Insert a screw into the back
of the Acceleration Sensor and mount to the back of the stand. Insert another screw into the
bottom of the Acceleration Sensor to hold the sensor in place.
Note: If you are mounting a CI-6537 Force Sensor, mount the metal bracket to the front of
the Force Sensor Stand, as shown in Figure 5.

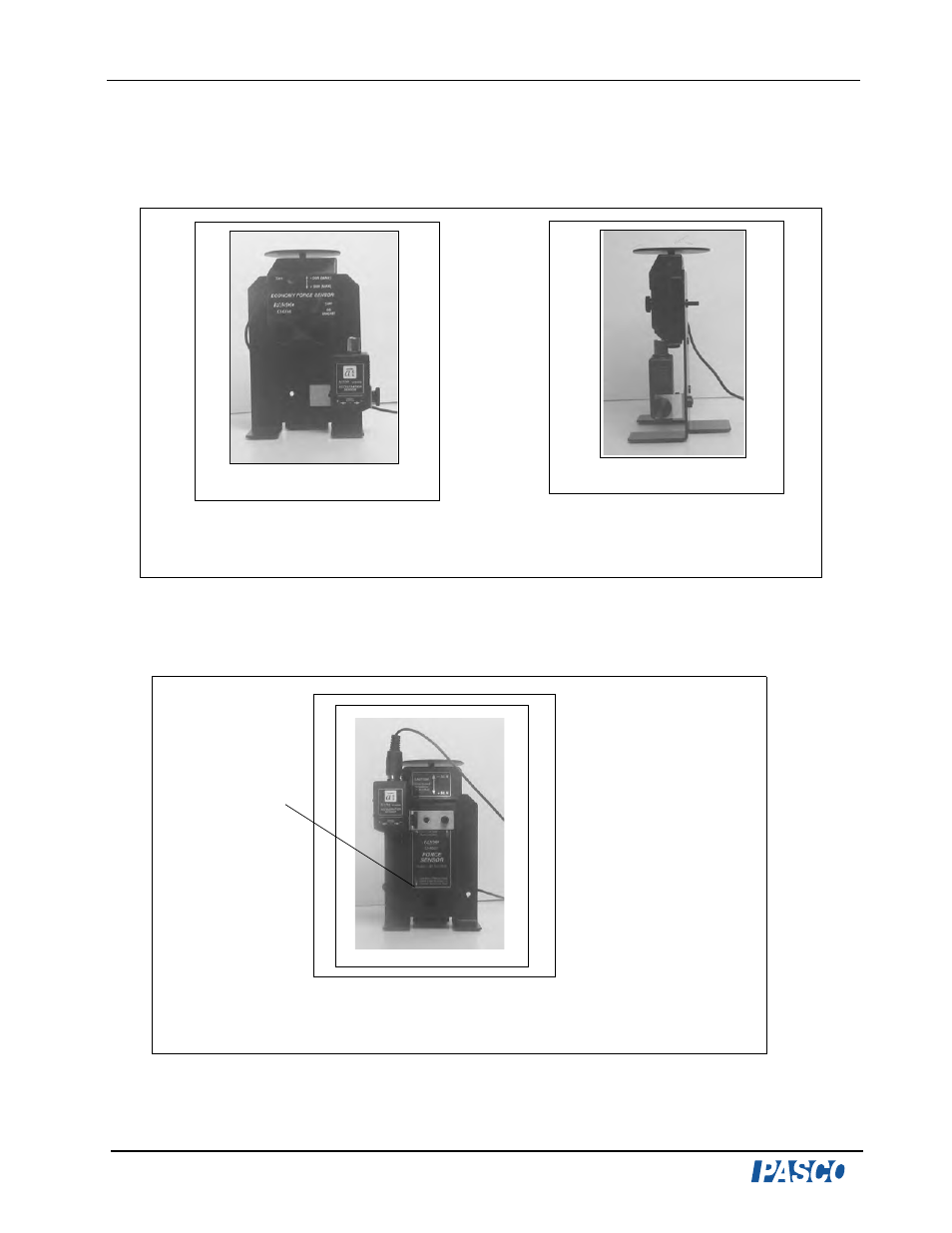

4a) front view
4b) side view
Figure 4a-4b: Setup with a ScienceWorkshop CI-6746 Economy Force and CI-6558
Acceleration Sensor
Figure 5: Setup with a CI-6537 ScienceWorkshop Force Sensor and
CI-6558 Acceleration Sensor:
bracket
