PASCO ET-8782 Energy Transfer– Thermoelectric User Manual
Page 26
Energy Transfer –Thermoelectric
A Model Refrigerator
26
®
heat sink or the aluminum block. Connect the probe below the heat sink to Channel 3 of the Quad
Temperature Sensor; connect the other probe to Channel 4.
5.
Voltage: Connect the voltage leads of the Voltage/Current Sensor to the Voltage Ports on the
board. Note the polarity.
6.
Current: Connect separate red and black banana patch cords from the current input of the
Voltage/Current sensor to the Current Ports on the board. Note the polarity.
7.

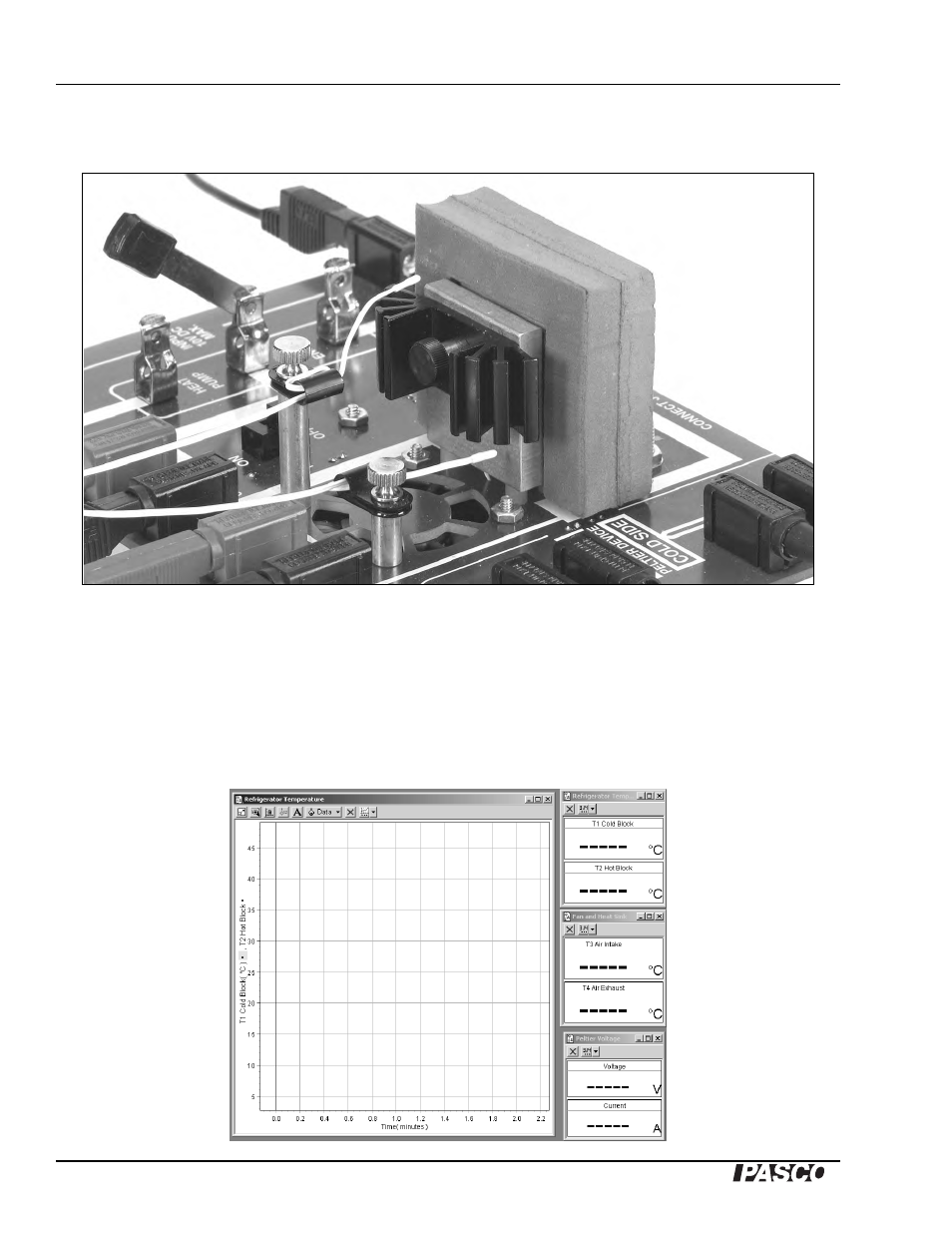

Computer: Connect the sensors to the computer through the PASPORT interface. Open the
pre-configured DataStudio file “Refrigerator”. The display should look as shown below.
