PASCO ET-8782 Energy Transfer– Thermoelectric User Manual
Page 18
Energy Transfer –Thermoelectric
Load Resistance and Efficiency
18
®

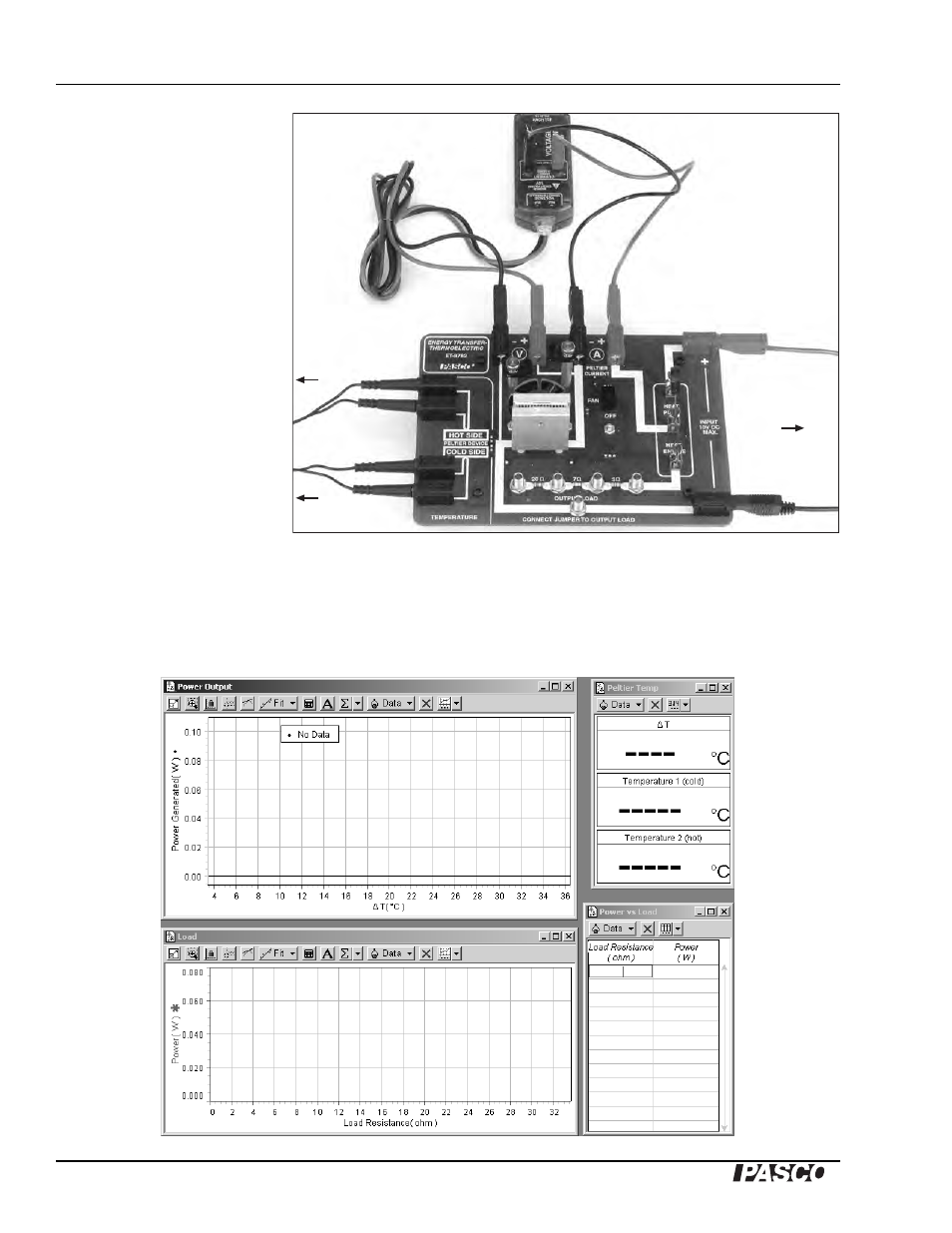

2.
Temperature:
Connect the
cables from the
temperature ports
to the Quad
Temperature
Sensor. Connect
the Cold Side to
Channel 1 of the
sensor and the Hot
Side to Channel 2.
3.
Voltage: Connect
the voltage leads
of the Voltage/
Current Sensor to
the Voltage Ports
on the board. Note
the polarity.
4.
Current: Connect
separate red and black banana patch cords from the current input of the Voltage/Current
sensor to the Current Ports on the board. Note the polarity.
5.
Computer: Connect the sensors to the computer through the PASPORT interface. Open the
pre-configured DataStudio file “Load Efficiency”. The display should look as shown below.
Power
Supply
Voltage/Current
Sensor
Temperature
Sensor
Ch 1
Ch 2
