PASCO CI-6740 High Current Sensor User Manual
Page 4
CI-6740
012-08627A
4
Technical Support
Address:
PASCO scientific
10101 Foothills Blvd.
Roseville, CA 95747-7100
Phone:
(916) 786-3800
FAX:
(916) 786-8905
E-mail:
Web site:
www.pasco.com
Limited Warranty
For a description of the product warranty, see the
PASCO catalog.
Copyright Information
The PASCO 012-08627A High Current Sensor
Manual is copyrighted and all rights reserved.
However, permission is granted to non-profit
educational institutions for reproduction of any part of
the 012-08627A High Current Sensor Manual,
providing the reproductions are used only for their
laboratories and are not used for profit. Reproduction
under any other circumstances, without the written
consent of PASCO scientific, is prohibited.
The exclamation point within an
equilateral triangle is intended to alert the
user of important operating and safety
instructions that will help prevent
damage to the equipment or injury to the
user.
Note: This instruction sheet was written assuming
that the user is familiar with DataStudio. Users can
gain familiarity by working through the tutorials
provided from DataStudio’s Online Help.

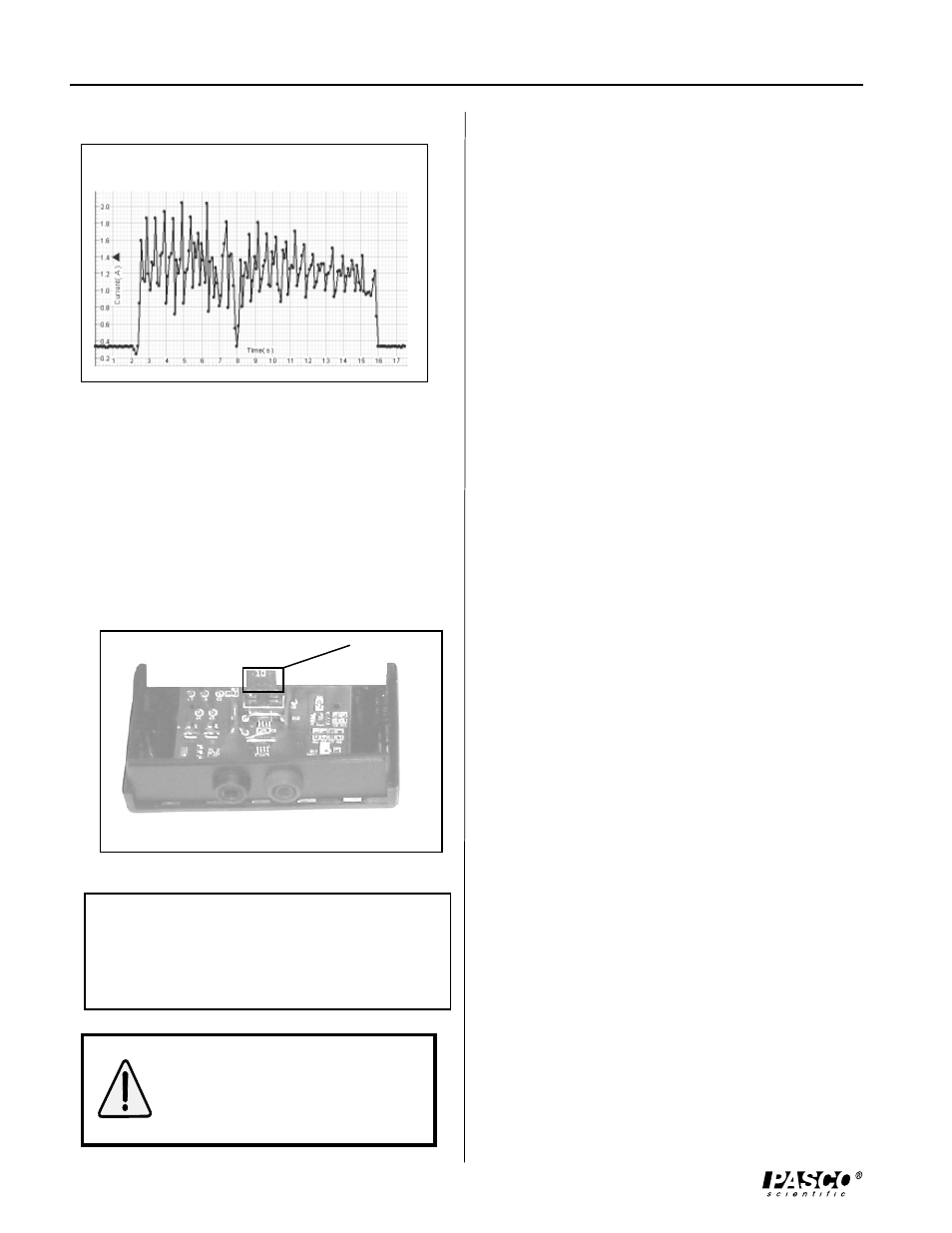

Replacing the Fuse in the High Current Sensor
Sample Data
The High Current Sensor requires a 10 amp “mini-blade”
fuse. If the fuse burns out, replace it with a fuse with a
10-amp rating. Replacing a fuse with a higher rating may
cause a current overload.
To replace the fuse, unscrew the screws on the back side of
the High Current Sensor box. Remove the back casing and
install the new fuse (See Figure 3).
Figure 2: Current Recorded from a Hand
Crank Generator (EM-8090)
fuse
Figure 3: Replacing the fuse
