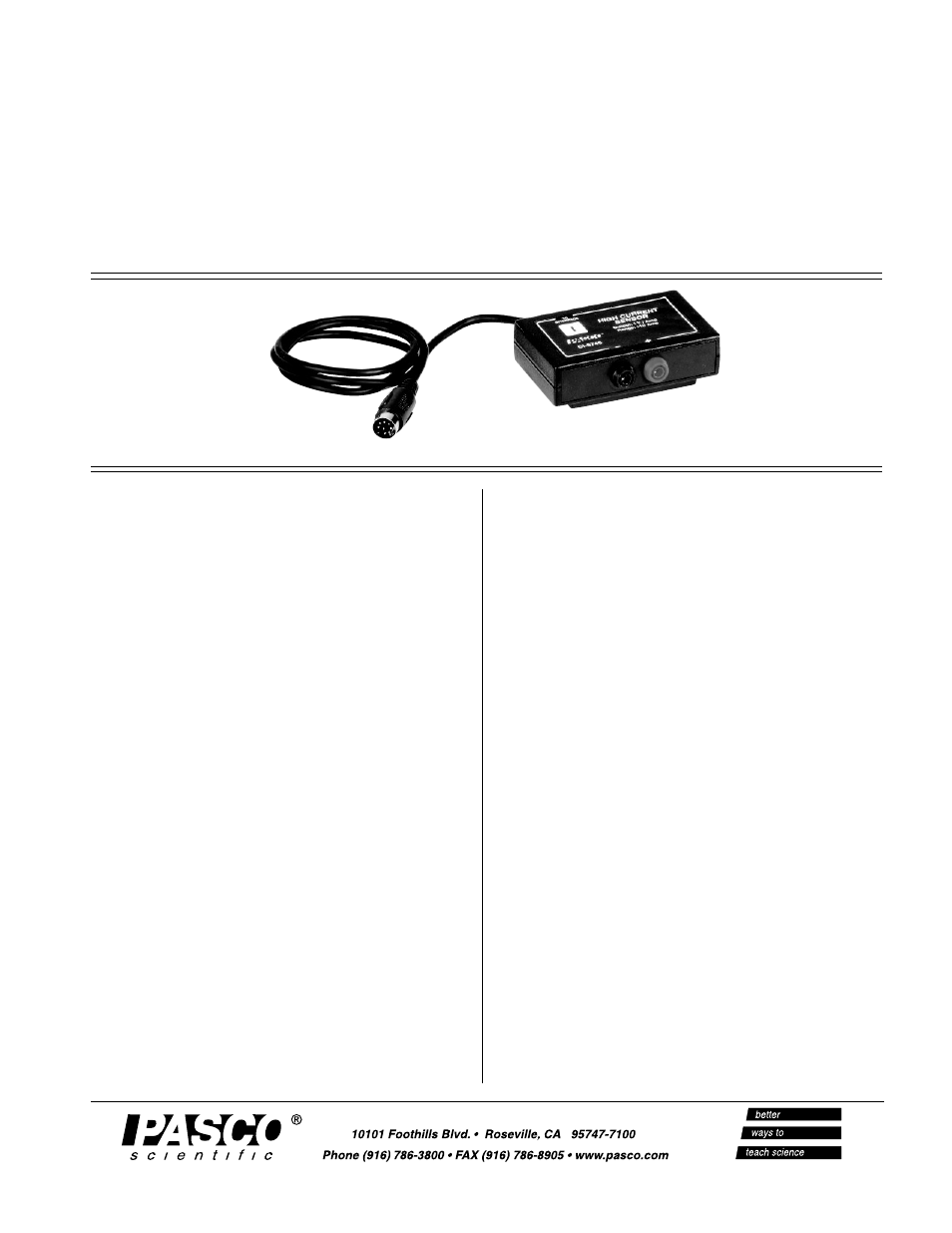

Instruction Sheet
for the PASCO
Model CI-6740
High Current Sensor
012-08627A
Introduction
The PASCO CI-6740 High Current Sensor measures
both AC or DC current between 0 and 10 amperes.
The High Current Sensor is ideal for circuits in which
the current exceeds 1 ampere. Instead of a sensing
resistor, the High Current sensor uses a Hall-Effect
chip, which has no internal resistance and therefore
generally eliminates the need to account for sensor
resistance. The sensor includes a 10-amp fuse, which
is replaceable.
With a set of banana plugs or lead inputs, the High
Current Sensor connects directly to a power supply or
to any PASCO circuit board.
Equipment included:
• High Current Sensor (CI-6740)
Typical Applications:
•
Determine the current output from PASCO’s
Hand Crank Generator or a power supply
•
Measure the current through a PASCO coil
Additional equipment required:
•
ScienceWorkshop® computer interface
•
DataStudio software, version 1.8.5 or later
•
Banana plugs (1 or more sets) (For one set of
banana plugs, use part no. 517-007 and 517-008.
For a 5-pack of leads, use SE-9750 and SE-9751.)
Specifications:
•
Maximum current input: 10 Amps
•
Maximum voltage input: 30 Volts
•
Resolution: 5 milliamps
•
Frequency response: DC to 16 Khz
•
Fuse: 10 Amps, fast-acting (replaceable)
•
Insertion resistance: 0.03 ohms (maximum)
