012-05479B Mini Launcher
17
®
➄
Increase the angle by 10 degrees and repeat all the steps.
➅
Repeat for angles up to and including 80 degrees.
SHOOTING OFF THE TABLE

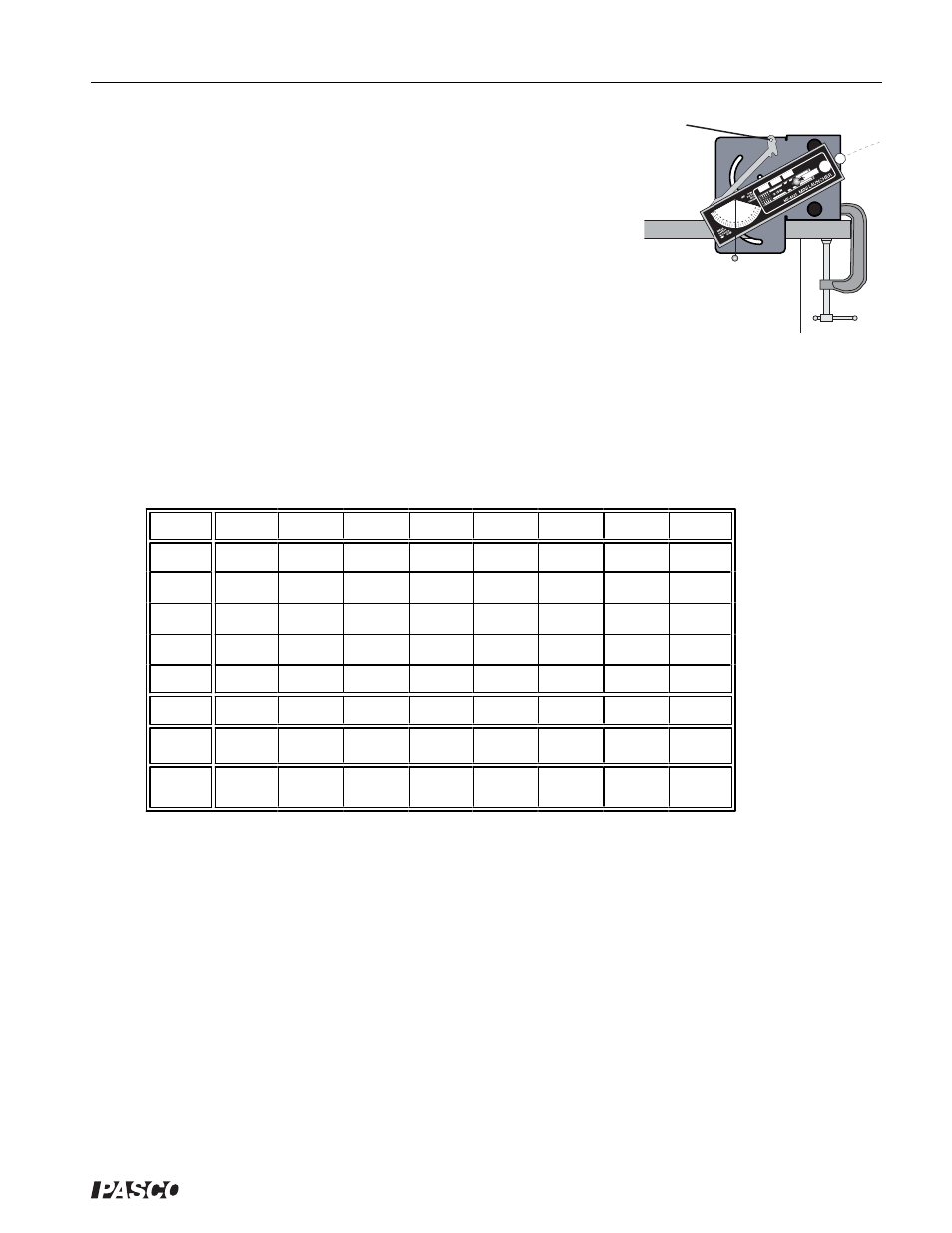

Clamp the Mini Launcher as shown in Fig 3.4 so that the ball
will hit the floor. Repeat steps 1 through 6 and record the
data in Table 3.2. You can use a plumb bob to find the point
directly beneath the launch position of the ball.
Analysis
➀
Find the average of the five distances in each case Àand
record in Tables 3.1 and 3.2.
➁
Add the average distance to the distance to the leading edge of the paper to find the total
distance (range) in each case. Record in Tables 3.1 and 3.2.
➂
For each data table, plot the range vs. angle and draw a smooth curve through the points.
Questions
➀
From the graph, what angle gives the maximum range for each case?
➁
Is the angle for the maximum range greater or less for shooting off the table?
➂
Is the maximum range further when the ball is shot off the table or on the level surface?
Table 3.2 Shooting Off the Table
Angle 10 20 30 40 50 60 70 80
1
2
3
4
5
Average
Paper
Dist.
Total
Dist.
Horz. Distance
Figure 3.4: Setup
