Note: Completed folding arm
assembly shown in the UP position
to illustrate the total height.

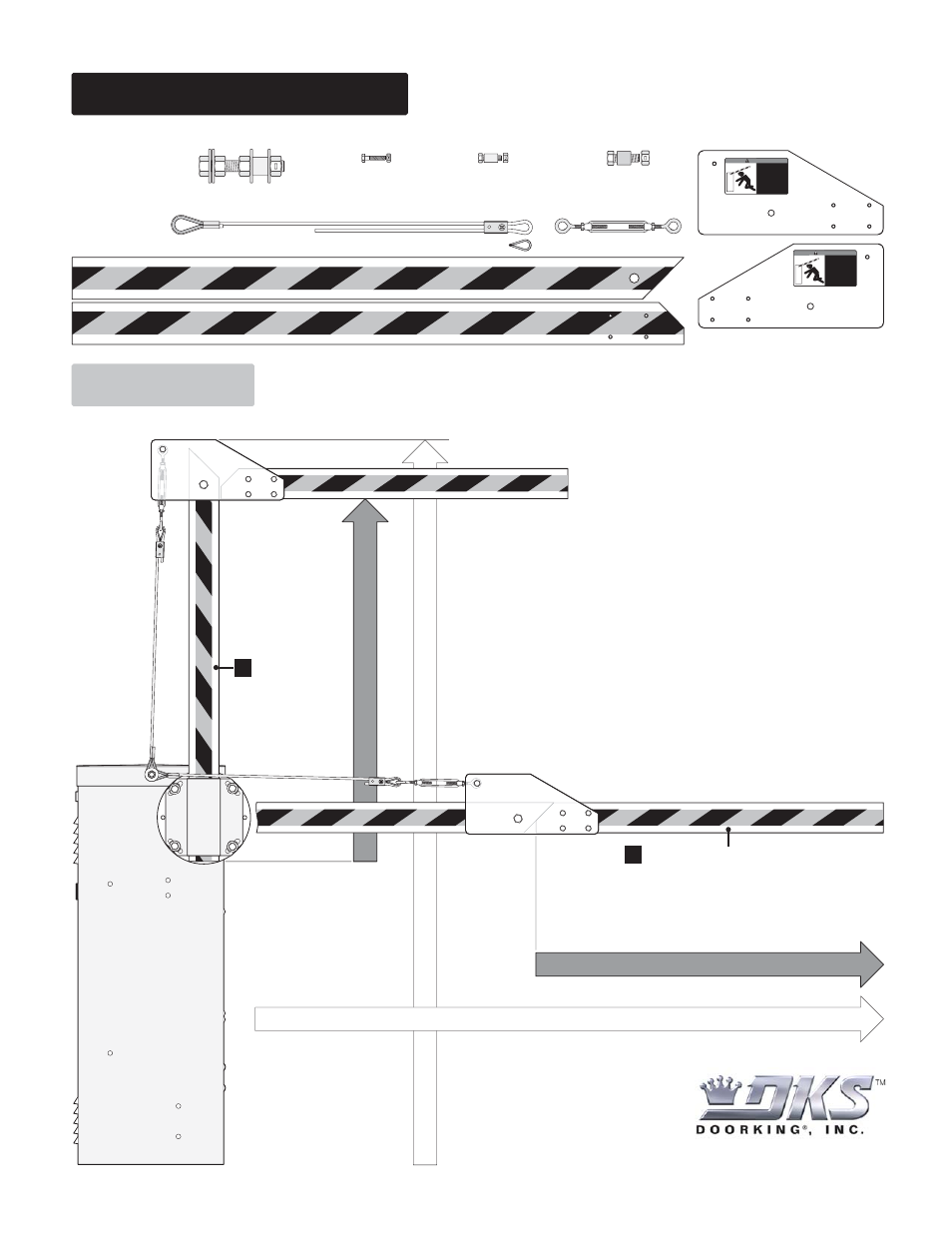

WOOD FOLDING ARM KIT

Installation

DoorKing Part Number

1601-084

This kit is designed for the 1600 model barrier gate operators only. Recommended for low headroom applications.

Kit Includes:

Cut this arm
first for the
height
limitations.

Determining First Arm Length

Cut this arm second for the
traffic lane width.
Note: Second arm can be a
different size than the first.

Determining Second Arm Length

Cut Arms to Length

Traffic Lane Width

Total Height

Pre-Crimped Eyelet

Cable Attachment Assembly

Cable

2 Wood Arms

Cable Clamp

2 Hinge Plates

Cable Eyelet

Locking Turnbuckle

Note: Completed folding arm assembly
shown in the DOWN position to illustrate
traffic lane width.

120 Glasgow Avenue

Inglewood, California 90301

U.S.A.

4 Bolts with
Locknuts (Small)

Bolt with Bushing
and Locknut (Medium)

Bolt with Brass Bushing
and Locknut (Large)

MOVING ARM

can

cause vehicle damage,
serious injury or death.

STAY CLEAR

of arm

at all times.

NO: Pedestrians

Bicycles
Motorcycles

WARNING
