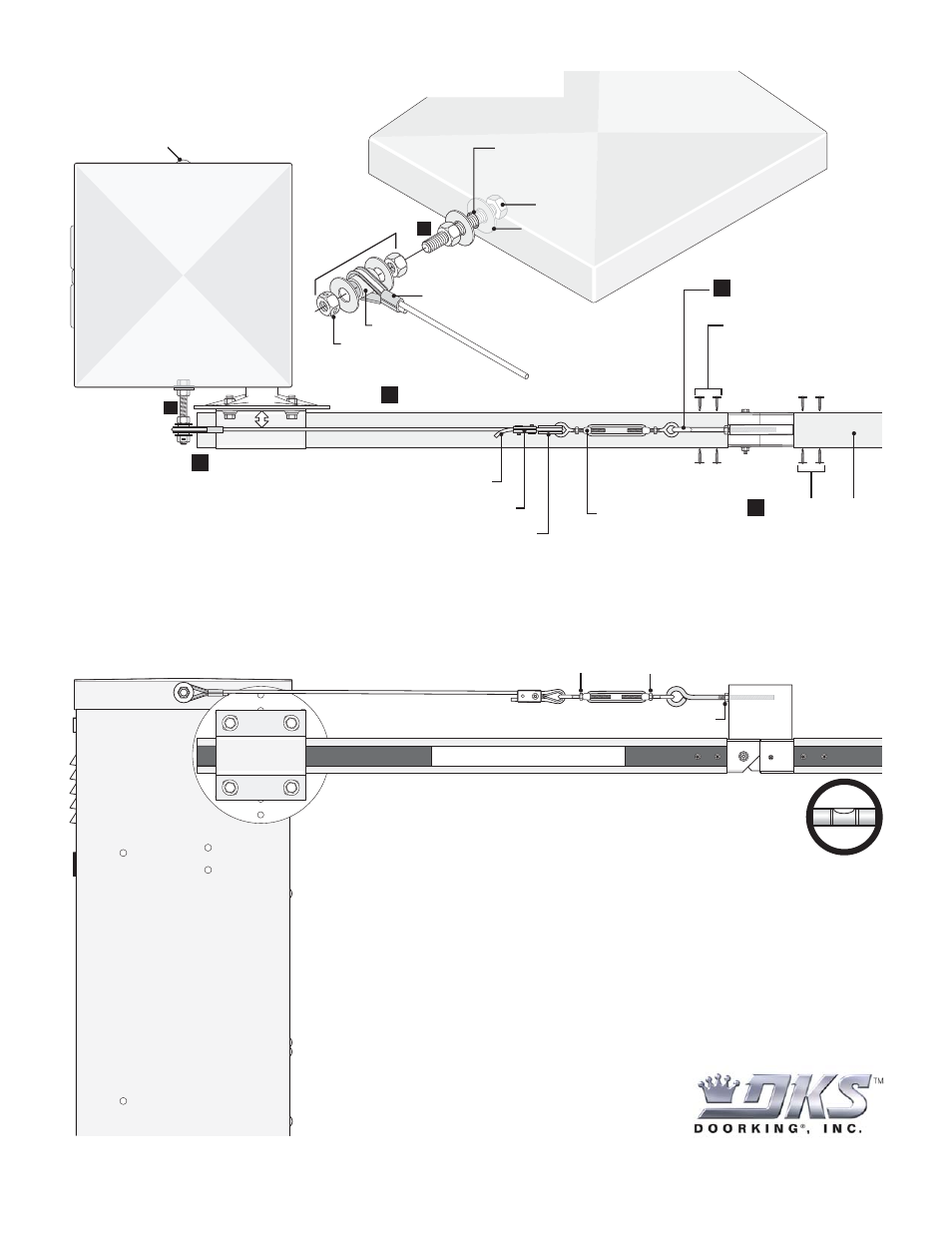

Top View of
Operator Housing
Side View of
Operator Housing
120 Glasgow Avenue
Inglewood, California 90301 U.S.A.
Hub
Existing Stud
Important: Do not adjust cable too tight or it will bind.
Adjusting and Locking Cable Assembly
After adjusting cable tension, lock turnbuckle
with nuts to keep turnbuckle from twisting.
Rotate arm up and down. Adjust cable tension with turnbuckle
to level outer arm. Make sure that cable assembly is not binding
or twisting and everything moves freely.
Lock eye bolt with nut to keep eye bolt from twisting.
Inner Arm
Outer Arm
Cable Eyelet MUST be installed in turnbuckle.
Cable Clamp
Install eye bolt into arm
hinge with vise-grips.
Attach arm hinge to
inner arm with 4
self-tapping screws.
1
2
3A
3A
Allow turnbuckle to
loosen or tighten.
Install inner arm
on hub.
3
4
Install cable. Cable MUST clear hub!
Cut off excess cable.
Remove stud from operator housing
and assemble as shown.
Bushing
Operator Housing
Adjust to clear hub.
Pre-Crimped Eyelet
Bolt Head (Inside Housing)
Washer (Inside Housing)
Locknut
Install outer arm
with 4 self-tapping
screws.
Installing Arms
