Applicational advice SB Wire Sawing System
Page 20 SB_0107_e.mif
)OXVK FXWWLQJ DJDLQVW D ZDOO

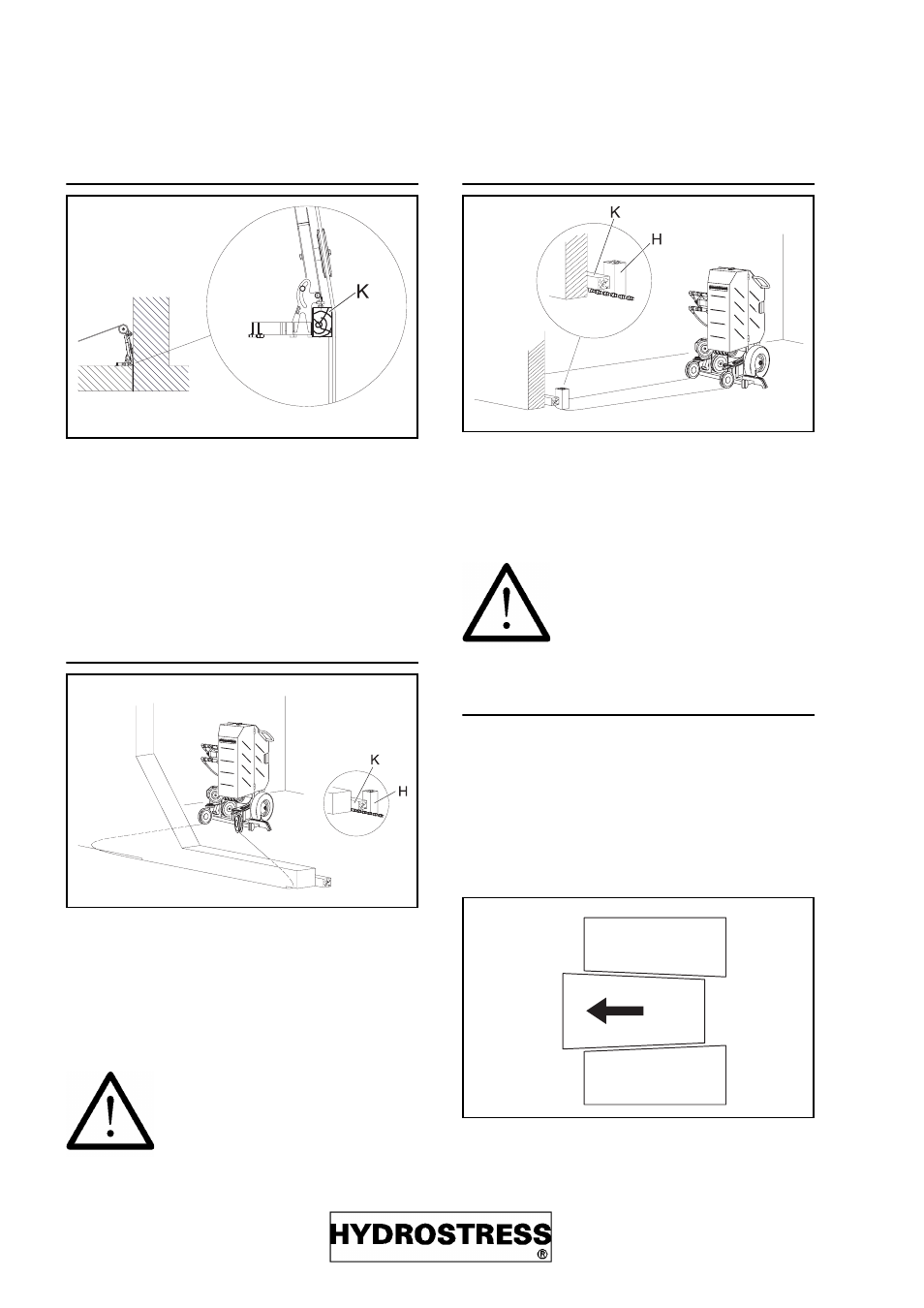

When flush cutting against walls the following
points must be borne in mind:
1. Set up SB at a suitable distance from the structure
2. With the universal trestle insert wire into the cut
3. Clamp a strip of timber (K) along the complete length
in order to guide the wire flush against the wall
)OXVK FXWWLQJ DJDLQVW WKH IORRU
When cutting flush along the floor the following
points should be observed:
1. Set up machine about 1 metre from the object
2. Guide wire and hold it right down with a wooden
beam (K).
(QG RI FXW
During cutting the swivelling rolls must be
swivelled inwards in steps more and more as
the cutting proceeds until at the end of the cut
they are in parallel.
(VWDEOLVK UHPRYDO GLUHFWLRQ
The removal of the sawn-out part must be
possible without danger. Make sure that these
parts cannot fall outside the restricted zone.
In certain cases it may be necessary to saw a
tapered shape so that the sawn-out part can
easily be removed from the opening.
Warning: To catch the wire when
it comes out of the cut a piece of
wood (H) must be fixed at the
exit point.
In order to swivel the swivelling
pulleys inwards it is essential
that the machine is stopped!
