Max Machinery, Inc.

240 Series User Manual

© Copyright 2013

Rev. 002Q4

18

5.18”

*

(132 mm)

10.85”

(276 mm)

*Add 1.32” (34mm) for high pressure body

2.5” NPT

4.10”

(104 mm)

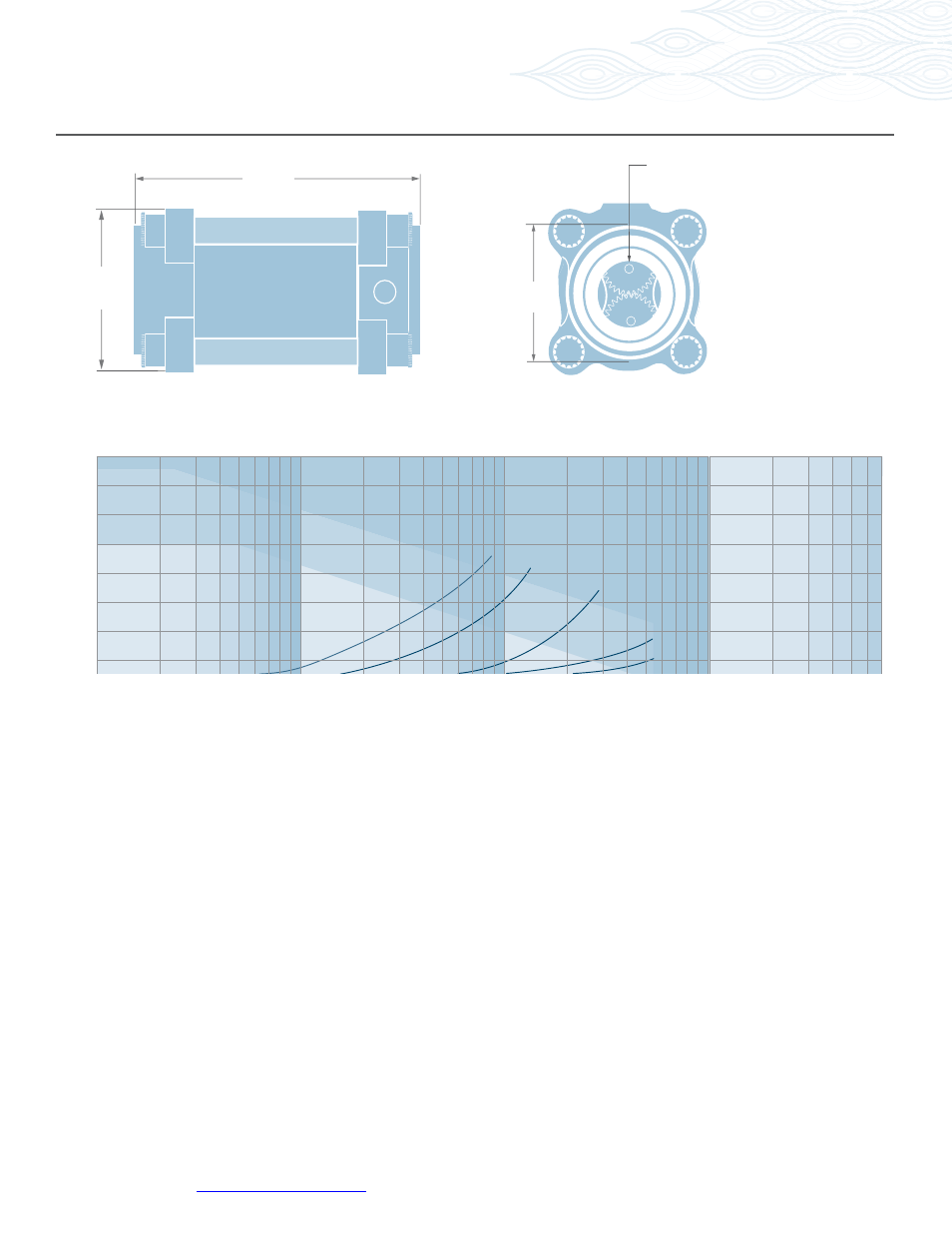

CONNECTIVITY/DIMENSIONS

242 Helical Flow Meter

Pr

es

sur

e Dr

op (p

si)

0

120

140

20

40

60

80

100

TYPICAL PRESSURE DROP (Delta P versus Flow rate for various viscosities)

—8 bar

—6 bar

—4 bar

—2 bar

Intermittent Duty Area

Expected Failure Area

Continuous Duty Area

10,0

00

cP

30

00

cP

1

000

cP

300

cP

3 cP

540

Flow Rate (L/min)

1

2

3

5

10

20

30

50

100

200 300

1k

2k

3k
