Installing the hyfire, 9mallory technical support, Microprocessor controlled ignition system – Mallory Ignition Mallory HYFIRE V ELECTRONIC IGNITION CONTROL 585 User Manual
Page 9
9
MALLORY TECHNICAL SUPPORT
(775) 882-6600
®
PART No. 585
MICROPROCESSOR CONTROLLED IGNITION SYSTEM
R
BLACK (SMALL 18GA)
ORANGE
YELLOW
GREEN
COIL
+
TO TACHOMETER
RED (LARGE 14GA)
PURPLE
TO BATTERY POS (+)
BLACK (LARGE 14GA)
TO BATTERY NEG ()
MAGNETIC PICK-UP
(NOT USED)
GREEN
RED
RED (SMALL 18 GA)
WHITE
(SMALL 18 GA)
SHRINK TUBING
STOCK IGNITION
COIL CONNECTOR

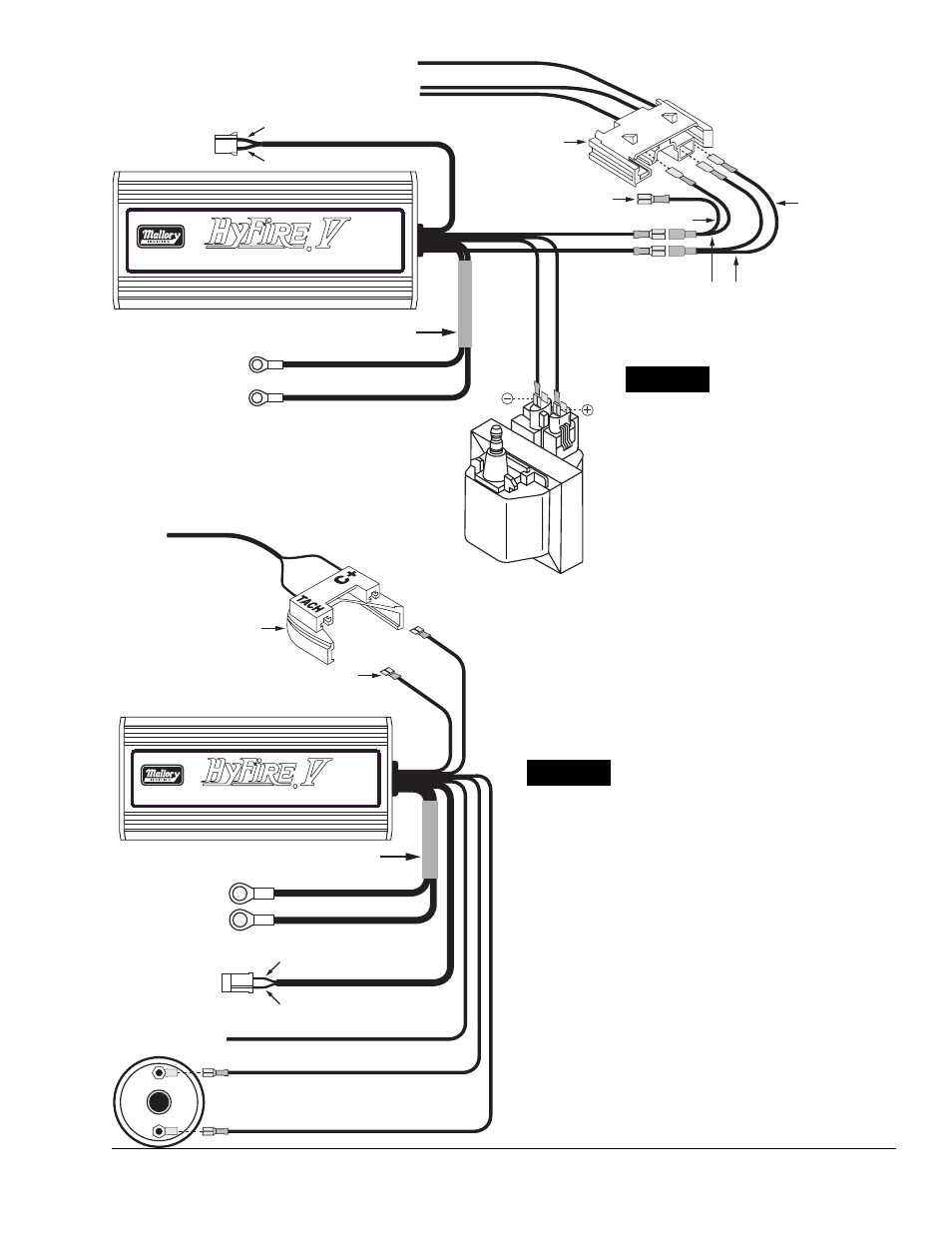

Installing the HYFIRE
®
V with a Ford
Duraspark using the White Wire Trigger
BLACK (LARGE 14 GA)
TO BATTERY NEG ()
RED (LARGE 14 GA)
TO BATTERY POS (+)
®
PART No. 585
MICROPROCESSOR CONTROLLED IGNITION SYSTEM
R
MAGNETIC PICKUP
NOT USED
WHITE
RED (SMALL 18 GA)
RED
JUMPER
WHITE JUMPER
NOT USED (TAPE END)
ORANGE
BLACK
(SMALL
18 GA)
FROM DISTRIBUTOR
PINK
BROWN
HEAVY PINK, ORANGE, OR RED WIRE
GREEN
PURPLE
PART OF MALLORY
HEI KIT P/N 29008
(NOT INCLUDED)
SHRING TUBING
STOCK IGNITION
COIL CONNECTOR
Installing the HYFIRE
®
V with
an External 4-Terminal Coil
(Single Connector)
FIGURE 16
FIGURE 17
