11 MALLORY TECHNICAL SUPPORT (775) 882-6600 [email protected]
®
PART No. 585
MICROPROCESSOR CONTROLLED IGNITION SYSTEM
R
BLACK (SMALL 18 GA)
ORANGE
COIL
+
–
WHITE
NOT USED
YELLOW
TO TACHOMETER
RED (LARGE 14 GA)
TO BATTERY POS (+)
BLACK (LARGE 14 GA)
TO BATTERY NEG (–)
RED (SMALL 18 GA) FROM ORIGINAL
COIL (+) TERMINAL
BLACK (M–)
ORANGE (M+)
CHRYSLER MODULE
LEAVE DISCONNECTED
VIOLET (+) GREEN (–)
GREEN
PURPLE
6 FT EXTENSION CABLE
CUT ONE END AND
SPLICE AS SHOWN
SPLICE HERE
SHRINK TUBING
DISTRIBUTOR

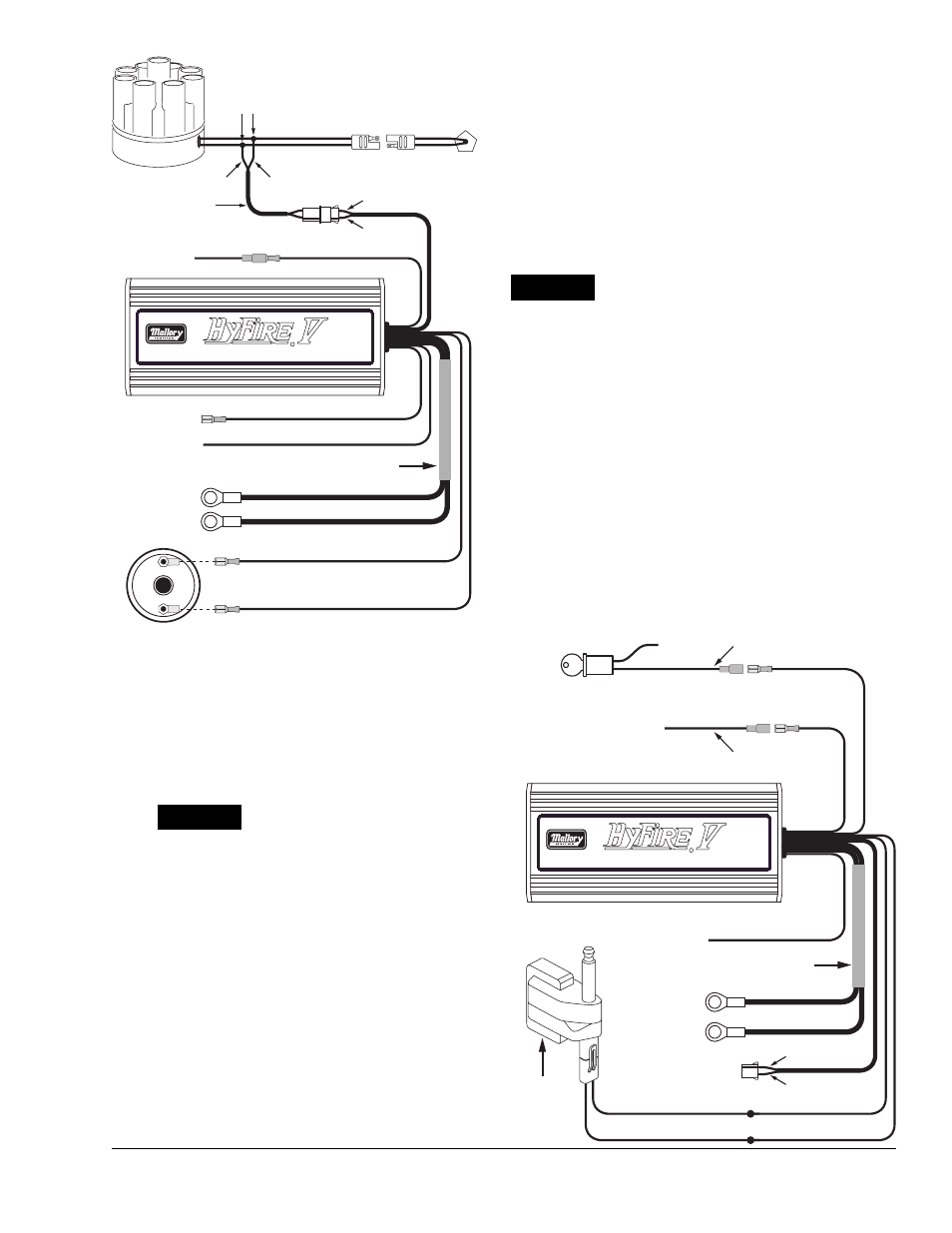

Installing the HYFIRE ® V with a
Chrysler Electronic Ignition using a
Magnetic Pickup Trigger
®
PART No. 585
MICROPROCESSOR CONTROLLED IGNITION SYSTEM MICROPROCESSOR CONTROLLED IGNITION SYSTEM
R
BLACK (SMALL 18 GA)
ORANGE
BLACK/GRAY OR GRAY
YELLOW
TO TACHOMETER
RED (LARGE 14 GA)
TO BATTERY POS (+)
BLACK (LARGE 14 GA)
TO BATTERY NEG (–)
WHITE
ORIGINAL COIL (+) WIRE
GREEN
PURPLE
GREEN/ORANGE
RED (SMALL 18 GA) GREEN/ORANGE
IGNITION KEY TO 12 VOLTS
MAGNETIC PICKUP
NOT USED
BLACK/GRAY
FROM POINTS OR ELECTRONIC
IGNITION AMPLIFIER
ORIGINAL COIL (–) WIRE
SHRINK TUBING
STOCK
IGNITION
COIL
Installing the HYFIRE ® V with a Late
Model Dodge (with 2-Pin Connector)
FIGURE 20
FIGURE 21
