Page 12
12
®
PART No. 585
MICROPROCESSOR CONTROLLED IGNITION SYSTEM
MICROPROCESSOR CONTROLLED IGNITION SYSTEM
R
YELLOW
TO TACHOMETER
RED (LARGE 14 GA)
TO BATTERY POS (+)
BLACK (LARGE 14 GA)
TO BATTERY NEG ()
GREEN
PURPLE
RED (SMALL 18 GA)
MAGNETIC PICKUP
NOT USED
ORIGINAL COIL (+) WIRE
SPLICE HERE
WHITE
() BLACK (SMALL 18 GA)
AMPLIFIER
ORIGINAL COIL ()
TERMINAL FROM
AMPLIFIER
TO IGNITION
SWITCH
(+) ORANGE
SPLICE HERE
SHRINK TUBING
IGNITION COIL

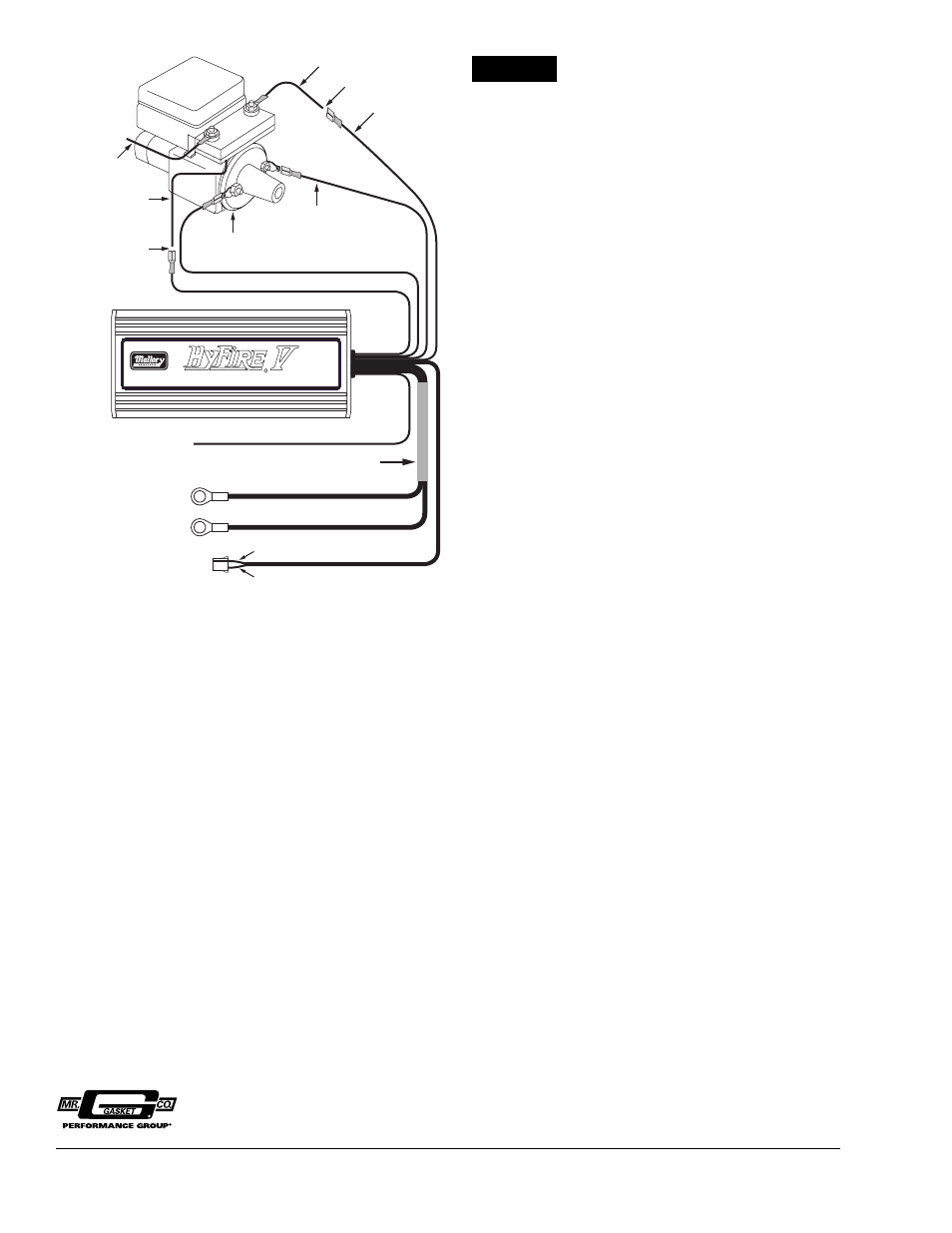

Installing the HYFIRE
®
V with a Typical
Import Application
FORM 1051
(REV. A) 10/01
Made in U.S.A.
Printed in U.S.A.
MALLORY IS A DIVISION OF THE MR. GASKET PERFORMANCE GROUP
550 MALLORY WAY, CARSON CITY, NEVADA 89701
(775) 882-6600
FAX (775) 887-4326
www.mrgasket.com
FIGURE 22
