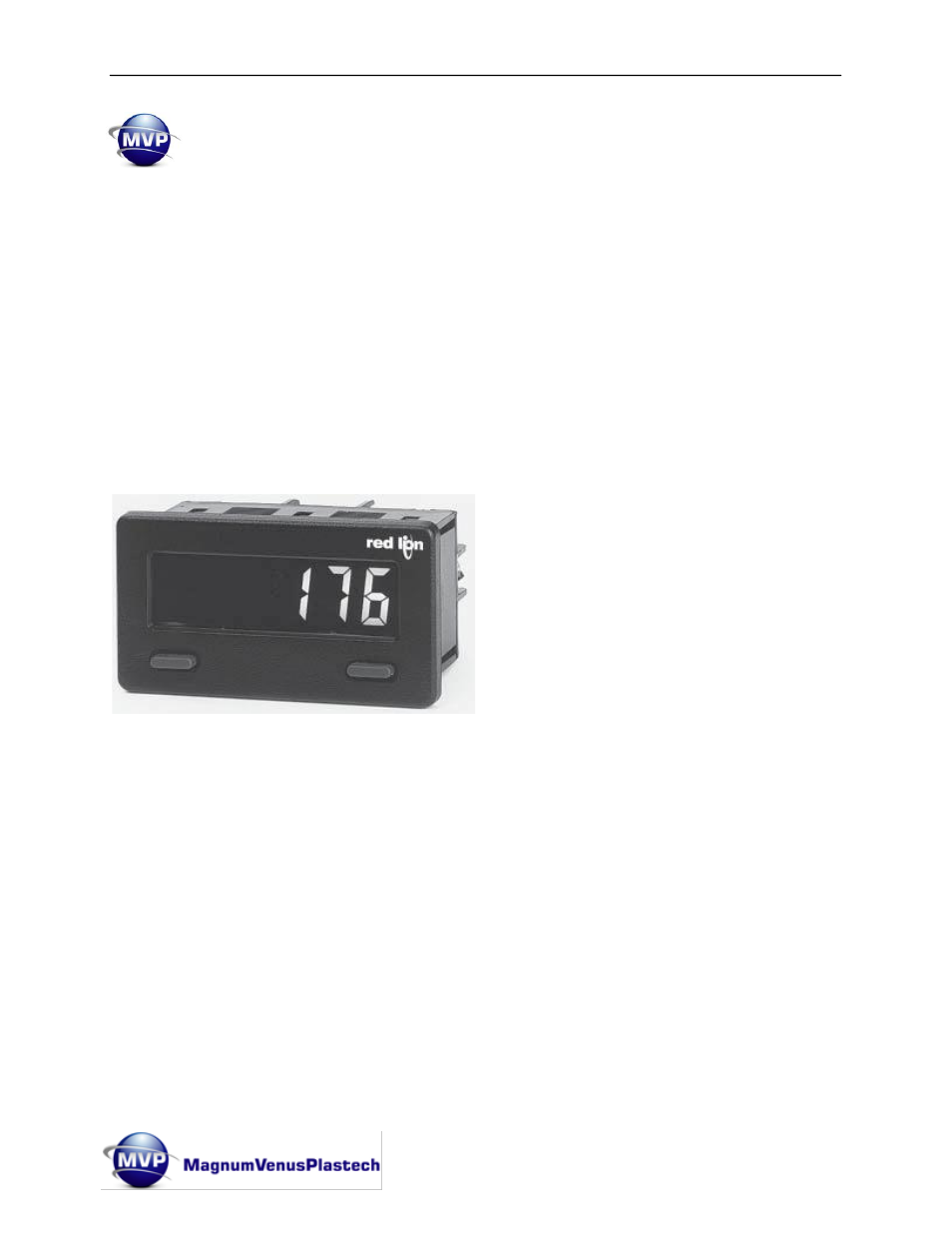

Rate Display:
Note: the Rate Display is only active while dispensing through the dispense gun -
Mode Select switch set to the Gun position and not during Recirc mode.
The rate display has already been set at MVP but can be changed to meet customer
needs. For the Rate to be displayed the rate Display Designator
: “R” to the left side of
the display needs to be displayed. It has not been set-up to give a flow rate in pounds or
kilograms; it is only a reference number. Once the speed of the pump has been set the
rate number and the corresponding output should be noted. Depending on up-date time
that has been programmed - the rate speed of the pump may show different numbers
from up-stroke to down-stroke. This is not an issue;
it’s only a reference number that
can be noted for each application, mould or die profile.
Note: the Rate Display can be programmed to display the actual material output rate in
any units desired (pounds/minute, kilos/hour, grams/second). The Rate display can
also be programmed as a counter for either counting the number of strokes or material
output total. See appendix A for more detail on programming the display.
