Mini Link Operations Manual
Rev. 08/2013 Page | 19

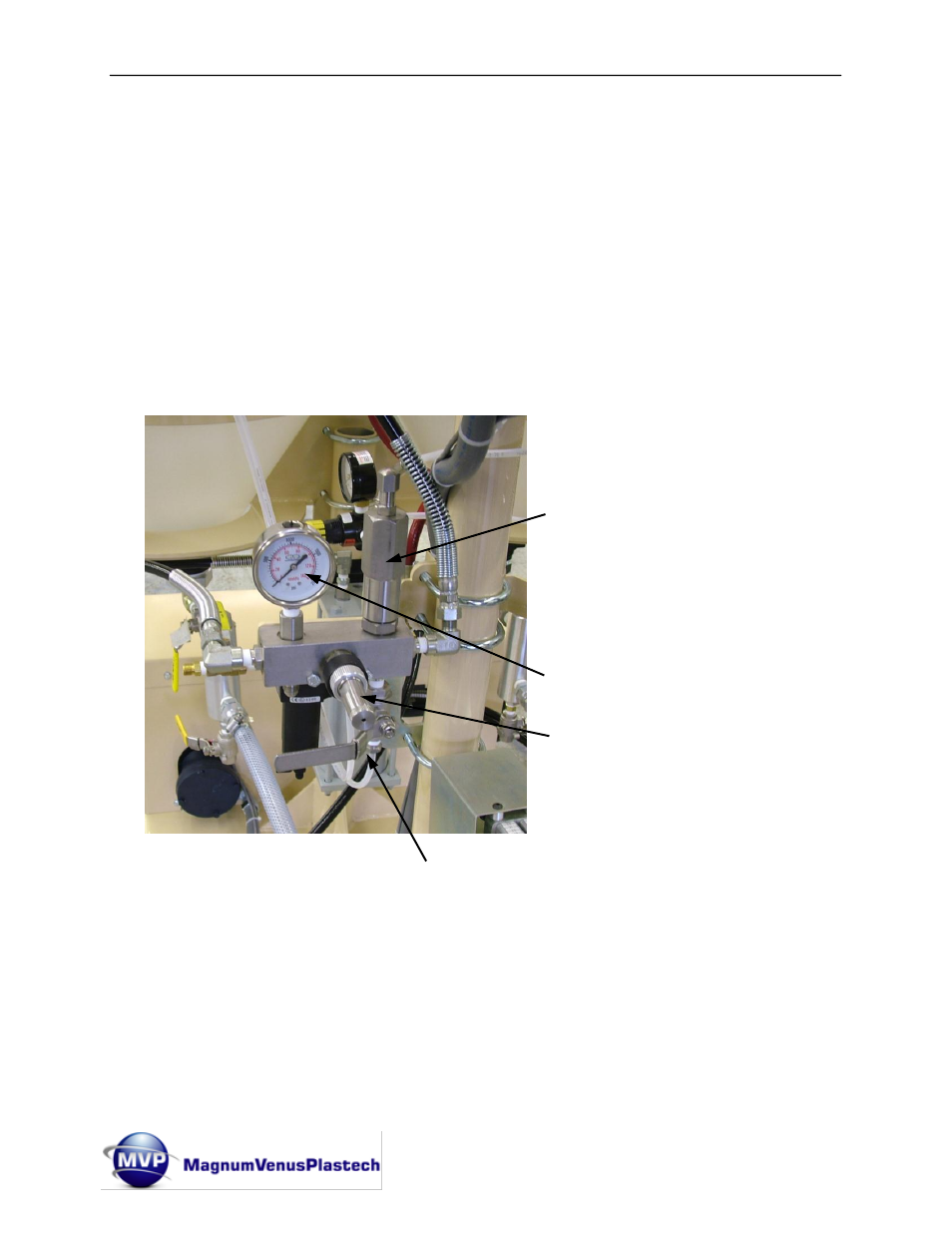

Material Accumulator
Safety Relief Valve
Material Pressure Relief Valve
Fluid Pressure
– Material Manifolds:
 FLUID PRESSURE GAUGE – This displays the fluid pressure for each of the two
components. These are located at the material manifold for each material.
 MATERIAL PRESSURE RELIEF VALVE
– the valve is used to relieve the
material fluid pressure back to the source container.
 SAFETY RELIEF VALVE – the safety relief valve will automatically open to
prevent excessive fluid pressure. The safety relief valve is set to open at a preset
pressure and returns the material to the source container.
Material Manifold:
Fluid Pressure Gauge
