Liquid Controls IT300N-BBL - Manual (Page 8)

7
RATE
TOTAL
CLR ToT
FDEC
12345678
M
RUN MODE
CLEAR TOTAL
FACTOR
DECIMAL
FAC
100
FACTOR
0000
ent Code
ENTER CODE
If panel
lock ON
If panel
lock OFF
If code
correct
If code
incorrect
FAC
10poInt
FACTOR
TYPE
10poInt
lInear
lInear
selected
E
M
E
E
M
E
M
E
M
10poInt
selected
Fr#
#####
FaC#
#####
If Fr# = 0
If FAC# = 0
# = 10
E
M
E
M
1000
FAC nnUL
FACTOR
MULTIPLIER
E
M
1
10
100
1000
YES
SET 10PT
E
M
YES
No
SET 10PT
YES
selected
No
selected

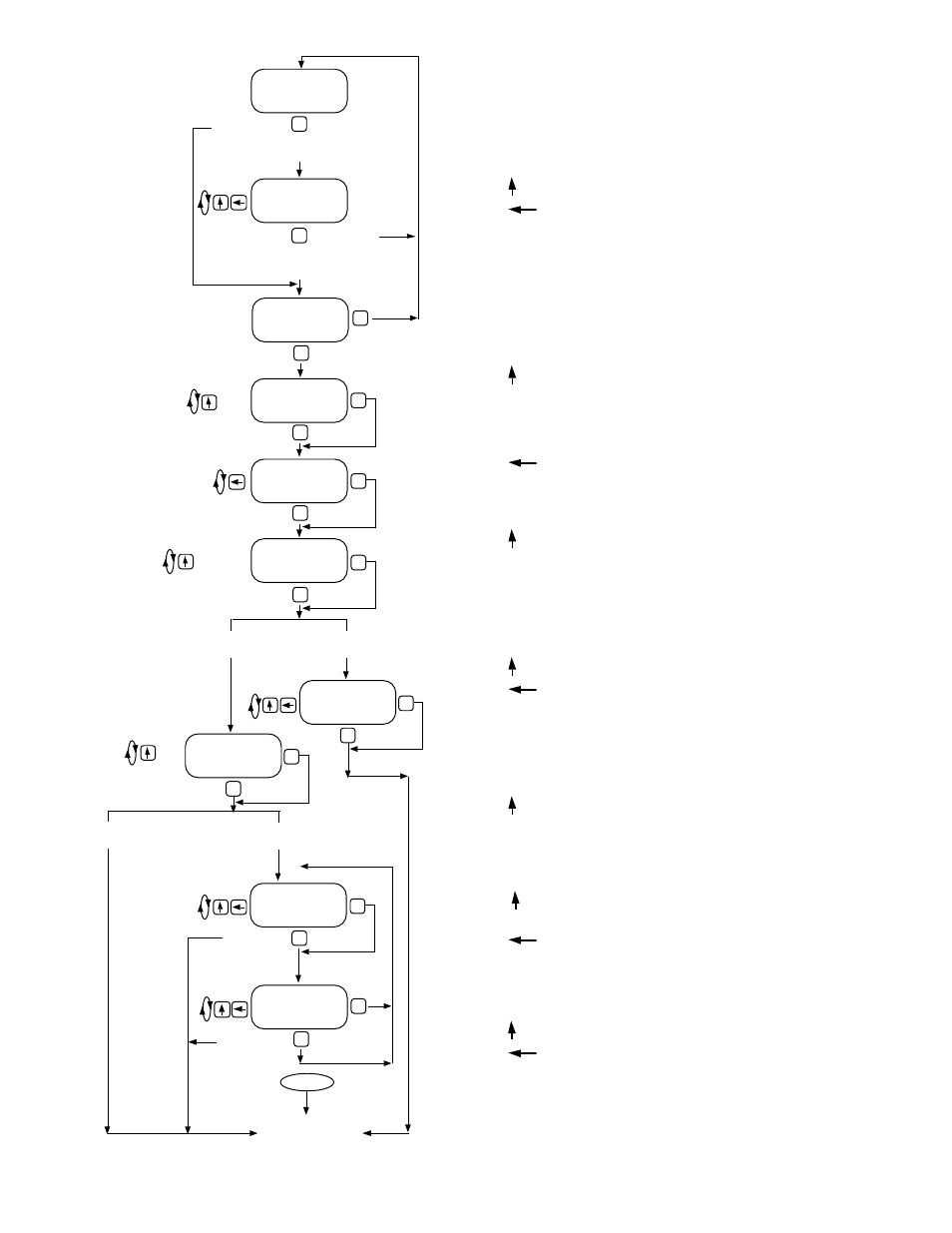

Press the M key to enter the programming menu.
The
SET 10pt
prompt will only appear if
10 point
is selected. This allows
users to bypass the 10 point set up and keep the existing values.
Press the key to choose YES or NO.
Press the E key to enter the displayedselection.
Press the M key to skip (same as selecting NO).
If the panel lock is on, you must enter the 4 digit lock code to gain access
to the menu.
Press the key to increment each individual digit of the code.
Press the key to advance to the next digit.
Press the E key to enter the displayed code.
If the code is correct, display advances to "
clr tot ", if not, display returns
to run mode
Press the E key to clear the totalizer and return to the programming menu.
Press the M key to skip and go to next menu item.
Press the key to choose the factor multiplier (
1
,
10
,
100
,
1000
).
Press the E key to enter the displayed factor multiplier.
Press the M key to skip and keep the existing factor multiplier.
Press the key to step the factor decimal to the desired location.
Press the E key to enter the displayed decimal location.
Press the M key to skip and keep the existing location
Press the key to choose factor type (
10point
or
linear
).
Press the E key to enter the displayed factor type.
Press the M key to skip and keep the existing factor type.
Press the key to increment each individual digit of the factor for point #.
Press the key to advance to the next digit.
Press the E key to enter the displayed factor.
Press the M key to skip and keep the existing factor.
If 0 is entered, the display will advance to the next prompt (tdec).
Press the key to increment each individual digit of the frequency for
point #.
Press the key to advance to the next digit.
Press the E key to enter the displayed frequency.
Press the M key to skip and keep the existing frequency.
If 0 is entered, the display will advance to the next prompt (tdec).
The FAC prompt will only appear if linear is selected or if the unit was
ordered without the 10 point linearization option.
Press the key to increment each individual digit of the factor.
Press the key to advance to the next digit.
Press the E key to enter the displayed factor.
Press the M key to skip and keep the existing factor.
