3 removing the front panel – Liquid Controls IT375 User Manual
Page 27
Sponsler, Inc.
Model IT375
Installation Pg. 27
9.3 REMOVING THE FRONT PANEL

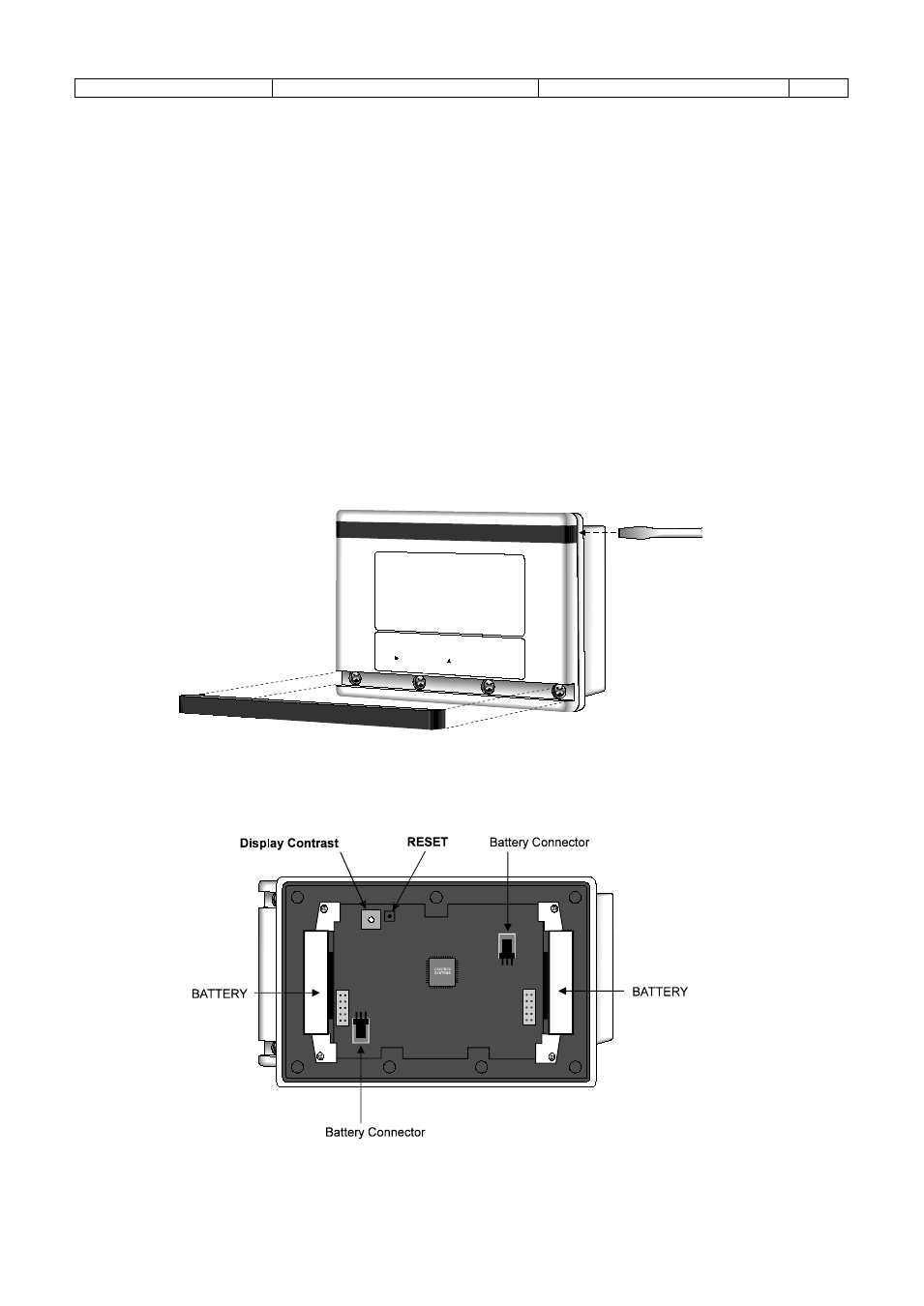

The front panel should be removed as follows:
1. Remove the top and bottom cover strips (ie. the dark plastic strip) by levering a screwdriver under one end.
2. Undo the screws retaining the front. Do not remove the screws, they are retained by O-rings.
3. Remove the front panel from the housing.
To replace the front cover, reverse the above procedure. Ensure that the front panel is aligned at connector points before
tightening the screws.
9.4 THE MAIN ELECTRONICS
The front section of the housing contains the microprocessor and display. It is possible to adjust the display contrast via
a small potentiometer on the board. The Display Contrast is shown below and this can be adjusted for optimum contrast
and clarity.
Adjacent to this control is a RESET switch which can be used to reset the microprocessor.
Note: Depressing the RESET switch will reset all totals to zero.
