Liquid Controls Precision Turbine Flowmeters User Manual
Page 7

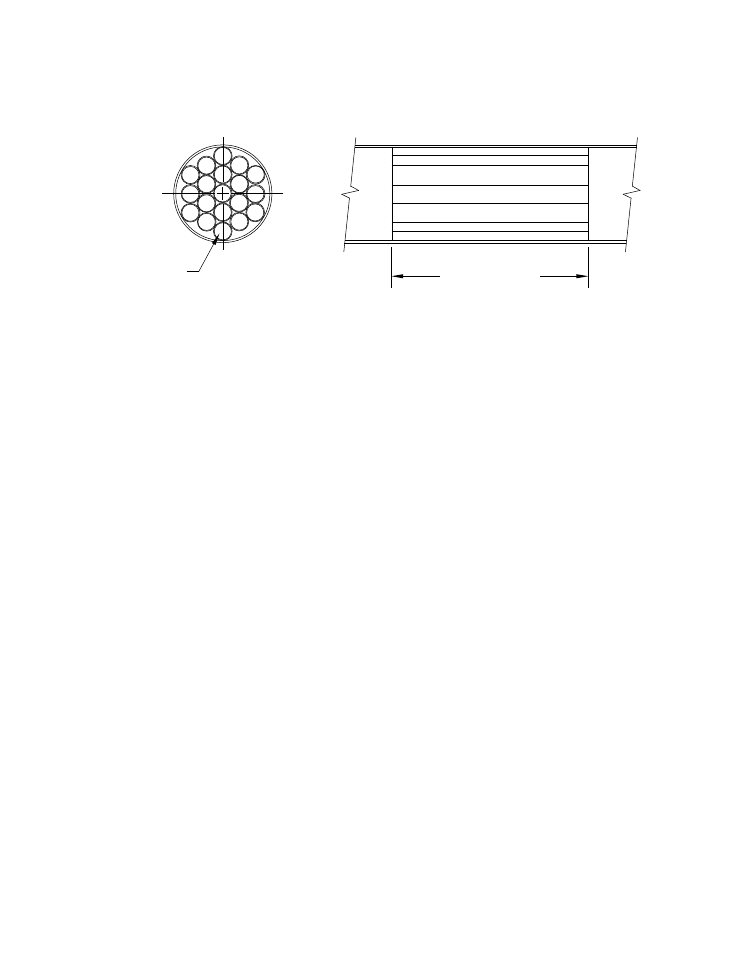

TYPICAL FLOWSTRAIGHTENER SECTION
1/5 DIAMETER
2 DIAMETERS
Flowstraightener- A full cluster of thin wall tubes fixed within a section of pipe.
The length of the internal tubes is equal to 2 diameters of outer pipe.
The diameter of internal tubes is equal to approximately 1/5 the inside diameter of outer pipe. This
requires 18 to 20 such tubes.
Pg.5
