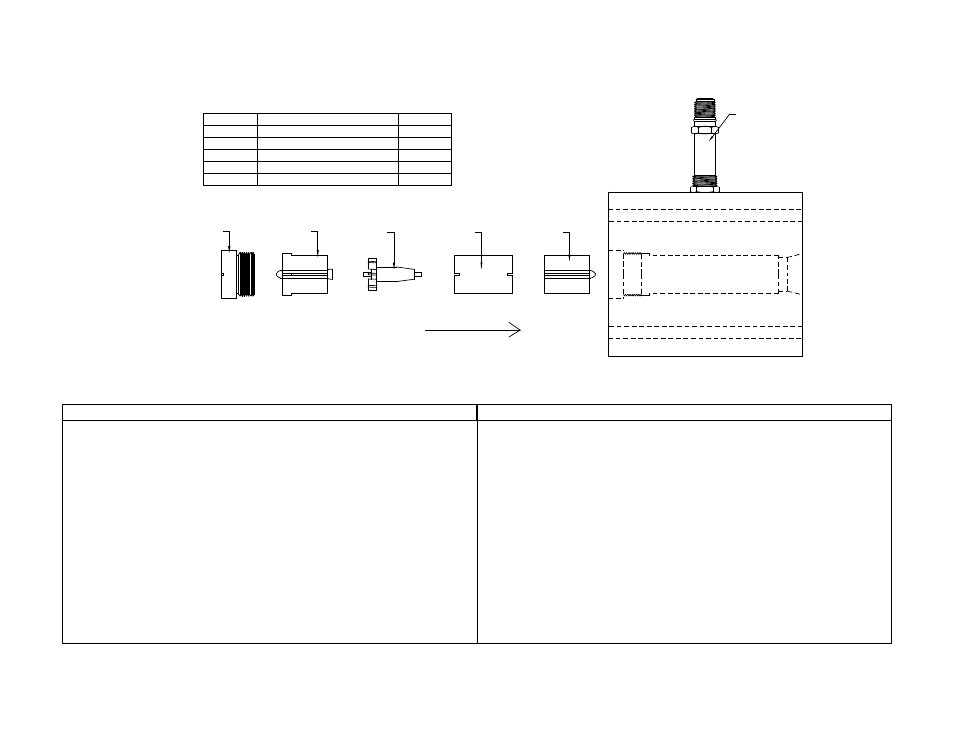

FIGURE 5: CORROSIVE SERIES FLOWMETER
CORROSIVE SERIES HOUSING
ASSEMBLY.
DIRECTION OF RE-
5 4 3 2 1
PICKUP COIL
NOTE: HAND TIGHTEN
DO NOT USE FORCE
FLOW
DISASSEMBLY FOR CORROSIVE METERS REASSEMBLY FOR CORROSIVE METERS
1. Unscrew end nut from housing.
2. Retract upstream hanger from housing.
3. Remove rotor. NOTE: Pivot is pressed into rotor DO NOT ATTEMPT
TO REMOVE.
4. From opposite end of housing, push sleeve and downstream hanger
through upstream end of housing.
5. Review all parts for damage. Be sure the bearings in the end of the
hangers are still intact. Clean off all debris before reassembling.
NOTE: If any part appears damaged DO NOT REASSEMBLE, call factory
for instructions.
1. Assemble internals as illustrated.
2. From upstream end of housing, insert internals into housing.
It may be necessary to tilt the meter housing slightly for easier insertion
of the internals.
3. Screw in end nut and tighten.
NOTE: For proper operation, internals must be housed.
For liquid applications: internals work best when wet.
ITEM DESCRIPTION QTY
1 END NUT 1
2 UPSTREAM HANGER 1
3 ROTOR/PIVOT ASSEMBLY 1
4 SLEEVE 1
5 DOWNSTREAM HANGER 1
Pg.10
