lCP seTuP TesT
node:
The unique node address for the DMS or LCR 600 which will
be tested for communication. This is the node address used by
DBManager (Liquid Controls’ database management software
for the office computer) to identify the units in the fueling system
network. This field value must be unique among units in the
network and have a matching Node # in the Registered Files
Server Nodes of the DBManager.
IP Config:
Clicking the button activates IP Configuration settings.
Serial Config:
Clicking the button activates Serial Configuration settings.
Target IP address:
The IP address of the device the computer is communicating with,
using TCP/IP protocol
Target IP Port:
The IP port number of the device the computer is communicating
with, using TCP/IP protocol
Test
Sends signal to test communication with a specific DMS or LCR
600 unit—set to the Node: setting—in the network.
done
Saves settings that appear in the window and closes the window.
When testing communication with a DMS,
ensure the LCP File Server is running.
DBManager must be closed when testing
communication with LCP Setup.
seTuP -
lCP seTuP

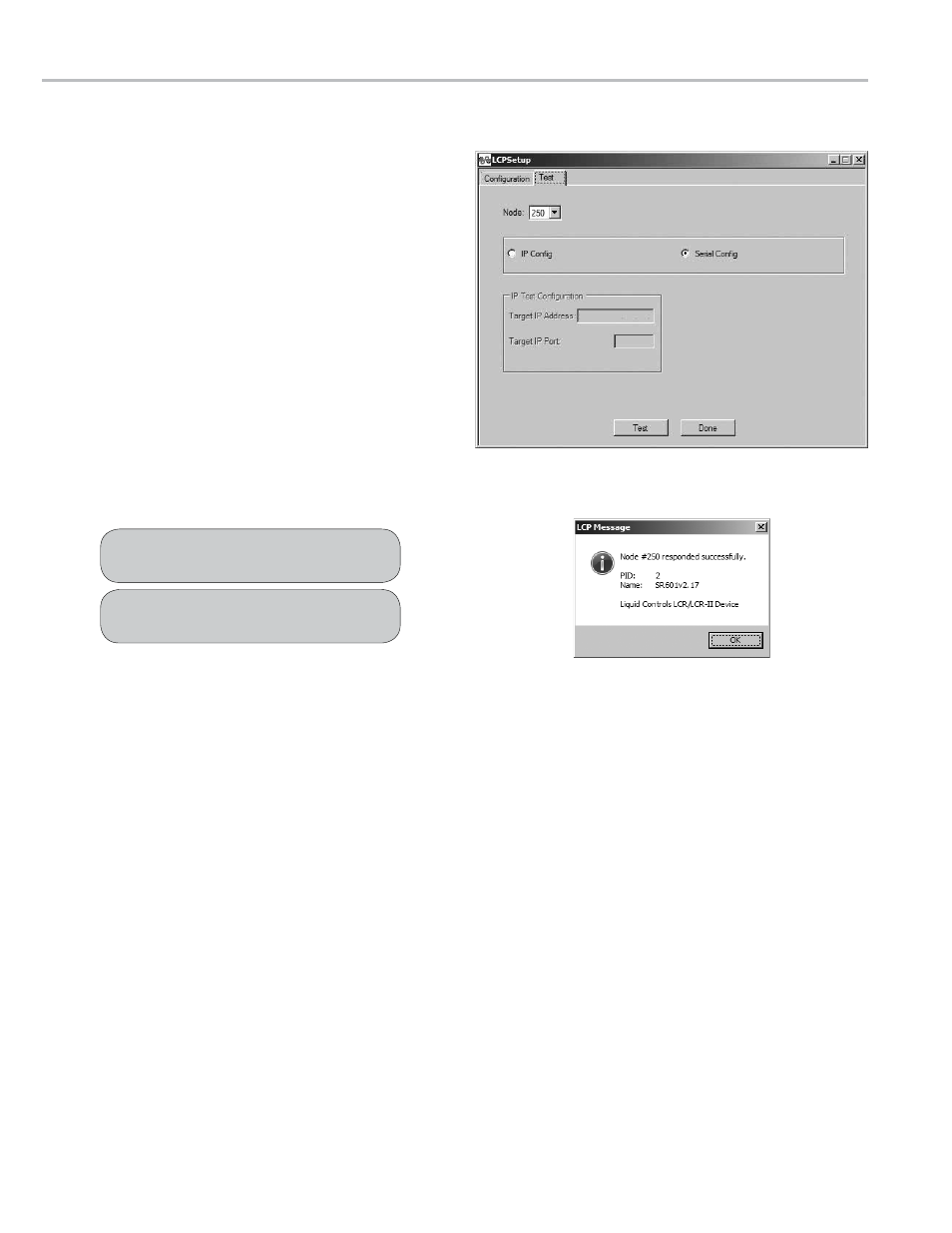

LCP Setup - Test
LCP Setup - Test Success
