lCP seTuP ConfIguraTIon
retries:
After an initial failed attempt, the number of attempts the computer
will try to make a connection with the wireless communication network
before timing out. (1 is the default value)
Timeout (ms):
The amount of time the computer will wait for a response once a signal
is sent to a wireless network, before timing out. (2000 is the default
value).
IP Config:
Clicking the button activates IP Configuration settings.
Serial Config:
Clicking the button activates Serial Configuration settings.
local IP Port:
A port where TCP/IP communication can be heard. To get around
existing firewalls, your office PC will need to be configured so that TCP
data is accepted at this port number.
lCP setup
LCP Setup sets up the communication link at your PC or server in the office, configuring the office computer
for wireless communication. LCP Setup contains settings for IP configurations (Wifi and cellular) and serial
configurations (radio and direct serial cable). For successful data transmission, the settings in LCP Setup must be
configured to match the communication settings of the DMSs, LCR 600s, and wireless transmission devices in the LC
fueling network. LCP Setup includes a Test tab, where connection between the computer and a specific DMS or LCR
600 (or another computer) can be tested.

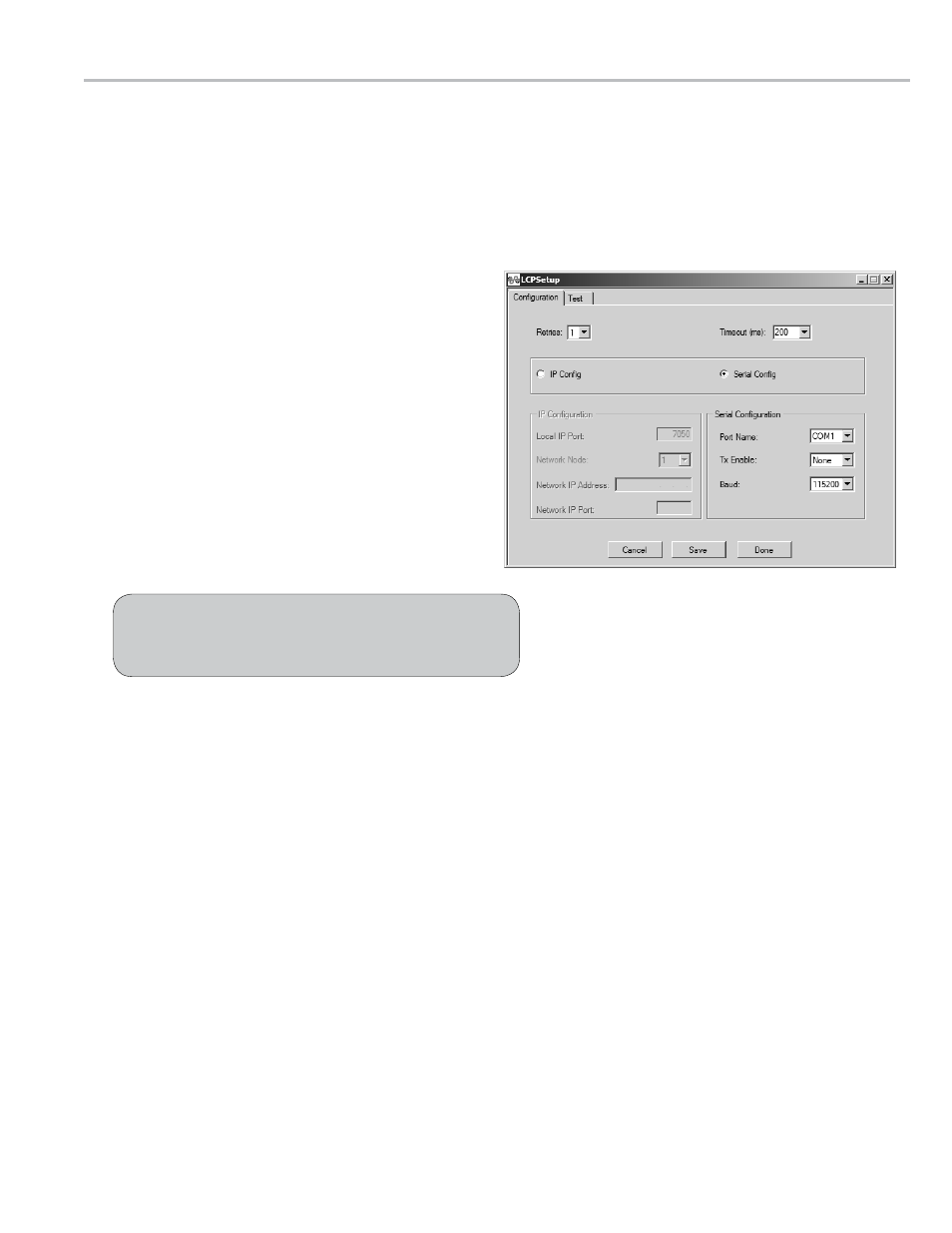

LCP Setup - Configuration
Value must match value in the cell modem’s internal setting
(see cell modem manual for setting its IP port). Liquid Controls
recommends 7050 for the value. It is not a common IP Port number
used by other programs such as ftp and email applications.
network node:
The LCP network node number of the device the computer is communicating with. 1-255 range
network IP address:
The IP address of the device the computer is communicating with, using TCP/IP protocol
network IP Port:
The IP port number of the device the computer is communicating with, using TCP/IP protocol
Port name:
The computer’s serial communication port the data communication device is connected to.
TX enable:
The setting for the serial signal transmit and receive handshake technique to the data communication device. None is the default setting.
None • !RTS • RTS • !DTR • DTR • !RTS!DTR • RTSDTR
baud:
The communication speed. This value should match the wireless device. 57600 is the standard communication speed, but check your
wireless device specifications to ensure the proper selection.
115200 • 57600 • 19200 • 9600 • 4800 • 2400
Cancel
Closes the window without saving.
save
Saves settings that appear in the window.
done
Saves settings that appear in the window and closes the window.
lCP seTuP
- seTuP
