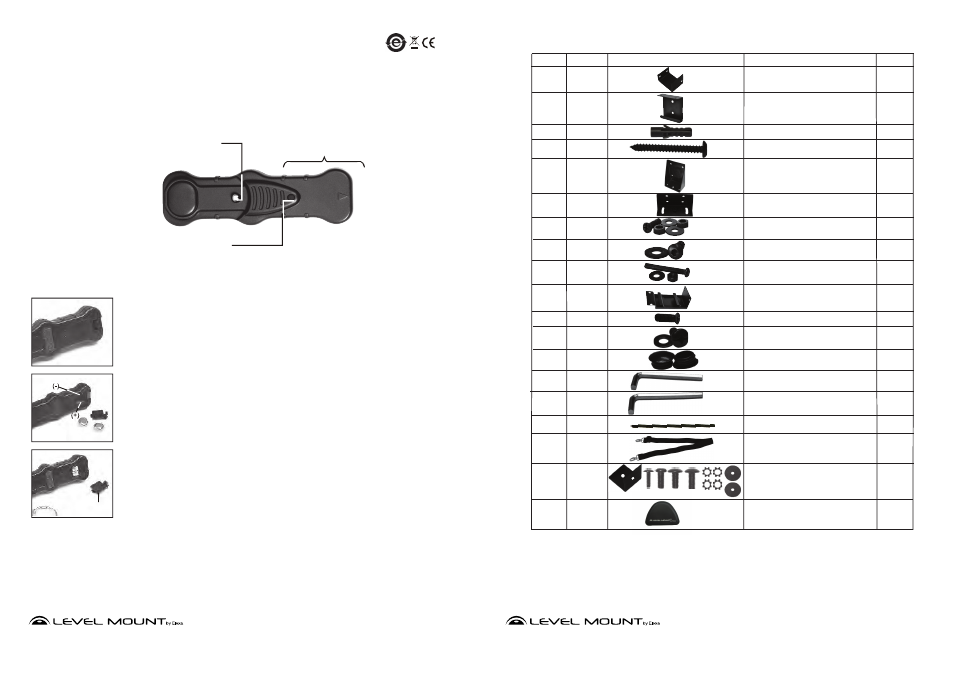

Operating Button
ON: Press and Hold
OFF: Release
Multi Indication LED
• Auto-Calibration (Solid Bright Red Light)
• Ready To Use (Solid but Dimmer Red Light)
• Stud Edge (Blinking Red Light)
Stud Sensor
Battery Replacement:
Note: Only use the batteries specifi ed (1.5V, AG13, LR44, L1154, A76 or 157). Put positive and negative pole in the right place.
Do not throw away used batteries in the household garbage. Give them to the collections station or dispose of them at a
special garbage depot that accepts batteries. Remove depleted batteries from the product. Non-rechargeable batteries
must not be recharged. Do not use different types of batteries and do not mix new and used batteries. Do not short-circuit
connector clips (which you could do, for example, by touching the connector clips with something metallic). Do not mix
alkaline, standard (carbon-zinc), or rechargeable batteries.
Stud Finder Instructions
Cover
Specifi cations:
The operating temperature range is from 14°F to 122°F (-10°C to +50°C), with the best temperature being up to 77 F (25°C),
humidity below 60% and altitude up to 6,500 feet (2,000 meters). Do not use the Stud Finder in conditions that are not within
these parameters or it may not function correctly.
1. The detector must not be used in the presence of moisture such as dew or rain.
2. Do not operate the detector with the battery cover removed.
Step 1 – Remove Battery cover
Remove the back cover and the old batteries.
Step 2 – Battery Replacement
Replace the 2 button cell batteries with two 1.5V batteries, number AG13, LR44, L1154, A76 or 157.
When installing the batteries into the unit, place the positive (+) side of the battery away from the
spring inside the unit.
Step 3 – Replace Battery Cover
Replace the back cover.
33
www.levelmount.com
1-888-229-1459
EU: +44 844 5672657
UK: 0844 5672657
©2011 Level Mount - Patents Pending
Contenu de la boîte
Support plat
Support mural
Cheville pour béton
Tire-fond
Support de montage
(UNIQUEMENT ELTVS55M, ELTVM75)
Support à rotule
(UNIQUEMENT ELTVS55M, ELTVM75)
Vis, boulon de tige et rondelles
métalliques de 30 mm
(UNIQUEMENT ELTVS55M, ELTVM75)
Vis et rondelles de 30 mm
(UNIQUEMENT ELTVS55M, ELTVM75)
Support arrière de montage
(UNIQUEMENT ELTVS55M, ELTVM75)
Vis métallique M6 de 15 mm
(UNIQUEMENT ELTVS55M, ELTVM75)
Capuchons en plastique
(UNIQUEMENT ELTVS55M, ELTVM75)
Clé Allen de 5 mm
Vis, écrou et rondelle de 60 mm
(UNIQUEMENT ELTVS55M, ELTVM75)
Vis et rondelle métalliques M6
de 10 mm
Clé Allen de 6 mm
Barre métallique de 580 mm
Sangles de sécurité
Support télé, M4, M5, M6, M8
Boulons, Joints et Joint de
verrouillage
(UNIQUEMENT ELTVS55, ELTVS60)
Repère n° ID de pièce Image Description Qté
Médiator pour les Revêtements
de finition
21 T
U
P2
V
X
Y
29
Z
ZA
XB
XC
NE
AB
AC
30
31
32
33
34
35
36
ND
K2
1
1
2
2
1
2
1
6
1
2
6
2
1
22
23
24
25
XA 1 26
27
28
2
2
37 S2 2
38 U2 2
39 ZZ 1
