Laurel Electronics LTSE6 - Manual User Manual
Page 5
-
- 5 -

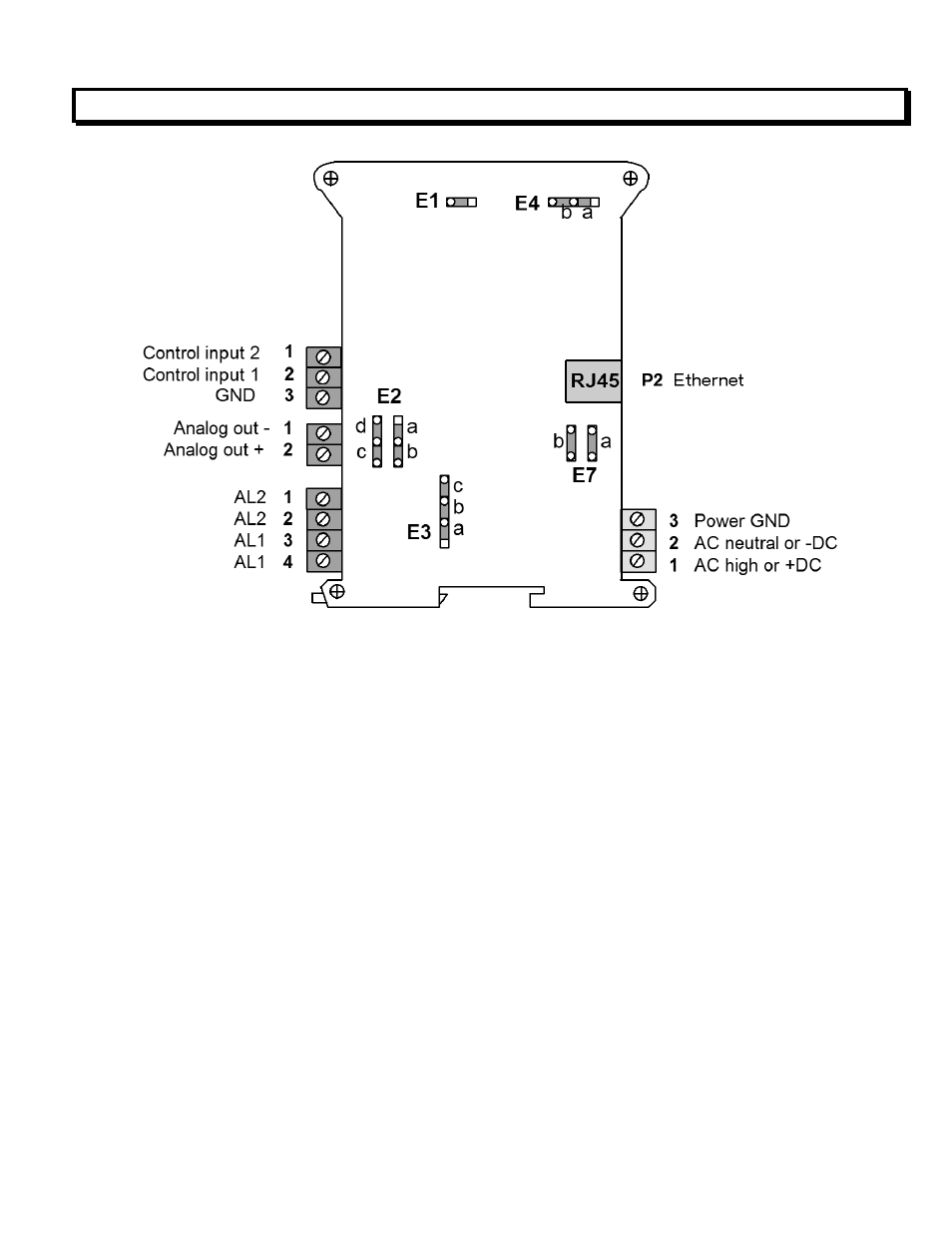

6. TRANSMITTER FIELD WIRING & JUMPER SETTINGS
Jumpers at E2 are used to select voltage or current output. For 4-20 mA or 0-20 mA current,
jumper E2 a + d. For 0-10V voltage, jumper E2 b + c. The factory default setting is current.
Jumpers at E3 and E4 are used with counter transmitters to select an excitation output. This does
not apply to serial input transmitters, which do not use a signal conditioner board.
Temporarily placing a jumper at E1 followed by power-up will reset communications to the
default values of 9600 baud, command mode, Custom ASCII protocol, and Address 1.
HOW TO OPEN & CLOSE THE CASE
Changing jumper settings requires opening the case, whose two clamshell halves are held together
by 4 nuts and 4 bolts. When opening the case, be careful not to lose the nuts, as these are not
captive. When closing the case, make sure that the ventilation grills are properly aligned. Note that
most users will never have the need to open the transmitter case, since our transmitters are
shipped jumpered for the model number on the label.
