Page 14
-
- 14 -

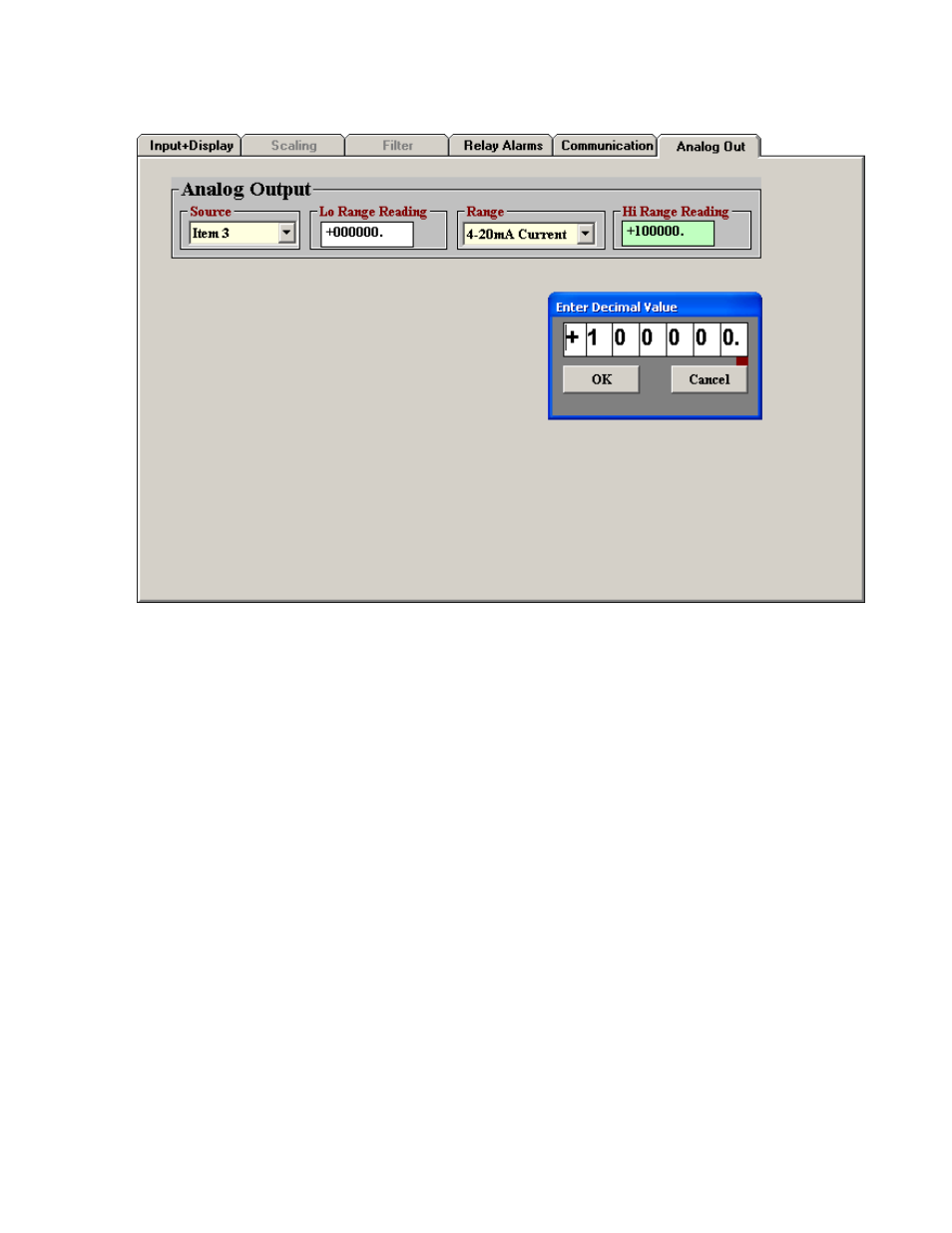

SETTING UP THE ANALOG OUTPUT
Under the
Analog Out
tab, set
Source
to
Item 3
. Under
Range
, select
0-20 mA Current
,
0-10V
Voltage
, or
4-20 mA Current
as your desired analog output. Type in your
Lo Range Reading
and
Hi
Range reading
. These will create the two endpoint values of your analog output range.
