Finalize Loop Installation



Combining Loops or Detectors

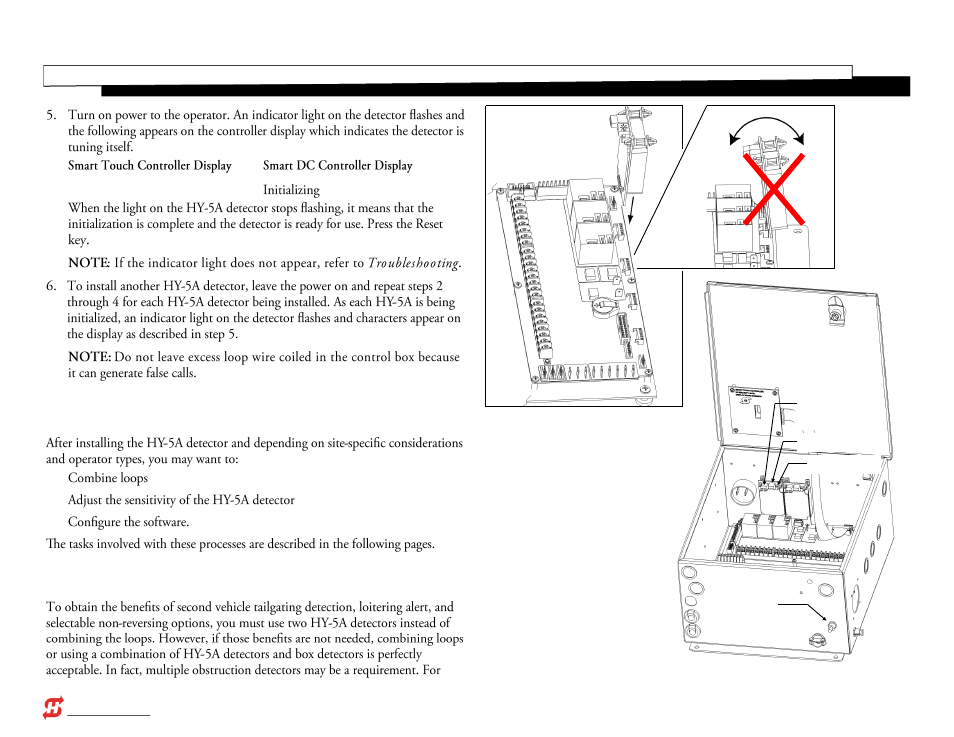

Diagram 6. HY-5A detectors installed
Screw terminals
for loop wire
Diagram 5. Correct orientation and
installation of the HY-5A detector
Sensitivity dial
Indicator light
HY-5A HY-5A
Power switch
CAUTION: Do
NOT flex or
wiggle the
HY-5A detector
as damage may
occur to the
Controller
socket or the
detector’s pins.
