Table 1: vehicle loop labels – Controlled Products Systems Group MX000041 User Manual
Page 2
age 2 of 5
P/N MX000041 © 2013 D0306 Rev. B
Use Current Version of Software

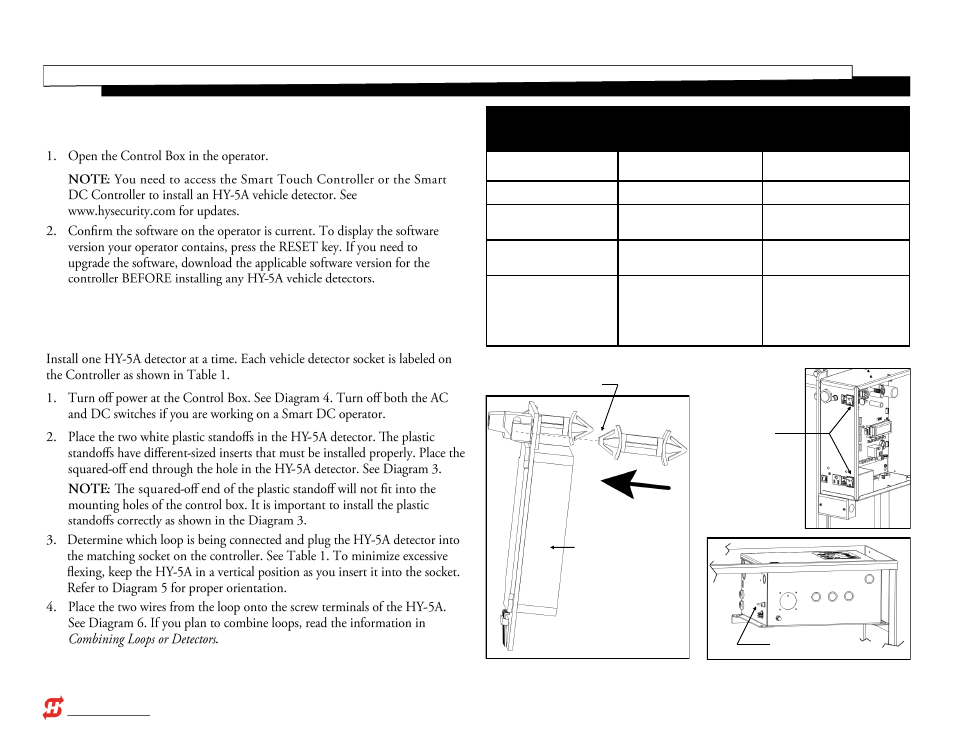

Install HY-5A Vehicle Detectors
Table 1: Vehicle Loop Labels
Smart Touch Controller
Smart DC Controller
Description
Free Exit
Exit Loop
Opens a fully-closed gate.
Inside Obstruction
Inside Obstruction
Connects to the inside reversing
loop
Outside Obstruction
Outside Obstruction
Connects to the outside reversing
loop
Shadow/Reset
Center Loop
Prevents a gate from starting open
or closed when a vehicle is in the
path of the gate. Shadow loops
apply to swing gates. Reset loops
are found on arm gates.
Squared-off end of standoff
Smart Touch
Control Box
Power toggle switch
Swing Smart Control Box
Power switches
Turn off both the DC
and AC switches.
Diagram 3. Insert Plastic Standoffs
Diagram 4. Control Boxes
HY-5A vehicle
detector.
