Install the second Spindle Hub assembly on the Main Housing. Check the amount of backlash present
between its Gear and the Gear on the Input Shaft. The amount of backlash between these two Gears needs to
be set to the same amount that was set on the first Gear mesh. Add or subtract Shims as required. Once this
adjustment is made, remove the Hub Cap and apply sealer as before, then reinstall on Housing. Install all eight

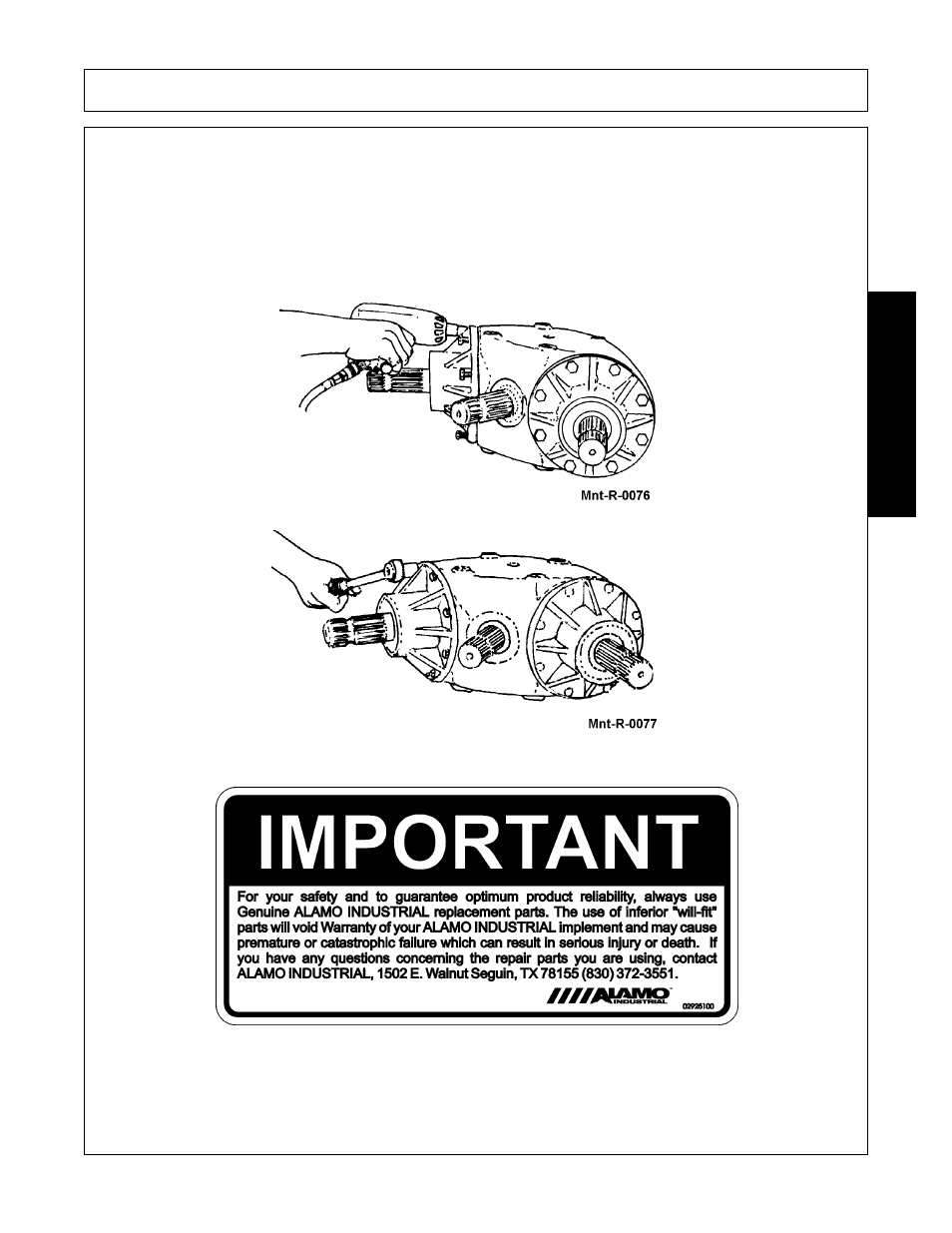

bolts and tighten to a torque of 31 to 34 foot pounds. FIGURE Mnt-R-0076-0077.
The assembly should now be filled with a good grade of NLGI 000 Grease.
