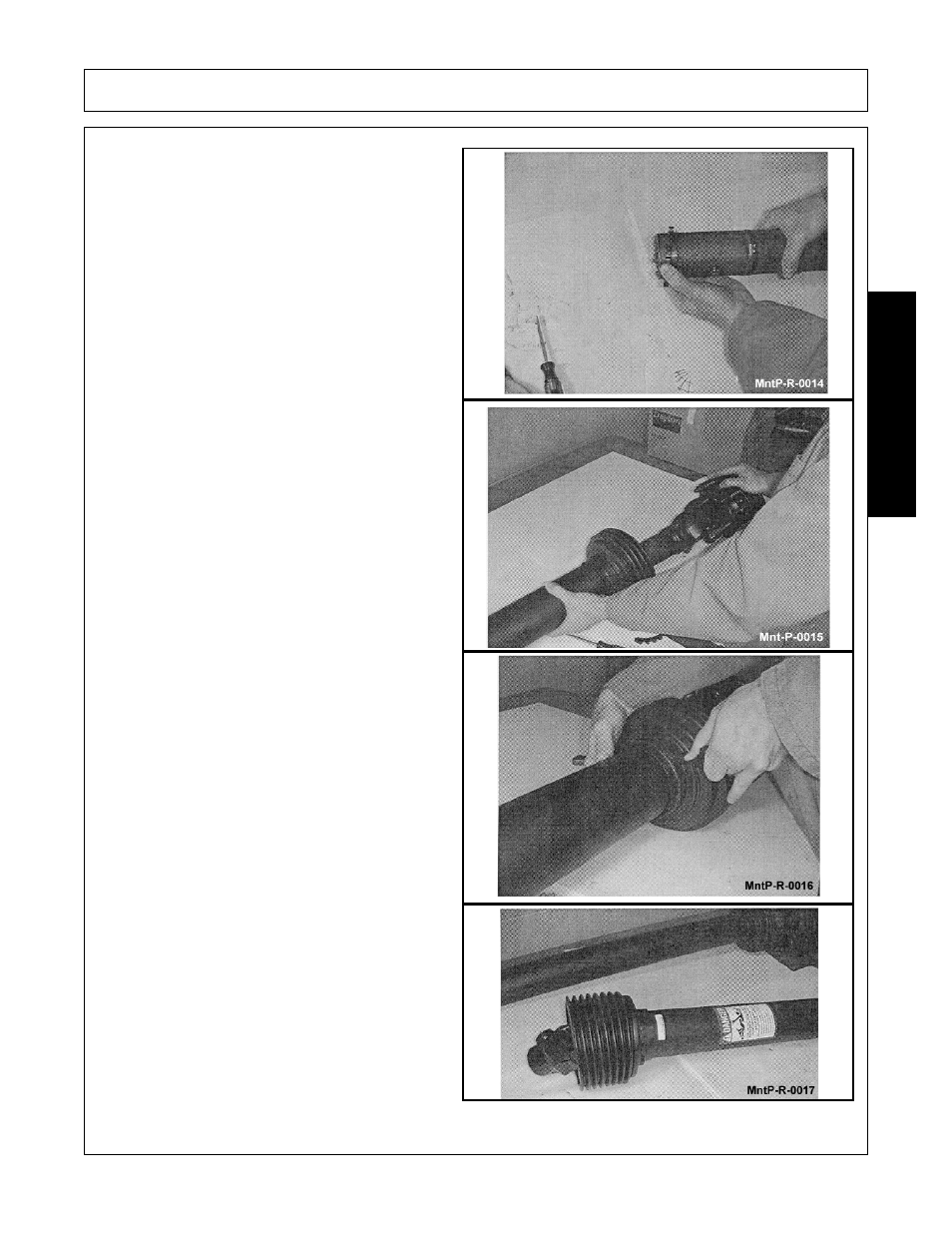

Figure MntP-R-0014) Grease and install the sleeve
baring in groove at the end of the sleeve (only on
one half shaft).
Figure MntP-R-0015) Slide the shield tube
assembly over the shaft, so that the bearing holes
in the shield align with the shield bearing groove on
the yoke.
Figure MntP-R-0016) Install two shield bearings per
half shaft by pushing one bearing in each bearing
hole. The shield bearings should be installed in the
direction of the shaft rotation relative to the shields
Figure MntP-R-0017) Attach safety decal as
needed.
