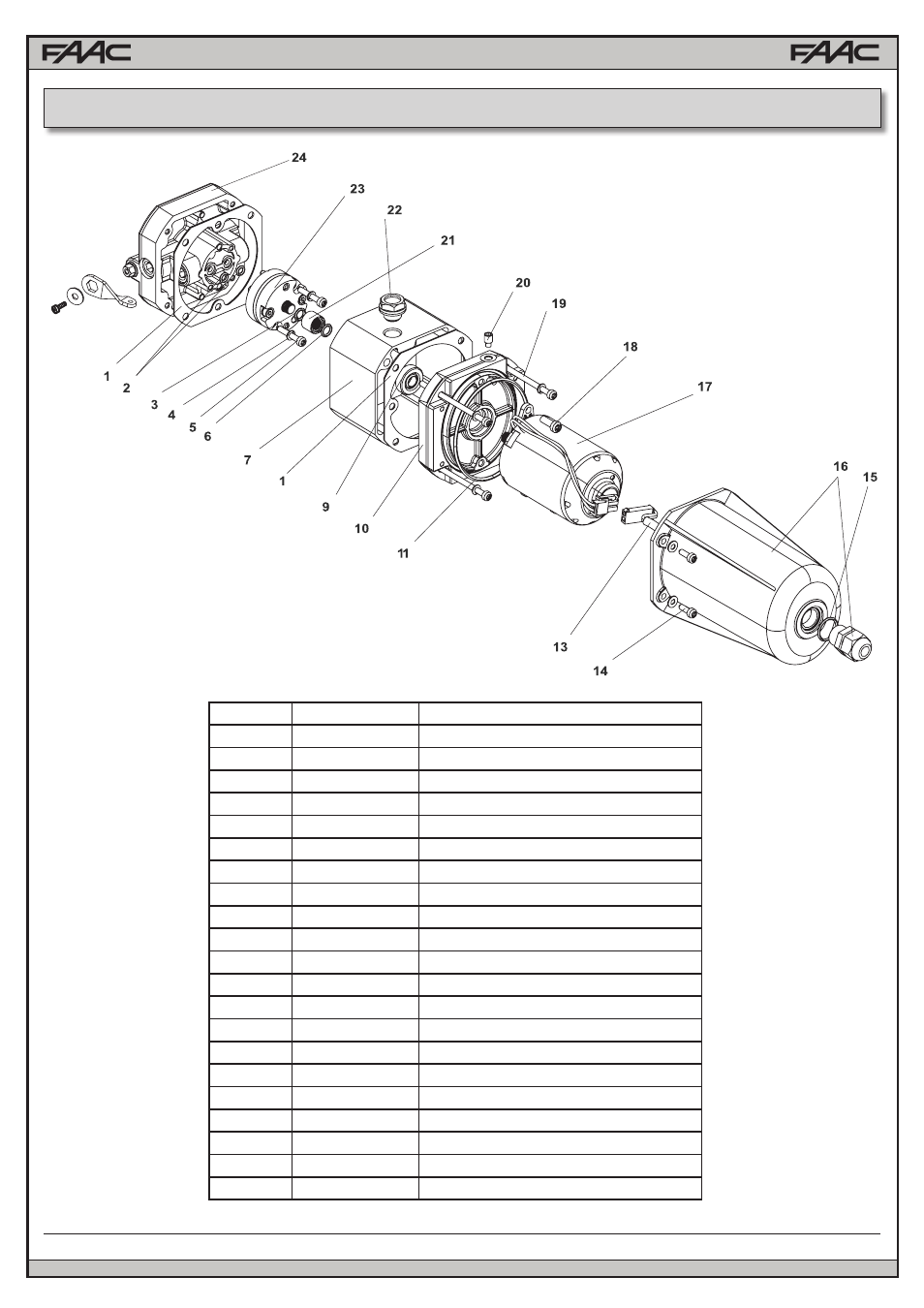

7. S800H PARTS DIAGRAM
1 63000276 GASKET FOR TANK
2 7090010015 SEAL OR 4.48X1.78
3 7090030015 GASKET OR 6.75X1.78
4 703101 WASHER GROWER 4 1751 Z
5 701632 SCREW TCEI M4x25 UNI 5931 8G Z
6 7090030015 GASKET OR 6.75X1.78
7 63000266 24 V HYDR. UNIT TANK
9 63000306 N7MMR TYPE GASKET
10 63000376 S800H MOTOR FLANGE
11 7090100025 GASKET OR 72.69X2.62
13 63001665 S800H UL MOTOR CABLE
14 701103 TCEI 4X 12 5931 INOX
15 7090190015 GASKET OR 14.00X1.78
16 63002635 S800H MOTOR COVER
17 63000376 S800H MOTOR
18 701072 SCREW TCEI 5X 14 5931 8.8 Z
19 701975 SCREW TCEI M4x75 UNI 5931 INOX
20 701245 STEI M6x8 UNI 5925 + VEBLOCK 360°
21 63000256 BUSH FOR PUMP SHAFT
22 7110015 CAP
23 63000246 0.5 LT 10010 PUMP
24 63000226 CB FLANGE
