Page 5
December, 2003
422 Operator And
455 D Control Panel Installation Manual
U
NPACKING THE
O
PERATOR
When you receive your 422 Compact Operator,
complete the following steps.
Inspect the shipping box for physical damage such as
leaking oil or a torn carton. Then inspect the operator
after you remove it from the box. Notify the carrier
immediately if you note any damage because the
carrier must witness the damage before you can file a
claim.
As you unpack the box, insure that all the following
parts included (see Figure 1). If you have ordered a kit
(a pair of operators), you will have twice the quantity
of parts listed below (except where noted), and you
will also have a radio receiver and two transmitters.
1 422 Operator - 1 each
2 Protective Cover - 1 each
3 Protective Cover Screw - 1 each
4 Protective Cover End Cap - 1 each
5 Rear Mounting Bracket - 1 each
6 Rear Mounting Plate (optional) - 1 each
7 Short Brass Pin with 8mm nut and washer - 1 each
8 Rear Fork - 1 each
9 Long Brass Pin with 8mm self-locking nut - 1 each
10 Swivel joint with jam nut and washer - 1 each
11 Front mounting bracket with nut and bolt
12 Locking cap cover and key for Manual Release - 1 each

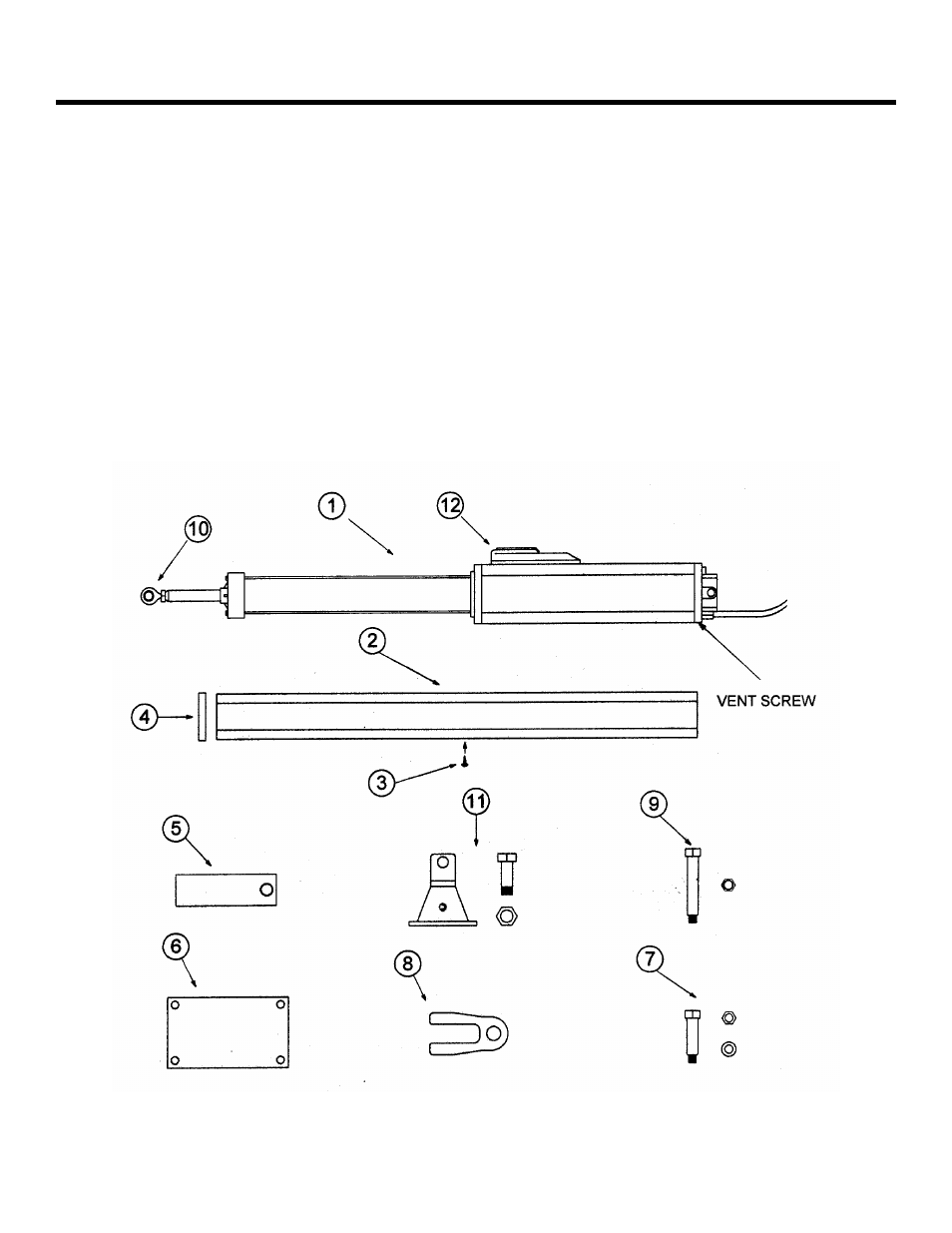

Figure 1. The 422 Compact Operator
