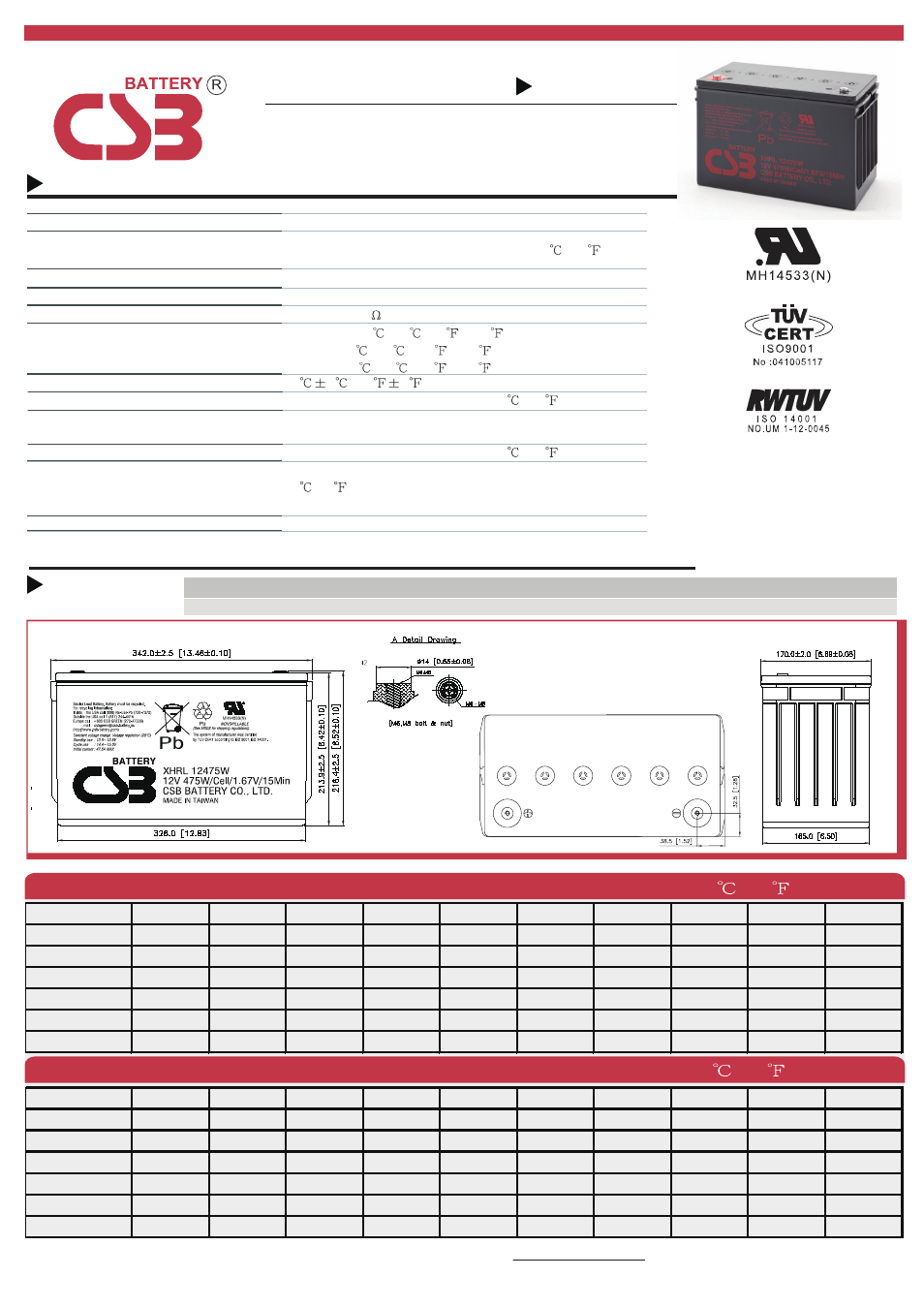

CSB Battery XHRL12475W - Manual

XHRL12475W is specially designed for high efficient
discharge and long life application. Its characteristics are
high energy density, small footprint and high discharge
efficiency. It can be used for more than 260 cycles at 100%
discharge in cycle service, up to10 years in standby service.
Cells per unit
Voltage per unit
Capacity
Weight
Maximum Discharge Current
Internal Resistance
Operating Temperature Range
Nominal Operating Temperature Range
Float Charging Voltage
Recommended Maximum Charging
Current Limit
Equalization and Cycle Service
Self Discharge
Terminal
Container Material
6
12
475W @15 min-rate to 1.67V per cell @25 (77 )
Approx. 35.3 kg (77.82 lbs)
800A(5sec)
Approx. 3.7 m
25 3 (77 5 )
13.5 to 13.8 VDC/unit Average at 25 (77 )
47.5 A
14.4 to 15.0 VDC/unit Average at 25 (77 )
CSB Batteries can be stored for more than 6 months at
25 (77 ). Please charge batteries before using. For
higher temperatures the time interval will be shorter.
I2-Thread lead alloy recessed terminal to accept M6/M8 bolt
Polypropylene(UL 94-HB) & Flammability resistance
of (UL 94-V0) can be available upon request.
Discharge: -20 ~50 (-4 ~122 )
Charge: -20 ~50 (-4 ~122 )
Storage: -15 ~40 (5 ~104 )
Constant Power Discharge Characteristics Unit:W (25 ,77 )
Constant Current Discharge Characteristics Unit:A (25 ,77 )
XHRL12475W
12V 475W
Specification
Powered by
Width (W)
Dimensions :
Unit: mm (inch)
Overall Height (H) Container height (h) Length (L)
216.4±2.5 (8.52±0.10) 213.9±2.5 (8.42±0.10) . 342.0 ±2.5 (13.46±0.10) 170.0±2.0 (6.69±0.08)
F.V/Time 2MIN 4MIN 6MIN 8MIN 10MIN 15MIN 20MIN 30MIN 60MIN 90MIN
1.60V 694 582 468 401 349 264 214 155 86.0 60.6
1.67V 614 522 431 376 331 254 209 152 84.8 59.4
1.70V 585 490 413 363 320 249 206 150 84.2 59.1
1.75V 549 437 381 334 301 237 199 145 82.3 57.8
1.80V 445 389 338 304 274 218 184 136 78.8 55.9
1.85V 383 327 296 268 240 198 164 124 73.2 52.6
F.V/Time 2MIN 4MIN 6MIN 8MIN 10MIN 15MIN 20MIN 30MIN 60MIN 90MIN
1.60V 6,951 5,678 4,791 4,197 3,702 2,912 2,373 1,739 991 709
1.67V 6,328 5,324 4,513 4,032 3,560 2,851 2,323 1,716 987 706
1.70V 6,043 5,092 4,400 3,903 3,455 2,805 2,280 1,698 980 704
1.75V 5,511 4,666 4,144 3,627 3,284 2,691 2,193 1,650 966 691
1.80V 4,800 4,245 3,762 3,331 3,058 2,498 2,056 1,571 931 666
1.85V 4,161 3,801 3,315 3,010 2,789 2,208 1,862 1,453 874 625
CSB-manufactured
VRLA batteries are UL-
recognized components
under UL1989.
CSB is also certified by
ISO 9001 and ISO 14001.
RA1310
Ratings presented herein are subject to revision without notice. Please refer to www.csb-battery.com to confirm the latest version.
