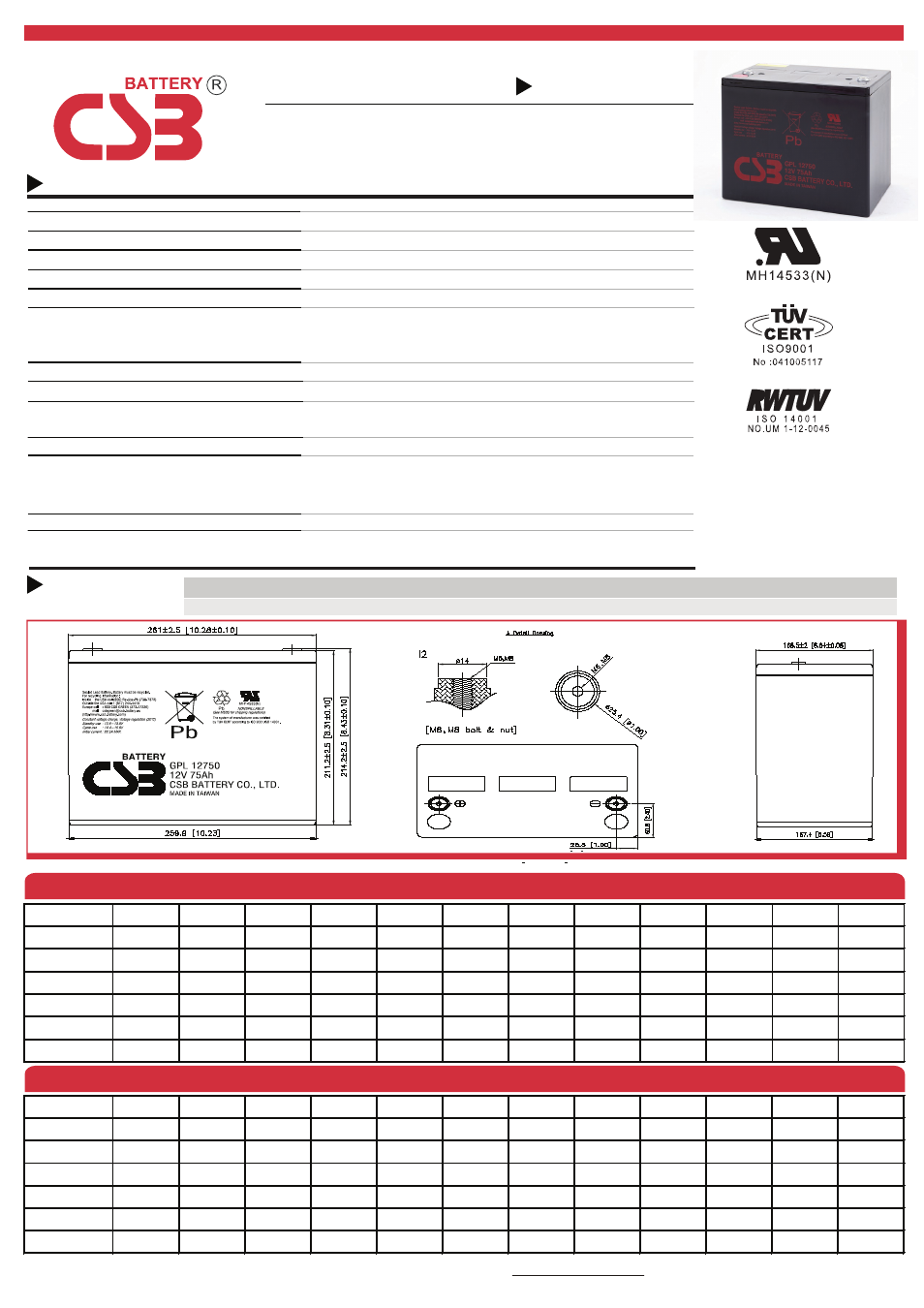

CSB Battery GPL12750 User Manual
12v 75ah, Powered by
I2-Thread lead alloy recessed terminal to accept M6/M8 bolt
Polypropylene(UL 94-HB) & Flammability resistance
of (UL 94-V0) can be available upon request.
Cells Per Unit
6
Voltage Per Unit
12
Capacity
75 Ah @ 20hr-rate to 1.75V per cell
Weight
Approx. 25.6 kg(56.44 lbs)
Maximum Discharge Current
800A(5sec)
Internal Resistance
Approx. 4.5 mΩ
Operating Temperature Range
Nominal Operating Temperature Range
Float Charging Voltage
Recommended Maximum Charging
22.5 A
Current Limit
Equalization and Cycle Service
14.4 to 15.0 VDC/unit Average at
Self Discharge
CSB Batteries can be stored for more than 6 months at
25°C (77°F). Please charge batteries before using . For
higher temperatures the time interval will be shorter.
Terminal
Container Material
Discharge:
Charge:
Storage:
Constant Current Discharge Characteristics Unit:A (25°C,77°F)
GPL 12750
12V 75Ah
Specification
Powered by
GPL 12750 is a general purpose battery up to 10 years in standby
service or more than 260 cycles at 100% discharge in cycle
service . As with all CSB batteries, all are rechargeable , highly
efficient , leak proof and maintenance free.
13.5 to 13.8 VDC/unit Average at
Width (W)
Dimensions :
Unit: mm (inch)
Overall Height (H)
Container height (h)
Length (L)
214.2±2.5 (8.43±0.1)
211.2±2.5 (8.31±0.1)
261±2.5 (10.28±0.1)
168.5±2 (6.63±0.08)
CSB-manufactured
VRLA
batteries are UL-
recognized components
under UL1989.
CSB is also certified by
ISO 9001 and ISO 14001.
Constant Power Discharge Characteristics Unit:W (25°C,77°F)
@25°C (77°F)
25°C (77°F)
25°C (77°F)
-15°C~50°C ( 5°F~122°F)
-15°C~40°C ( 5°F~104°F)
-15°C~40°C ( 5°F~104°F)
25°C±3°C (77°F±5°F)
F.V/Time
5MIN
10MIN
15MIN
30MIN
60MIN
90MIN
2HR
3HR
5HR
8HR
10HR
20HR
1.60V
298
198
149
87.5
53.5
38.8
30.9
21.9
14.5
9.51
7.85
4.15
1.67V
274
191
146
86.7
53.2
38.6
30.7
21.7
14.4
9.40
7.78
4.13
1.70V
265
187
144
86.1
52.4
38.1
30.5
21.5
14.3
9.34
7.76
4.11
1.75V
234
170
139
84.4
51.4
37.4
29.9
21.4
14.1
9.32
7.63
4.04
1.80V
210
158
131
81.9
50.2
36.8
29.5
21.0
13.8
9.17
7.55
3.97
1.85V
183
145
118
77.0
47.5
34.9
28.1
20.3
13.5
8.88
7.26
3.82
F.V/Time
5MIN
10MIN
15MIN
30MIN
60MIN
90MIN
2HR
3HR
5HR
8HR
10HR
20HR
1.60V
3013
2127
1654
1003
614
456
370
261
173
116
93.5
49.7
1.67V
2818
2060
1635
996
612
452
365
260
172
115
92.9
49.4
1.70V
2729
2022
1609
994
610
450
363
259
171
114
92.7
49.3
1.75V
2553
1927
1558
976
603
447
361
257
170
113
92.3
49.0
1.80V
2371
1815
1478
949
592
440
356
254
168
111
91.0
48.7
1.85V
2075
1667
1348
904
572
422
341
245
162
107
87.5
47.1
RA1308
Ratings presented herein are subject to revision without notice. Please refer to www.csb-battery.com to confirm the latest version.
